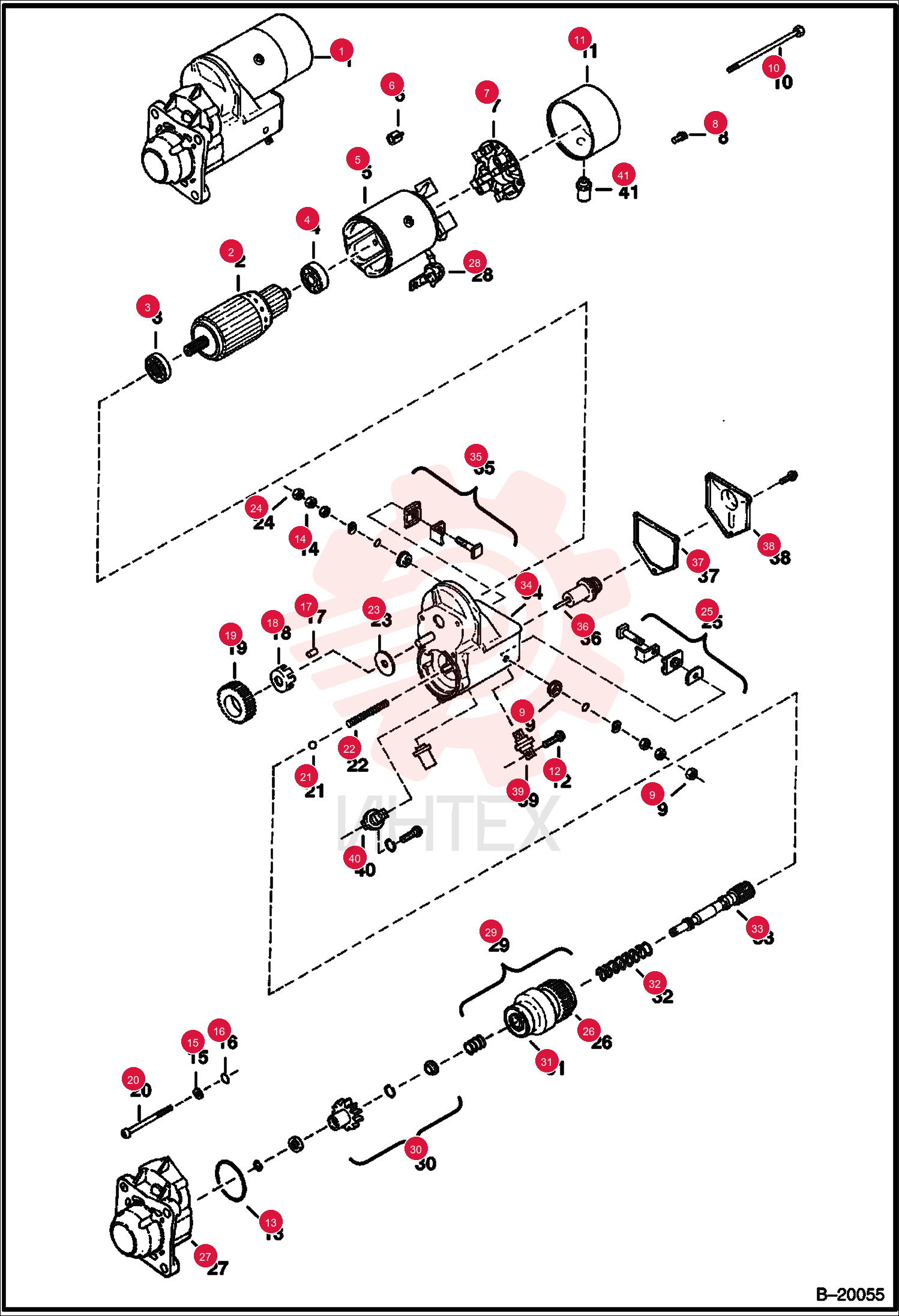

STARTER 6665654REM

STARTER 6665654REM

STARTER 6665654REM

1 6665654REM

  • 6665654REM - STARTER

2 6666621

  • 6666621 - ARMATURE
  • W/Ref. 3 & 4

3 6632417

  • 6632417 - BEARING

4 6632418

  • 6632418 - BEARING

5 6671128

  • 6671128 - BEARING

6 6671129

  • 6671129 - BEARING

7 6632419

  • 6632419 - HSG ASY

8 6632421

  • 6632421 - SPRING

9 6632420

  • 6632420 - HOLDER
  • BRUSH
  • W/Ref. 6

10 6666634

  • 6666634 - BOLT
  • 5mm x 9
  • 4 mm

11 6666637

  • 6666637 - NUT

12 6666636

  • 6666636 - BOLT
  • 6mm x 181mm

13 6671975

  • 6671975 - FRAME

14 6666635

  • 6666635 - BOLT
  • 5mm x 8mm

15 6666632

  • 6666632 - O-RING

16 6666630

  • 6666630 - WASHER
  • 10mm

17 6666631

  • 6666631 - O-RING

18 6632430

  • 6632430 - ROLLER

19 6632429

  • 6632429 - RETAINER

20 6632428

  • 6632428 - PINION

21 6666633

  • 6666633 - BOLT
  • 6mm x 50mm

22 6632435

  • 6632435 - BALL

23 6632436

  • 6632436 - SPRING

24 6662437

  • 6662437 - WASHER

25 6666628

  • 6666628 - NUT
  • 10mm

26 6671117

  • 6671117 - KIT
  • TERMINAL
  • Was 6671974

27 6666622

  • 6666622 - CLUTCH

28 6671972

  • 6671972 - HOUSING

29 6669365

  • 6669365 - BOOT

30 6669350

  • 6669350 - STARTR KT

31 6632441

  • 6632441 - SPRING

32 6669354

  • 6669354 - SHAFT

33 6671973

  • 6671973 - SWITCH

34 6671116

  • 6671116 - KIT
  • TERMINAL

35 6632432

  • 6632432 - PLUNGER

36 6632433

  • 6632433 - GASKET

37 6632434

  • 6632434 - COVER

38 6669359

  • 6669359 - BOLT

39 6669360

  • 6669360 - BUSHING

40 6669372

  • 6669372 - COVER
