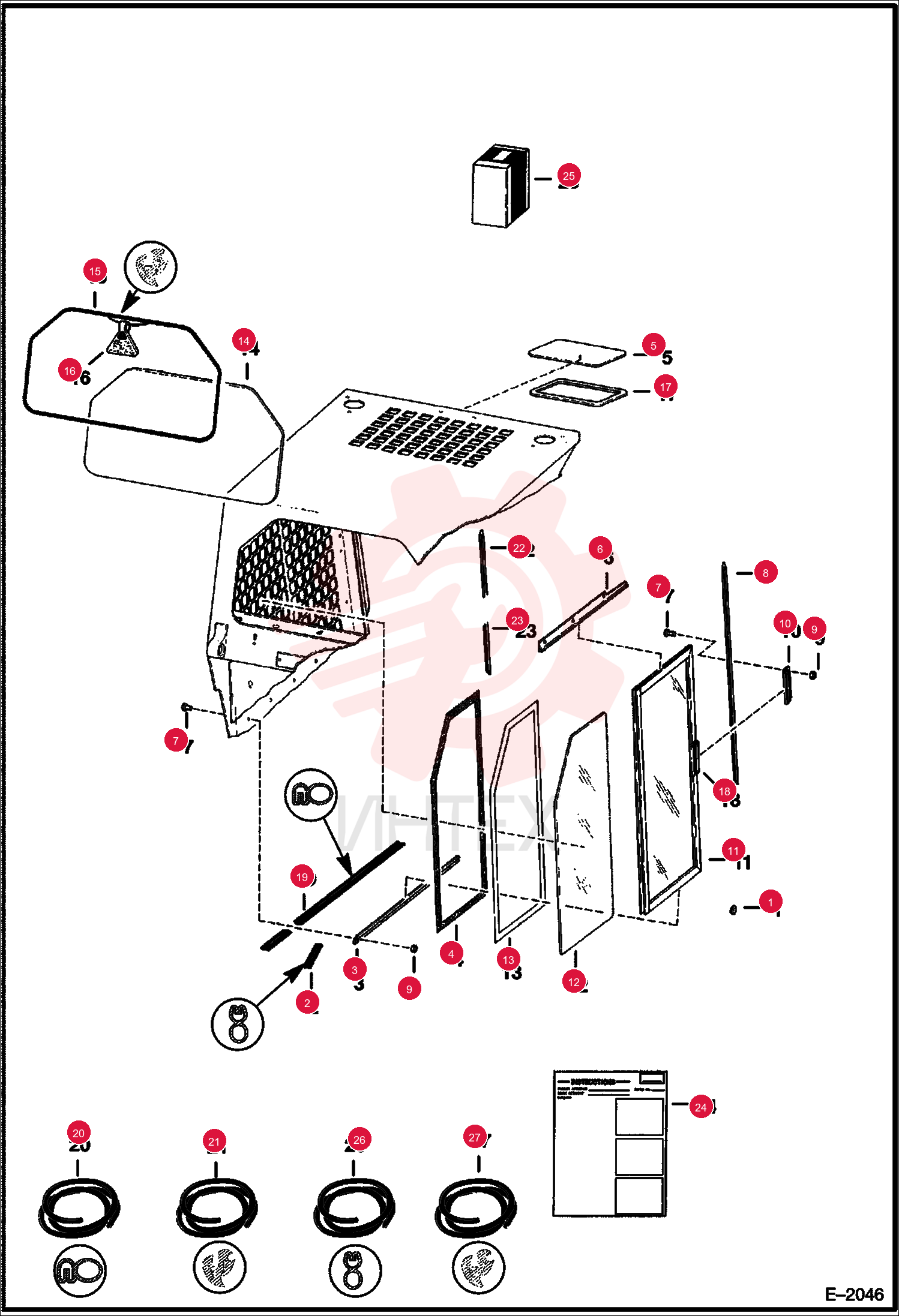

TRACK WINDOW 6661689 (2)

TRACK WINDOW 6661689 (2)

TRACK WINDOW 6661689 (2)

1 6661689

  • 6661689 - TRACK WINDOW
  • LH

2 6661690

  • 6661690 - TRACK WINDOW
  • RH

3 6631549

  • 6631549 - HOOK SCOTCHMATE
  • scotchmate

4 6705735

  • 6705735 - WINDOW TOP CAB
  • Use W/Ref. 17 - 8.6" x 15.5" (218
  • 4 mm x 393
  • 7 mm) opening in cab

5 6703160

  • 6703160 - TRACK WINDOW
  • LH

6 6703159

  • 6703159 - TRACK WINDOW
  • RH

7 35C410

  • 35C410 - SCREW HEX HD W/F GR5

8 6630919

  • 6630919 - TRACK
  • R.H.

9 6630918

  • 6630918 - BRACKET
  • L.H.

10 83D4

  • 83D4 - LKNUT HEX FLG GR8

11 6630924

  • 6630924 - BRACKET

12 6658142

  • 6658142 - WINDOW
  • RH - W/felt

13 6658143

  • 6658143 - WINDOW
  • LH - W/felt

14 6702731

  • 6702731 - WINDOW CAB

15 6631548

  • 6631548 - LOOP SCOTCHMATE
  • scotchmate

16 6729730

  • 6729730 - WINDOW
  • CAB REAR
  • rear - 14.4 in. x 26.84 in.

17 6731478

  • 6731478 - TAG EXIT
  • Was 6559515

18 6664351

  • 6664351 - MOULDING
  • Use W/cab headliner

19 6665012

  • 6665012 - SEAL RUBBER
  • Use W/O cab headliner

20 6659949

  • 6659949 - LATCH

21 6555351

  • 6555351 - SEAL BULK/FT 15
  • bulk - sold per foot

22 6665568

  • 6665568 - SEAL BULK
  • bulk - sold per foot - Use W/Ref. 14 (NLA/6701651 window) - Was 6658352

23 6554149

  • 6554149 - CORD
  • bulk - sold per foot

24 6706744

  • 6706744 - TRACK WINDOW
  • LH - top half

25 6706745

  • 6706745 - TRACK WINDOW
  • LH - bottom half

26 6720598

  • 6720598 - INSTRUCTIONS
  • top window

27 6720320

  • 6720320 - INSTRUCTIONS
  • rear window

28 6566957ENUS

  • 6566957ENUS - INSTRUCTIONS
  • Side Windows - Was 6566957

29 6706993

  • 6706993 - KIT
  • WINDOW SIDE
  • SALES #6706993 - Side Window

30 6702953

  • 6702953 - KIT
  • TOP WINDOW
  • SALES #6702953 - Top Window

31 6701514

  • 6701514 - KIT
  • REAR WINDOW
  • SALES #6701514 - Rear Window

32 6513152

  • 6513152 - SEAL
  • BULK/FT 25
  • bulk - sold per foot

33 6675387

  • 6675387 - SEAL BULK
  • bulk - sold per foot - Use W/Ref. 14 (6729730 window)

34 6554149

  • 6554149 - CORD
  • bulk - sold per foot
