Bobcat
/
751.0
/

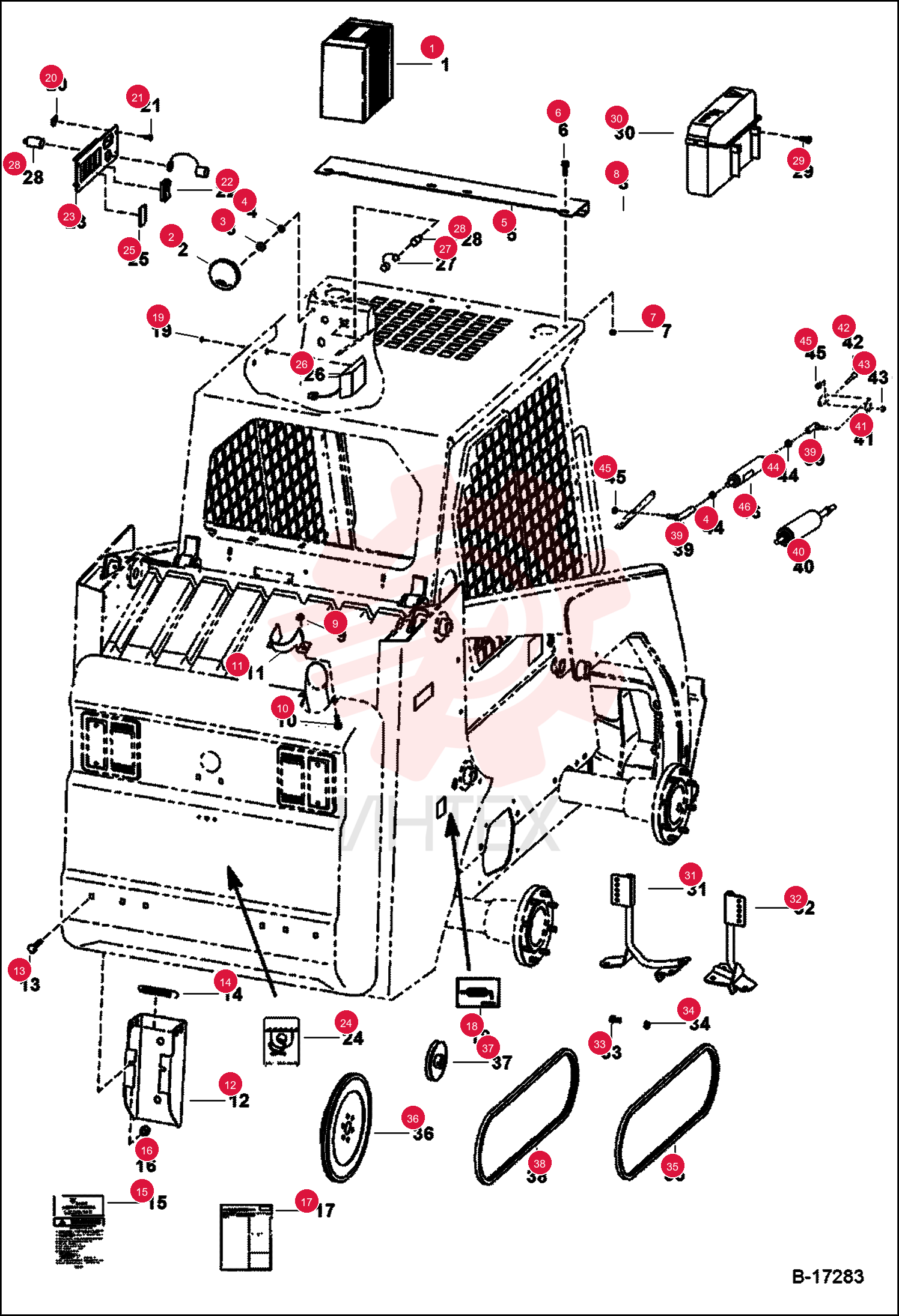

MIRROR 6653388 (1)

MIRROR 6653388 (1)

MIRROR 6653388 (1)

1 6653388

  • 6653388 - MIRROR
  • convex

2 6518952

  • 6518952 - WASHER
  • .26 in. I.D. - 1 in. O.D.

3 25E13

  • 25E13 - WASHER FLAT PLAIN
  • .25 in. I.D. - .75 in. O.D.

4 6701852

  • 6701852 - SHIELD

5 35C616

  • 35C616 - SCREW FLGD HEX CAP

6 61D6

  • 61D6 - NUT HEX FINISHED GR5

7 61D5

  • 61D5 - NUT HEX FINISHED GR5

8 37C512

  • 37C512 - BOLT SQ NECK RND HD

9 6714624

  • 6714624 - SHIELD
  • exhaust

10 6715318

  • 6715318 - TOOL HLDR
  • Was 6714064

11 37C612

  • 37C612 - BOLT

12 6700743

  • 6700743 - SPRING

13 6708155

  • 6708155 - KIT
  • HANDBOOK
  • handbook

14 55D6

  • 55D6 - NUT

15 6722300

  • 6722300 - INSTRUCTIONS
  • For Ref. 12-14

16 6705340

  • 6705340 - DECAL
  • GREASE

17 6664221

  • 6664221 - RETAINER
  • snap in

18 6669091

  • 6669091 - CLIP

19 6669224

  • 6669224 - TAP SCREW

20 6668742

  • 6668742 - SWITCH
  • TRVL CONTROL
  • travel control

21 6665315

  • 6665315 - SWITCH HEAD LIGHT
  • head light

22 6710527

  • 6710527 - PANEL

23 6595014

  • 6595014 - DECAL
  • tow hook - Was 6707867

24 6665314

  • 6665314 - PLUG ROCKER SW
  • Was 6719038

25 7249162

  • 7249162 - LIGHT ASSY DOME LED
  • Was 6680326

26 6665367

  • 6665367 - BULB
  • Use W/NAP/6680326 dome light

27 6665353

  • 6665353 - SWITCH

28 6664224

  • 6664224 - CAP

29 6664223

  • 6664223 - OUTLET ELECTRICAL

30 6702642

  • 6702642 - SCREW WSHRD PLASTITE

31 6708827

  • 6708827 - CONTAINER MANUAL

32 6712985

  • 6712985 - MIRROR MT
  • mirror - Japan

33 6712987

  • 6712987 - MIRROR MT
  • mirror - Japan

34 35C512

  • 35C512 - SCREW FLGD HEX CAP
  • Japan

35 83D5

  • 83D5 - LKNUT HEX FLG GR8

36 6672445

  • 6672445 - BELT
  • DRIVE
  • pump drive

37 6510470

  • 6510470 - ВЕНЕЦ МАХОВИКА
  • BOBCAT

38 RG60000

  • RG60000 - ВЕНЕЦ МАХОВИКА
  • AUTOWELT

39 6715166

  • 6715166 - FLYWHEEL
  • W/Ring gear

40 6712970

  • 6712970 - PULLEY
  • fan drive - 4.75" (120
  • 65 mm) O.D.

41 6715478

  • 6715478 - BELT
  • FAN
  • 1016 mm (40") long

42 6599744

  • 6599744 - BALL JOINT

43 6706106

  • 6706106 - MOUNT

44 17C612

  • 17C612 - SCREW HEX CAP

45 62D6

  • 62D6 - NUT HEX FINISHED GR5

46 86D6

  • 86D6 - NUT

47 95D6

  • 95D6 - NUT HEXAGON
  • 91D000006B

48 7188108

  • 7188108 - GAS SPRING
