Bobcat
/
751.0
/

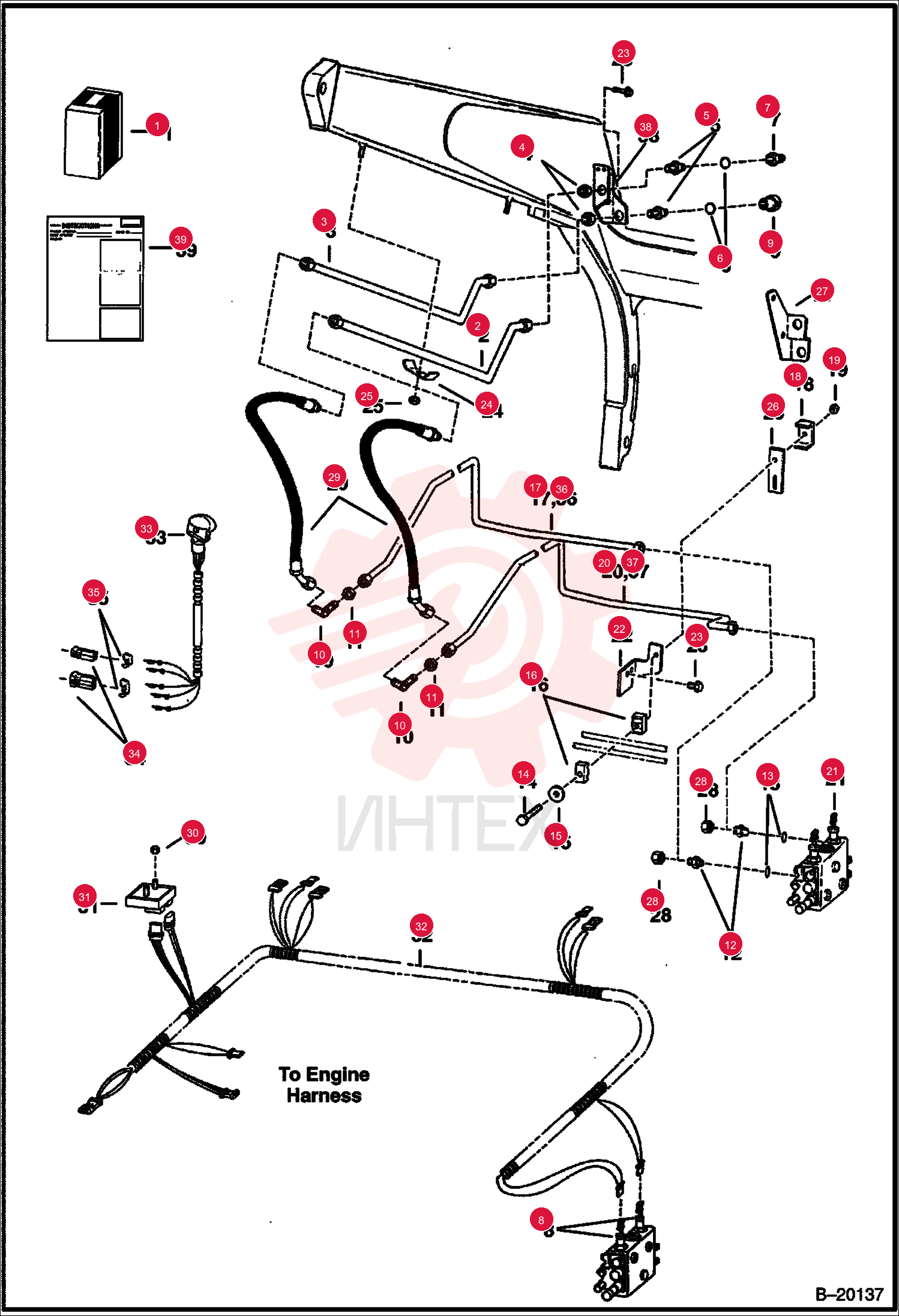

TUBE 6711735 (2)

TUBE 6711735 (2)

TUBE 6711735 (2)

1 6711735

  • 6711735 - TUBE

2 6711736

  • 6711736 - TUBE

3 86F7

  • 86F7 - NUT 5

4 6812816

  • 6812816 - ADAPTER
  • W/Ref. 6 - Flat Boss Face

5 79K12

  • 79K12 - O RING 10
  • Was 79K000010B

6 7246777

  • 7246777 - COUPLER
  • FF MALE
  • - straight - Was 6674688

7 7246777EF

  • 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE

8 6665797

  • 6665797 - FITTNG 10
  • not in kit

9 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

10 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - straight - Was 6672960

11 46K8

  • 46K8 - ELBOW

12 86F8

  • 86F8 - NUT 5

13 15K8

  • 15K8 - FITTING
  • W/Ref. 13 - not in kit

14 79K12

  • 79K12 - O RING 10

15 17C552

  • 17C552 - BOLT

16 872229

  • 872229 - WASHER

17 6592506

  • 6592506 - CLAMP

18 6568476

  • 6568476 - #12 CLAMP

19 85D5

  • 85D5 - NUT PRETRQ HEX LOCK
  • not in kit

20 6704619

  • 6704619 - MOUNT
  • not in kit

21 84G3112

  • 84G3112 - SCREW THD ROLLING TT
  • not in kit

22 6502203

  • 6502203 - CLAMP

23 59D6

  • 59D6 - NUT LOCK HEX PT

24 6702548

  • 6702548 - PAD

25 36K8

  • 36K8 - CAP

26 6729153

  • 6729153 - HOSE
  • Was 6714577

27 85D4

  • 85D4 - NUT 5

28 6671669

  • 6671669 - MODULE
  • CONTROL AUX
  • Was 6669529

29 6710365

  • 6710365 - HARNESS

30 6680414

  • 6680414 - HANDLE
  • SWITCH
  • Was 6705921

31 6640690

  • 6640690 - PIN

32 6641176

  • 6641176 - SEAL

33 6641179

  • 6641179 - CONNECTOR METRI PACK
  • 2-pin

34 6640699

  • 6640699 - CONNECTOR METRI PACK
  • 3-pin

35 6640700

  • 6640700 - LOCK METRI PACK
  • 3-pin

36 6641180

  • 6641180 - LOCK METRI PACK
  • Use W/ 2-pin connector

37 6713754

  • 6713754 - TUBE

38 6713755

  • 6713755 - TUBE

39 6713850

  • 6713850 - MOUNT COU

40 6724529

  • 6724529 - INSTRUCTIONS
  • Was 6724525
