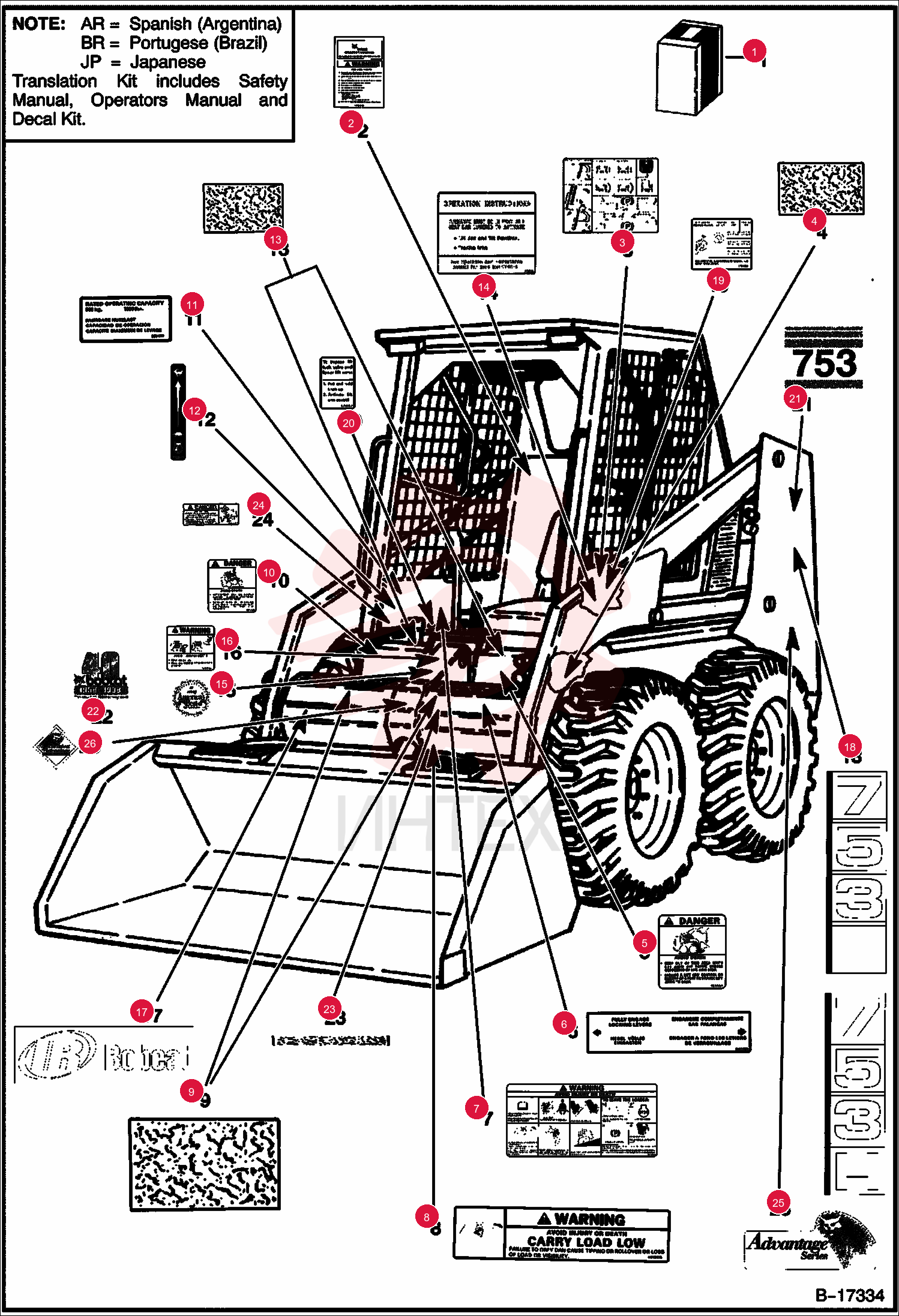

KIT, TRANSLATION 6716211BR (2)

KIT, TRANSLATION 6716211BR (2)

KIT, TRANSLATION 6716211BR (2)

1 6716211BR

  • 6716211BR - KIT
  • TRANSLATION
  • translation - SEE NOTE

2 6716211AR

  • 6716211AR - KIT
  • TRANSLATION
  • translation - SEE NOTE

3 6716210JP

  • 6716210JP - KIT
  • DECAL
  • decal - SEE NOTE

4 6716210BR

  • 6716210BR - KIT
  • DECAL
  • decal - SEE NOTE

5 6716210AR

  • 6716210AR - KIT
  • DECAL
  • decal - SEE NOTE

6 6900501

  • 6900501 - KIT
  • DECAL
  • decal

7 6708154ES

  • 6708154ES - OHB
  • W/WIRE ROPE ESAR
  • handbook - Wire Rope - Spanish

8 6708154

  • 6708154 - OHB
  • W/WIRE ROPE
  • Was 6704831

9 6558309

  • 6558309 - CABLE BULK/FT
  • bulk - sold per foot - Also Order (2) of 6558310 sleeve

10 6558310

  • 6558310 - SLEEVE
  • wire rope

11 17C512

  • 17C512 - BOLT 5

12 61D5

  • 61D5 - NUT HEX FINISHED GR5

13 6703723

  • 6703723 - DECAL
  • WARNING
  • operating

14 6554100

  • 6554100 - TREAD
  • SAFETY
  • 76
  • 2 x 152
  • 4 mm (3 x 6")

15 6579639

  • 6579639 - DECAL
  • WARNING
  • danger

16 6561383

  • 6561383 - DECAL
  • OPERATION 5
  • Bob-Tach locking levers

17 6579510

  • 6579510 - DECAL
  • WARNING
  • warning

18 6579528

  • 6579528 - DECAL
  • WARNING
  • carry load low

19 6577947

  • 6577947 - TREAD
  • SAFETY
  • 190
  • 5 x 381 mm (7.5 x 15")

20 6579509

  • 6579509 - DECAL
  • WARNING
  • danger

21 6714919

  • 6714919 - DECAL
  • capacity - 753 - Was 6561377

22 6703586

  • 6703586 - DECAL
  • capacity - 753H

23 6735140

  • 6735140 - DECAL
  • THROTTLE
  • Was 6557565

24 6577949

  • 6577949 - TREAD
  • SAFETY
  • 6.8" x 8.75" - (172
  • 7 mm x 222
  • 3 mm)

25 6717639

  • 6717639 - DECAL
  • seat bar operating - W/O seat sensor - AHC

26 6707255

  • 6707255 - DECAL
  • seat bar operating - W/seat sensor - Was NLA

27 6727926

  • 6727926 - DECAL
  • OPERATION
  • hand & foot controls - not in kit - Was 6718703

28 6705088

  • 6705088 - DECAL
  • America's Best

29 6710358

  • 6710358 - DECAL
  • WARNING
  • warning

30 6702825

  • 6702825 - DECAL
  • model no. - 753 - L.H.

31 6705362

  • 6705362 - DECAL
  • model no. - 753H - L.H. - Not in Kit

32 6708105

  • 6708105 - DECAL
  • pre heat - Not in Kit - Was 6705712

33 6706809

  • 6706809 - DECAL
  • INSTRUCTIONS
  • lift lock

34 6711840

  • 6711840 - DECAL
  • lift lock

35 6714532

  • 6714532 - DECAL
  • model

36 6715912

  • 6715912 - DECAL
  • 40th anniversary

37 6727917

  • 6727917 - TREAD SAFETY
  • 32 x 267 mm (1.25 x 10.5")

38 6710746

  • 6710746 - TREAD
  • SAFETY
  • 1.25" x 15" (31
  • 8 mm x 381
  • 0 mm)

39 6717343

  • 6717343 - DECAL
  • DANGER

40 6718271

  • 6718271 - DECAL
  • advantage series - L.H. - Not in Kit

41 6718275

  • 6718275 - DECAL
  • Bobcat advantage
