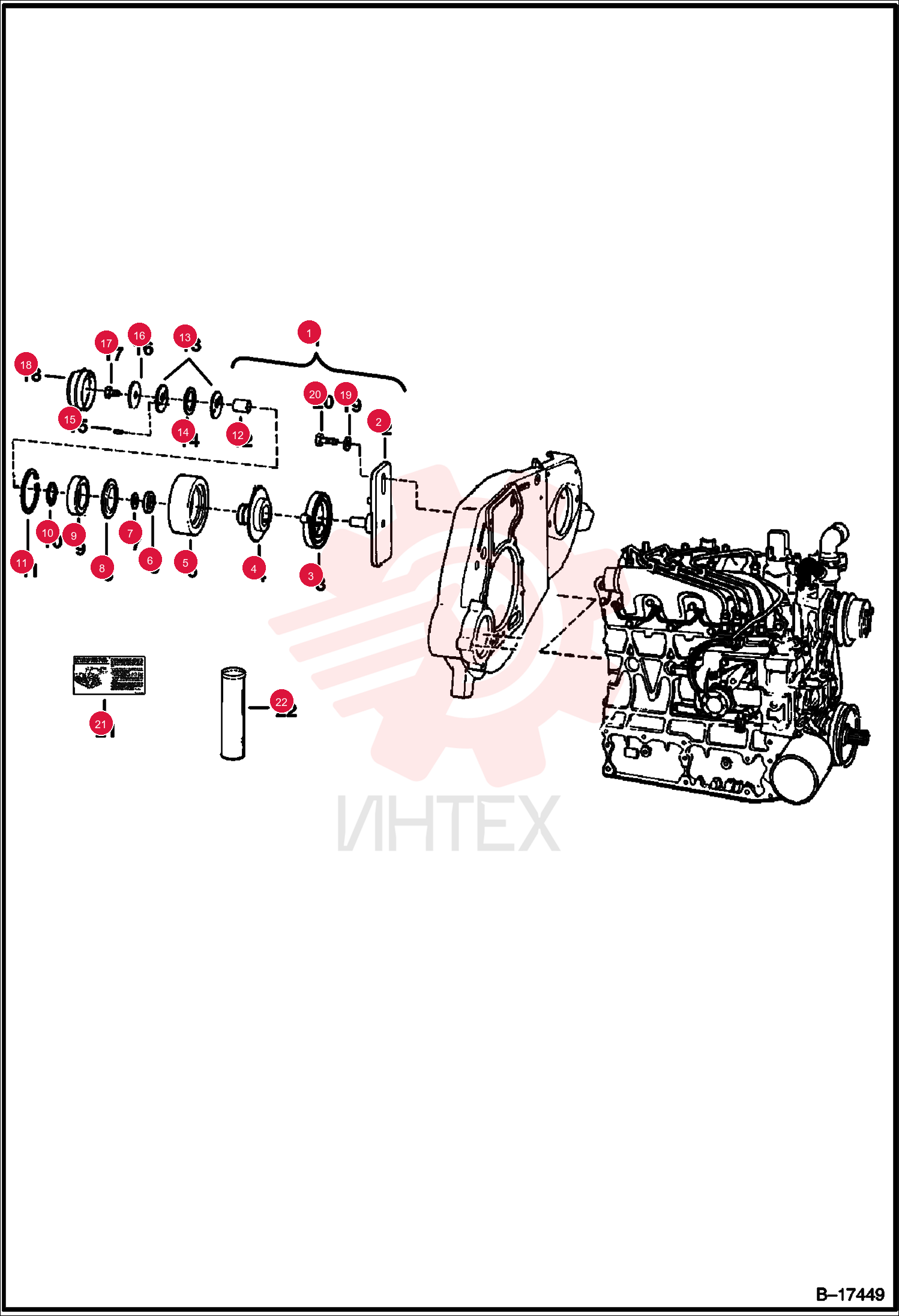

PULLEY, PUMP HYD IDLER 6714212
1 6714212
- 6714212 - PULLEY
- PUMP HYD IDLER
- Ref. 4 - 12
2 6735883
- 6735883 - BRACKET
- Was 6708767
3 6705491
- 6705491 - SPRING
- torsion
4 6711699
- 6711699 - HUB ASSEMBLY
5 6704391
- 6704391 - PULLEY
- idler
6 6685735
- 6685735 - SEAL
- Was 6661112
7 6703168
- 6703168 - BEARING
- thrust
8 6664209
- 6664209 - SEAL
9 6668114
- 6668114 - BEARING
- ball
10 6658536
- 6658536 - RING
- SNAP
11 6658847
- 6658847 - RING
- SNAP
12 6682442
- 6682442 - BEARING
- bronze sleeve - Was 6704393
13 6705231
- 6705231 - WASHER
14 6710585
- 6710585 - WASHER
- wave spring
15 6713370
- 6713370 - PIN
- ROLL
- Was 14J001808B
16 6705232
- 6705232 - WASHER
17 43C610
- 43C610 - SCREW HEX CAP
- pre-applied thread locker - Was 17C610
18 6708770
- 6708770 - CAP
- DUST
- dust
19 6704484
- 6704484 - WASHER
- thrust
20 17C620
- 17C620 - BOLT
21 6709030
- 6709030 - DECAL
- belt tension - When converting from a fixed idler to a spring loaded idler assy.
- Also Order Ref. 21 - Was 6711905
22 6903122
- 6903122 - GREASE
- MULTI PURPOSE
- Use W/Ref. 1 - Was 6599719
