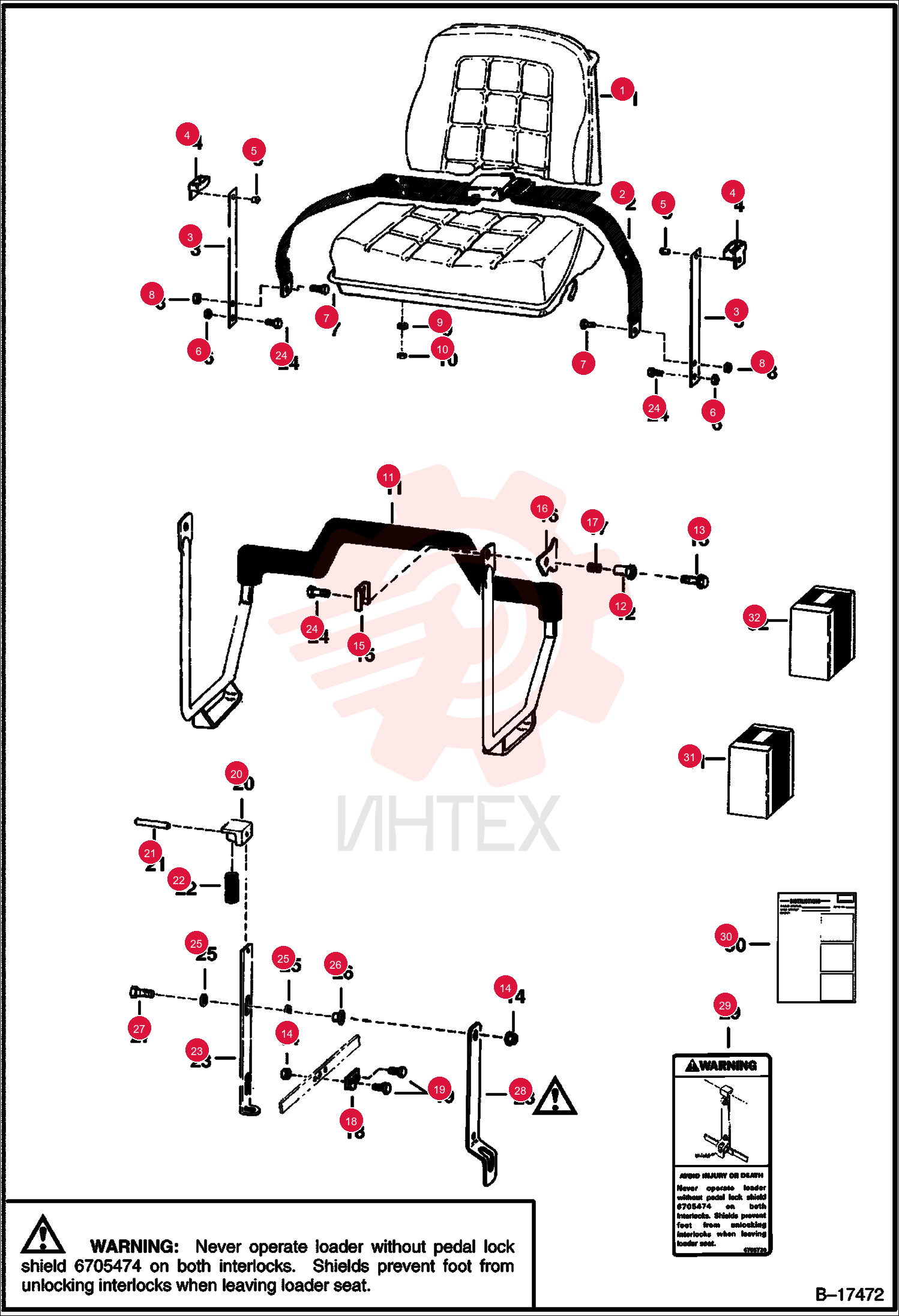

SPNG PLATE 6711908
1 6711908
- 6711908 - SPNG PLATE
- Use W/Ref. 2 (6725403 Seat Belt)
2 6630207
- 6630207 - RIVET POP
3 85D6
- 85D6 - NUT PRETRQ HEX LOCK
4 17C716
- 17C716 - BOLT
5 85D7
- 85D7 - NUT PRETRQ HEX LOCK
6 4E5
- 4E5 - WASHER
7 61D5
- 61D5 - NUT HEX FINISHED GR5
8 6706324
- 6706324 - ARM
- SEAT BAR
- Was 6703301
9 6568742
- 6568742 - BUSHING
10 35C608
- 35C608 - BOLT
11 83D6
- 83D6 - LKNUT HEX FLG GR8
12 6563557
- 6563557 - WASHER
13 6563313
- 6563313 - RETAINER
14 6704453
- 6704453 - SPRING COMPRESSION
- Was 6578252
15 6563151
- 6563151 - LINK
16 17C616
- 17C616 - BOLT 5
17 6563148
- 6563148 - BLOCK
- SPRING
18 14J2512
- 14J2512 - PIN 5
19 6702430
- 6702430 - SPRING
- COMPRESSION
- Was 6563149
20 6578150
- 6578150 - LOCK
- Was 6563150
21 17C612
- 17C612 - SCREW HEX CAP
22 6700170
- 6700170 - WASHER
- plastic - Was 6563152
23 6559479
- 6559479 - NUT RETAINING
24 6705489
- 6705489 - BOLT
25 6705474
- 6705474 - LOCK SHLD
- Never operate loader without pedal lock shield on both interlocks ... SEE WARNING PREVIOUS PAGE
26 6705720
- 6705720 - DECAL
- Was 6705488
27 6722392
- 6722392 - INSTRUCTIONS
- For Ref. 28
28 6706796
- 6706796 - KIT
- SEAT BAR
- gas spring seat bar
