Bobcat
/
843.0
/

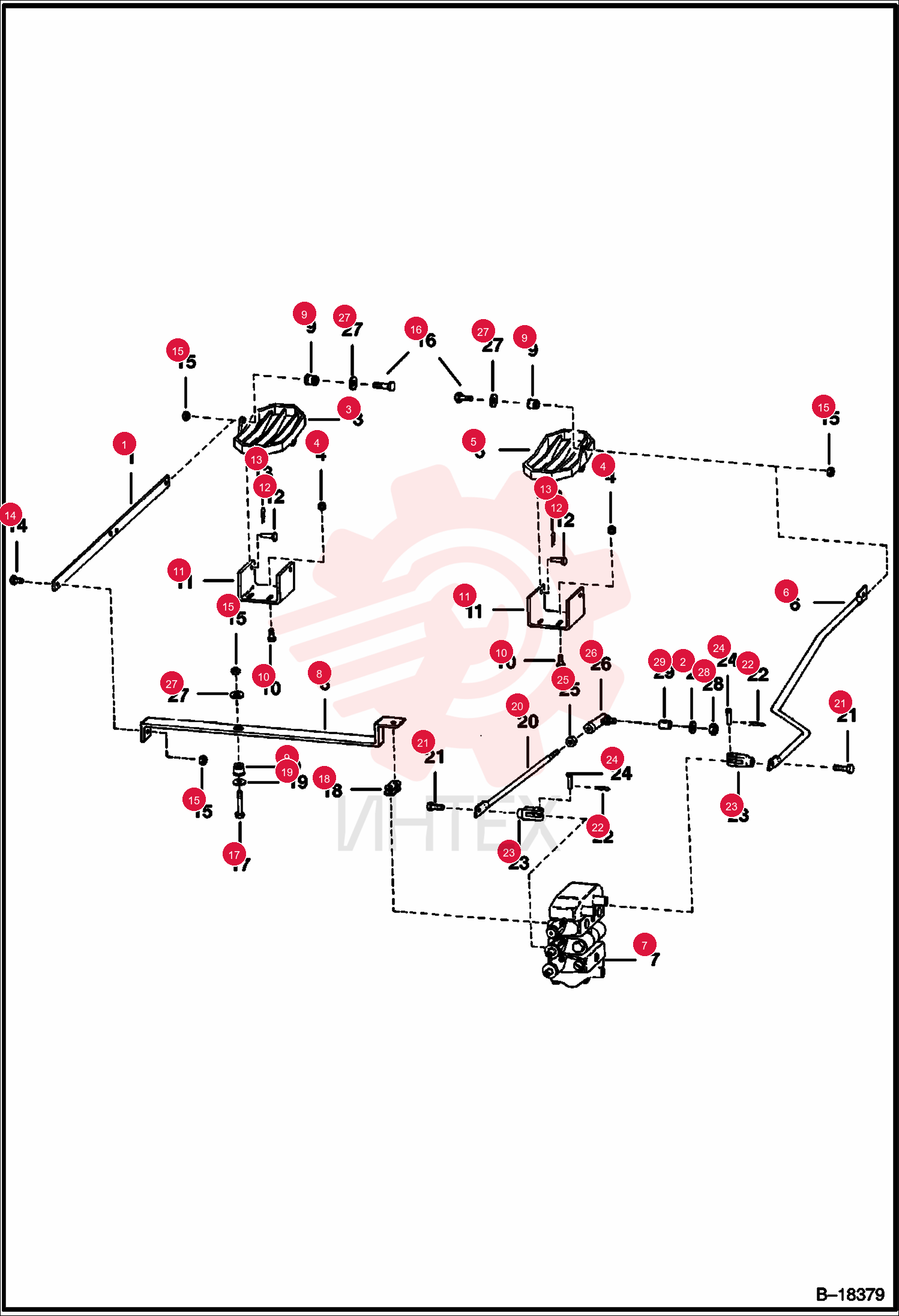

LINKAGE 6563159 (2)

LINKAGE 6563159 (2)

LINKAGE 6563159 (2)

1 6563159

  • 6563159 - LINKAGE

2 6557831

  • 6557831 - WASHER CONTROLS

3 7115219

  • 7115219 - PEDAL
  • Was 6558451

4 57D6

  • 57D6 - NUT HEX FLNG GR8

5 7115219

  • 7115219 - PEDAL
  • Was 6558453

6 6563158

  • 6563158 - LINKAGE

7 6558911

  • 6558911 - BAR

8 6665701

  • 6665701 - BUSHING
  • PRESS FIT
  • Was 6630081

9 37C616

  • 37C616 - BOLT
  • Was 6704349

10 6558912

  • 6558912 - CHANNEL

11 1737762

  • 1737762 - PIN

12 1306637

  • 1306637 - PIN HAIR

13 17C616

  • 17C616 - BOLT 5

14 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

15 17C624

  • 17C624 - BOLT 5

16 1304938

  • 1304938 - BOLT

17 6515186

  • 6515186 - CONNECTOR LINK

18 25E17

  • 25E17 - WASHER FLAT PLAIN

19 6564861

  • 6564861 - ROD

20 18C616

  • 18C616 - BOLT 5

21 6513495

  • 6513495 - PIN 5

22 6560526

  • 6560526 - CLEVIS

23 6559014

  • 6559014 - PIN
  • CLEVIS

24 8D6

  • 8D6 - NUT HEX JAM

25 1301362

  • 1301362 - BALL JNT
  • ball - Was 6599953

26 6563914

  • 6563914 - WASHER

27 86D6

  • 86D6 - NUT

28 6544654

  • 6544654 - BUSHING
