843.0
/

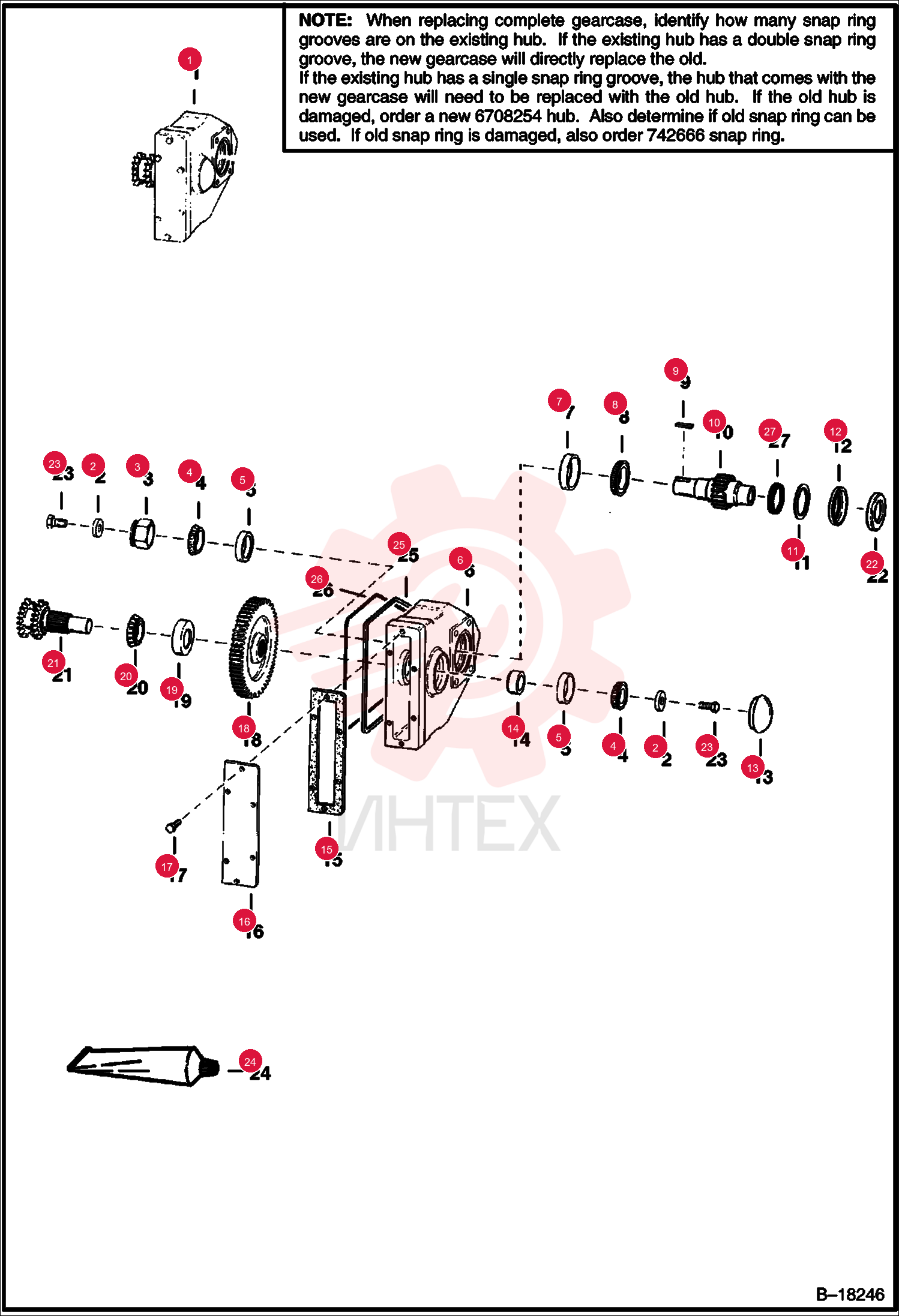

WASHER 6558234 (3)

WASHER 6558234 (3)

WASHER 6558234 (3)

1 6558234

  • 6558234 - WASHER

2 6708254

  • 6708254 - HUB
  • Was 6703055

3 6648774

  • 6648774 - BEARING
  • Was 743778B

4 6648776

  • 6648776 - RACE
  • Was 743777B

5 6563577

  • 6563577 - HOUSING

6 1320905

  • 1320905 - CUP

7 1320904

  • 1320904 - CONE

8 6708255

  • 6708255 - KEY
  • Was 7J006012B

9 6559619

  • 6559619 - WASHER
  • back-up

10 6513588

  • 6513588 - SEAL
  • OIL

11 6558276

  • 6558276 - COLLAR

12 6558273

  • 6558273 - GASKET

13 6558274

  • 6558274 - COVER

14 17C512

  • 17C512 - BOLT 5

15 6558270

  • 6558270 - GEAR
  • DRIVE

16 660181

  • 660181 - CUP

17 731284

  • 731284 - BEARING

18 6558278

  • 6558278 - SHAFT

19 6513681

  • 6513681 - BUSHING
  • bronze

20 17C1220

  • 17C1220 - BOLT

21 6561395

  • 6561395 - SEALANT
  • POLYURETHANE
  • bore tite

22 6563574

  • 6563574 - RETAINER

23 6558518

  • 6558518 - O-RING

24 6515195

  • 6515195 - SEAL
  • QUAD RING
  • quad ring
