Bobcat
/
843.0
/

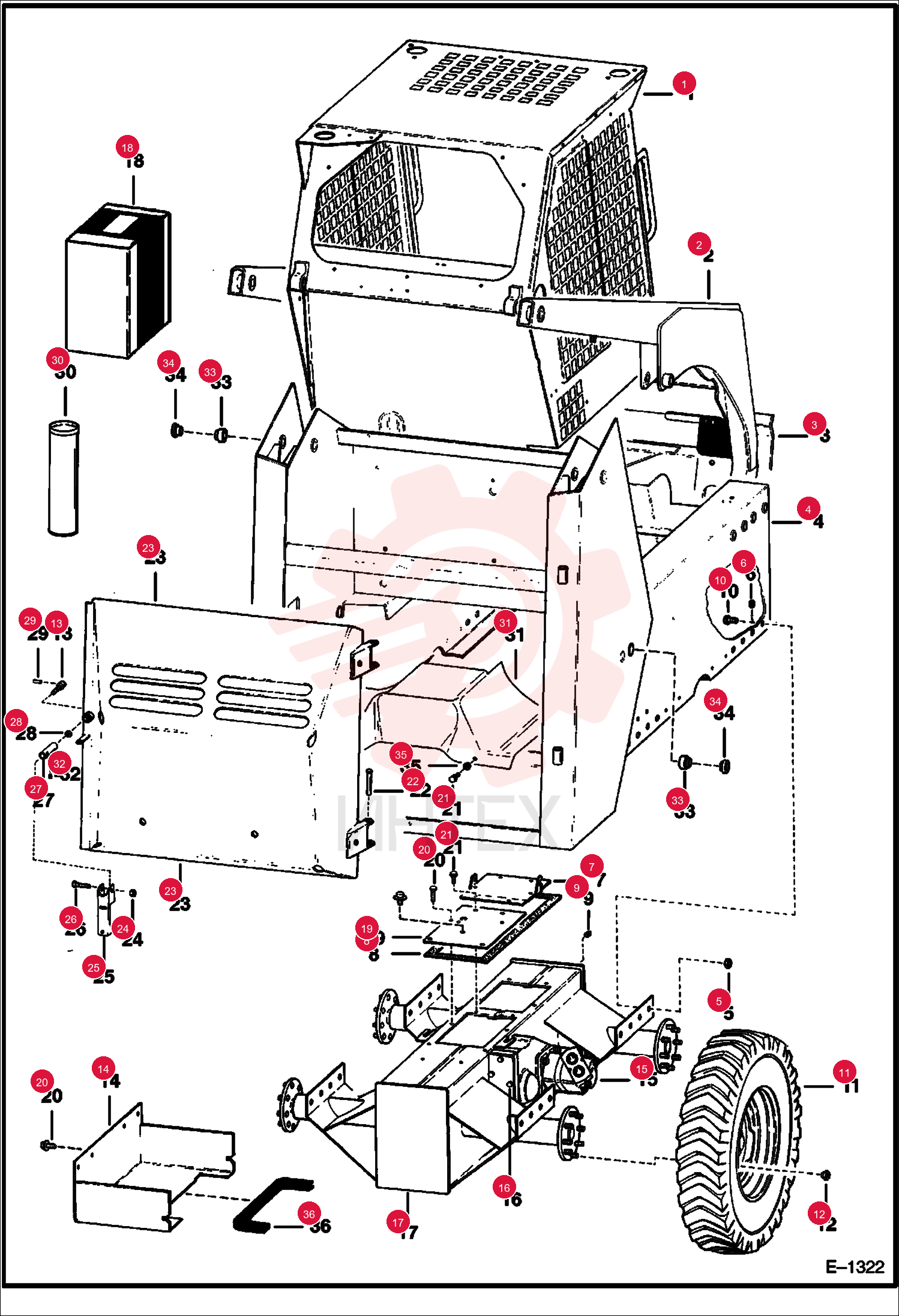

MAIN FRAME 6562183

MAIN FRAME 6562183

MAIN FRAME 6562183

1 6562183

  • 6562183 - MAIN FRAME
  • Was 6569374

2 6565729

  • 6565729 - MAIN FRAME
  • Was 6569374

3 6576709

  • 6576709 - FRAME
  • MAIN
  • Was 6569374

4 85D12

  • 85D12 - NUT
  • 5

5 6558465

  • 6558465 - WASHER
  • Not used with flange head bolt

6 6703117

  • 6703117 - GASKET
  • TRANSMISSION
  • Was 6553833

7 40K12

  • 40K12 - PLUG

8 31C1228

  • 31C1228 - BOLT
  • flange head

9 6564669

  • 6564669 - NUT WHEEL
  • wheel - Was 6519169

10 6565629

  • 6565629 - SCREW
  • fine threads

11 6565076

  • 6565076 - COVER
  • R.H.

12 6565077

  • 6565077 - COVER
  • L.H.

13 6579448

  • 6579448 - KIT
  • LATCH REAR
  • kit - Ref. 13
  • 24-29 & 32

14 6558467

  • 6558467 - COVER

15 84G3712

  • 84G3712 - SCREW THD ROLLING TT

16 84G3716

  • 84G3716 - SCREW THD ROLLING TT

17 6564340

  • 6564340 - PIN HINGE

18 6704328

  • 6704328 - TAILGATE
  • Was 6565073

19 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

20 6563681

  • 6563681 - HANDLE

21 38C624

  • 38C624 - BOLT 5
  • Was 6564599

22 6565628

  • 6565628 - NUT
  • fine threads

23 6563624

  • 6563624 - NUT JAM
  • coarse threads

24 6565627

  • 6565627 - NUT 5
  • fine threads

25 6599361

  • 6599361 - PIN 5

26 6632501

  • 6632501 - SEALANT
  • POLYURETHANE
  • Use to fill seam on top of chaincase

27 6563677

  • 6563677 - COVER
  • DUST
  • dust

28 33G404

  • 33G404 - SET SCRW5

29 6555987

  • 6555987 - BUSHING
  • weld on

30 6555989

  • 6555989 - BUSHING
  • Weld On

31 25E17

  • 25E17 - WASHER FLAT PLAIN

32 6599653

  • 6599653 - INSULATIO
  • bulk - sold per foot - Order 24"(609
  • 6 mm) Per Side
