843.0
/

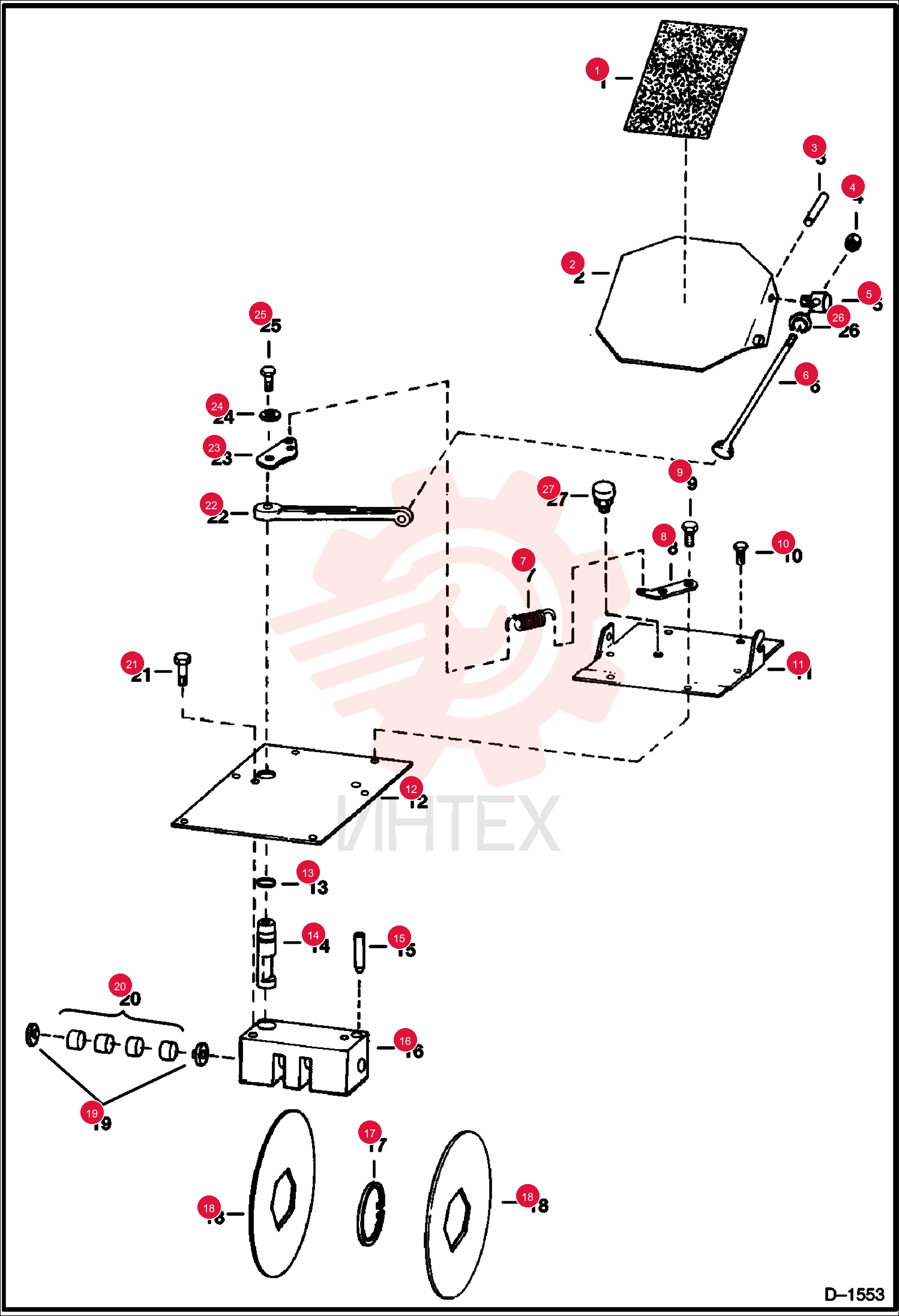

TREAD, SAFETY 6553976 (2)

TREAD, SAFETY 6553976 (2)

TREAD, SAFETY 6553976 (2)

1 6553976

  • 6553976 - TREAD
  • SAFETY
  • 127 x 203 mm (5 x 8")

2 6563187

  • 6563187 - PEDAL

3 14J2516

  • 14J2516 - PIN

4 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

5 6563178

  • 6563178 - PIVOT

6 6569601

  • 6569601 - ROD

7 6584584

  • 6584584 - SPRING
  • Was 6505076

8 6559218

  • 6559218 - ANGLE

9 84G3716

  • 84G3716 - SCREW THD ROLLING TT

10 84G3712

  • 84G3712 - SCREW THD ROLLING TT

11 6575654

  • 6575654 - PLATE
  • COVER

12 6558467

  • 6558467 - COVER

13 25K30100

  • 25K30100 - O RING 10

14 6562755

  • 6562755 - CAM PIN

15 784466

  • 784466 - DOWEL PIN

16 6562757

  • 6562757 - BLOCK BRAKE

17 742666

  • 742666 - RING
  • SNAP

18 6559237

  • 6559237 - DISC

19 6562756

  • 6562756 - WEAR WASH
  • wear

20 6557747

  • 6557747 - PUCK

21 17C812

  • 17C812 - BOLT

22 6563823

  • 6563823 - LEVER

23 6577552

  • 6577552 - LEVER
  • Was 6563173

24 6506477

  • 6506477 - WASHER

25 17C820

  • 17C820 - BOLT 5

26 61D8

  • 61D8 - NUT 5
