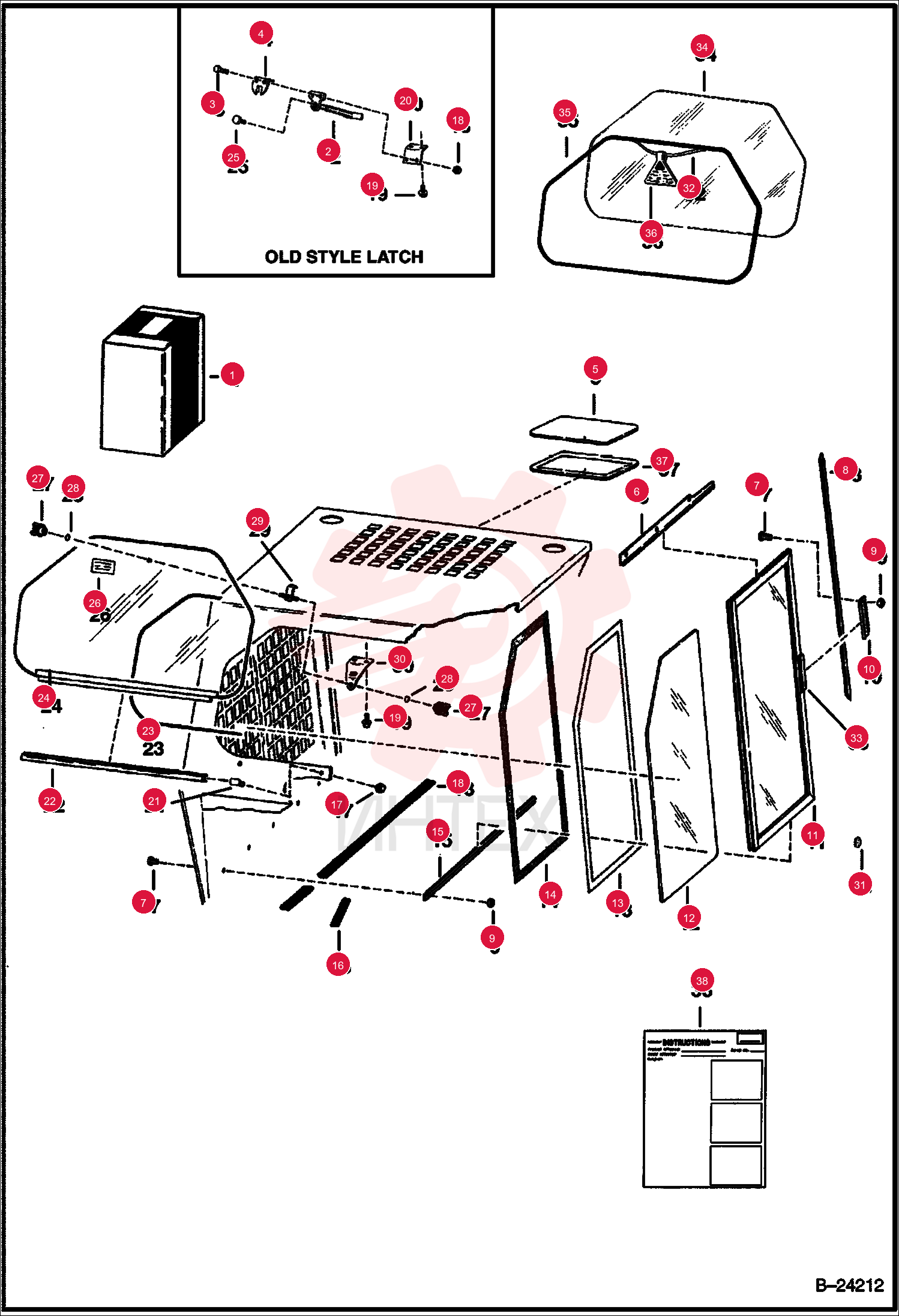

KIT, WINDOW SIDE 6706993 (1)

KIT, WINDOW SIDE 6706993 (1)

KIT, WINDOW SIDE 6706993 (1)

1 6706993

  • 6706993 - KIT
  • WINDOW SIDE
  • W/Ref. 5-17
  • 21-24
  • 26-38 - Was SALES

2 6630929

  • 6630929 - LATCH
  • W/Ref. 25

3 85G1014

  • 85G1014 - SCREW

4 6701986

  • 6701986 - WINDOW
  • TOP
  • top - not Use W/Ref. 37 - Was 6563391

5 6705735

  • 6705735 - WINDOW TOP CAB
  • top - Use W/Ref. 37

6 6703159

  • 6703159 - TRACK WINDOW
  • RH - Was 6630921

7 6703160

  • 6703160 - TRACK WINDOW
  • LH - Was 6630920

8 35C410

  • 35C410 - SCREW HEX HD W/F GR5
  • Was 25G000410B

9 6630918

  • 6630918 - BRACKET
  • L.H.

10 6630919

  • 6630919 - TRACK
  • R.H.

11 83D4

  • 83D4 - LKNUT HEX FLG GR8

12 6630924

  • 6630924 - BRACKET

13 6658143

  • 6658143 - WINDOW
  • LH - W/felt - Was 6630922

14 6658142

  • 6658142 - WINDOW
  • RH - W/felt - Was 6630923

15 6702731

  • 6702731 - WINDOW CAB
  • Was 6567750

16 6631548

  • 6631548 - LOOP SCOTCHMATE
  • scotchmate

17 6631549

  • 6631549 - HOOK SCOTCHMATE
  • scotchmate

18 6661689

  • 6661689 - TRACK WINDOW
  • LH - Was 6630916

19 6661690

  • 6661690 - TRACK WINDOW
  • RH - Was 6630917

20 6513152

  • 6513152 - SEAL
  • BULK/FT 25
  • bulk - sold per foot

21 59D4

  • 59D4 - NUT LOCK HEX PT

22 50D10

  • 50D10 - LOCKNUT

23 84G3112

  • 84G3112 - SCREW THD ROLLING TT

24 6568540

  • 6568540 - MOUNT W L

25 6576513

  • 6576513 - BOLT
  • Was 6630927

26 6630926

  • 6630926 - HINGE

27 6555351

  • 6555351 - SEAL BULK/FT 15
  • 7.5' (228
  • 6 cm) - 7.5' will do both sides - bulk - sold per foot

28 6630925

  • 6630925 - WINDOW

29 6571529

  • 6571529 - KNOB

30 58K109

  • 58K109 - O RING 10

31 6571532

  • 6571532 - BRACKET

32 6571533

  • 6571533 - MOUNT

33 6554149

  • 6554149 - CORD
  • 8.5' (2590
  • 8 mm ) long - bulk - sold per foot - Also Order Ref. 36 (6731478 exit tag)

34 6659949

  • 6659949 - LATCH

35 6704891

  • 6704891 - WINDOW REAR
  • Was 6703021

36 6658352

  • 6658352 - MOULDING
  • 8.5' (259 cm) - bulk - sold per foot

37 6731478

  • 6731478 - TAG EXIT
  • Was 6559515

38 6664351

  • 6664351 - MOULDING
  • Use W/cab headliner & Ref. 5 (6705735 window)

39 6665012

  • 6665012 - SEAL RUBBER
  • Use W/O cab headliner & Ref. 5 (6705735 window)

40 6566957ENUS

  • 6566957ENUS - INSTRUCTIONS
  • side window - Was 6566957

41 6566955

  • 6566955 - INSTRUCTIONS
  • top window
