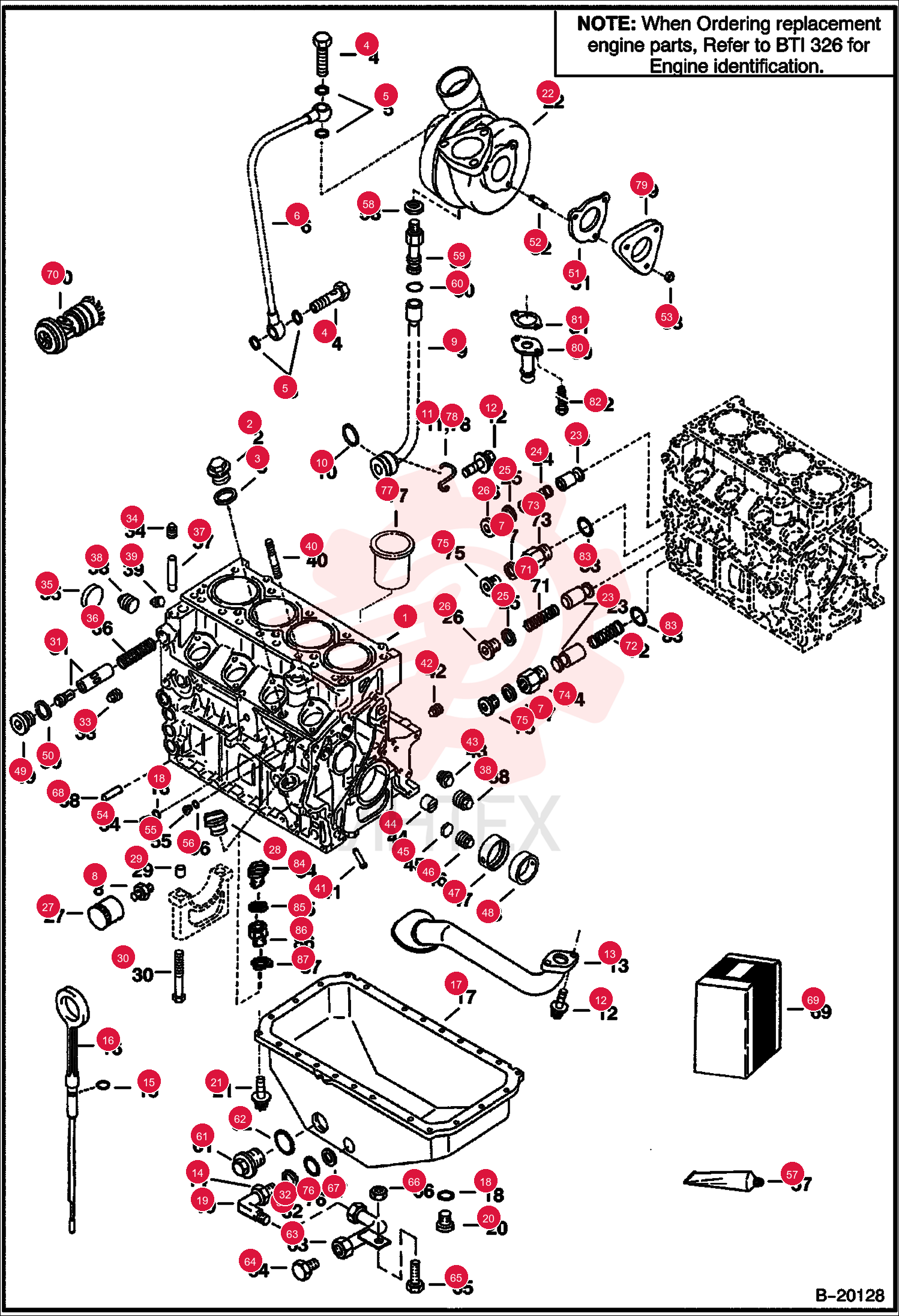

PLUG 6666690 (1)
1 6666690
- 6666690 - PLUG
2 6666393
- 6666393 - SEAL RING
3 6666396
- 6666396 - SCREW
4 2FM12155
- 2FM12155 - WASHER
5 6668948
- 6668948 - TUBE
- oil lubricating
6 6668887
- 6668887 - O-RING
7 6668897
- 6668897 - ADAPTER
8 6668106
- 6668106 - TUBE
- oil return
9 6666401
- 6666401 - O-RING
10 6666509
- 6666509 - RETAINER
- short stroke - non-EPA
11 6668938
- 6668938 - BOLT
12 6666508
- 6666508 - TUBE
- oil suction
13 25K30012
- 25K30012 - O RING 10
- .55" (14mm) O.D.
14 6666439
- 6666439 - O-RING
- .315"(8mm) O.D.
15 6666528
- 6666528 - DIPSTICK
- W/.315"(8mm) O.D. O-ring
16 6680251
- 6680251 - DIPSTICK
- OIL ENG
- W/.55" (14 mm) O.D. O-ring - W/O ribs
17 6670866
- 6670866 - KIT
- PAN OIL
- W/Ref. 18
- 20
- 61-62
18 6666394
- 6666394 - WASHER
19 6709168
- 6709168 - ELBOW
- W/Ref. 32
- 67 & 76
20 6666400
- 6666400 - PLUG
21 6677831
- 6677831 - BOLT
- Was 6666434
22 6677575EF
- 6677575EF - TURBOCHARGER
23 6677575REM
- 6677575REM - TURBOCHARGER
- DEUTZ BF4M1011
24 6677575
- 6677575 - TURBOCHARGER
25 6666510
- 6666510 - VALVE
26 6668941
- 6668941 - SPRING
- yellow - .047'' (1.2mm) dia. wire 3.15'' (80mm) long
27 6666395
- 6666395 - SEAL RING
28 6666387
- 6666387 - PLUG
29 6665603
- 6665603 - FILTER
- OIL ENG 12
- engine
30 6666530
- 6666530 - CAP
- oil fill
31 6666722
- 6666722 - BUSHING
32 6666719
- 6666719 - BOLT
33 6668945
- 6668945 - THERMOSTAT
- engine oil temp. - rated @ 199.4 degrees F (93 degrees C)
34 6669067
- 6669067 - WASHER
35 6666703
- 6666703 - PLUG
36 6666702
- 6666702 - PLUG
37 6666716
- 6666716 - COVER
- soft
38 6668941
- 6668941 - SPRING
39 6666741
- 6666741 - VALVE
40 6672873
- 6672873 - PLUG
41 6672874
- 6672874 - PLUG
42 6688194
- 6688194 - STUD
- Was 6666709
43 6666746
- 6666746 - NOZZLE
- piston cooling
44 6672872
- 6672872 - PLUG
45 6666751
- 6666751 - PLUG
46 6666718
- 6666718 - SLEEVE
- guide
47 6666697
- 6666697 - COVER
- soft
48 6672878
- 6672878 - PLUG
49 6666738
- 6666738 - BUSHING
- wrapped bushing
50 6666737
- 6666737 - BUSHING
- wrapped bushing
51 6668946
- 6668946 - PLUG
- Was 6672877
52 6666395
- 6666395 - SEAL RING
53 6665910
- 6665910 - GASKET
54 6666407
- 6666407 - STUD
55 4DM8
- 4DM8 - NUT HEX
- Was 6666398
56 6666400
- 6666400 - PLUG
- Was 6666689
57 6666690
- 6666690 - PLUG
58 6666699
- 6666699 - O-RING
59 6632823
- 6632823 - GASKET
- LIQUID
- liquid - use between Ref. 17 & block also between Ref. 13 & block
60 7028293
- 7028293 - RING
- SEALING
- Was 6668108
61 6668107
- 6668107 - ADAPTER
62 6668109
- 6668109 - SEAL
- O-RING
63 6668693
- 6668693 - PLUG
64 6668694
- 6668694 - SEAL
65 6714500
- 6714500 - TUBE
- oil drain - Was 6709822
66 6518121
- 6518121 - PLUG
- oil drain
67 35C512
- 35C512 - SCREW FLGD HEX CAP
68 97D5
- 97D5 - NUT FLGD HEX LOCK
69 58K114
- 58K114 - O RING 10
70 6668905
- 6668905 - PIN
71 6668895
- 6668895 - KIT
- REPAIR
- turbocharger - includes snap ring
- O-ring
- & (3) bolts
72 6668903
- 6668903 - SPRING
- red - .055'' (1.4mm) dia. wire 3.07 (78mm) long
73 6668902
- 6668902 - SPRING
- blue - .039''(1.0mm) dia. wire 2.44'' (62mm) long
74 6668900
- 6668900 - ADAPTER
- W/Ref. 83
75 6668901
- 6668901 - ADAPTER
- W/Ref. 83
76 6666400
- 6666400 - PLUG
- Was 6668889
77 6669066
- 6669066 - RING BRASS
78 6672879
- 6672879 - LINER
- CYL
- - cylinder
79 6666509
- 6666509 - RETAINER
- Was 6673155
80 6673169
- 6673169 - FLANGE
81 6677576
- 6677576 - FLANGE
82 6677577
- 6677577 - GASKET
83 6677578
- 6677578 - BOLT
84 6684240
- 6684240 - OIL CAP
- oil fill - W/Ref. 85
85 6684241
- 6684241 - EXTENSION
86 6684242
- 6684242 - WASHER
