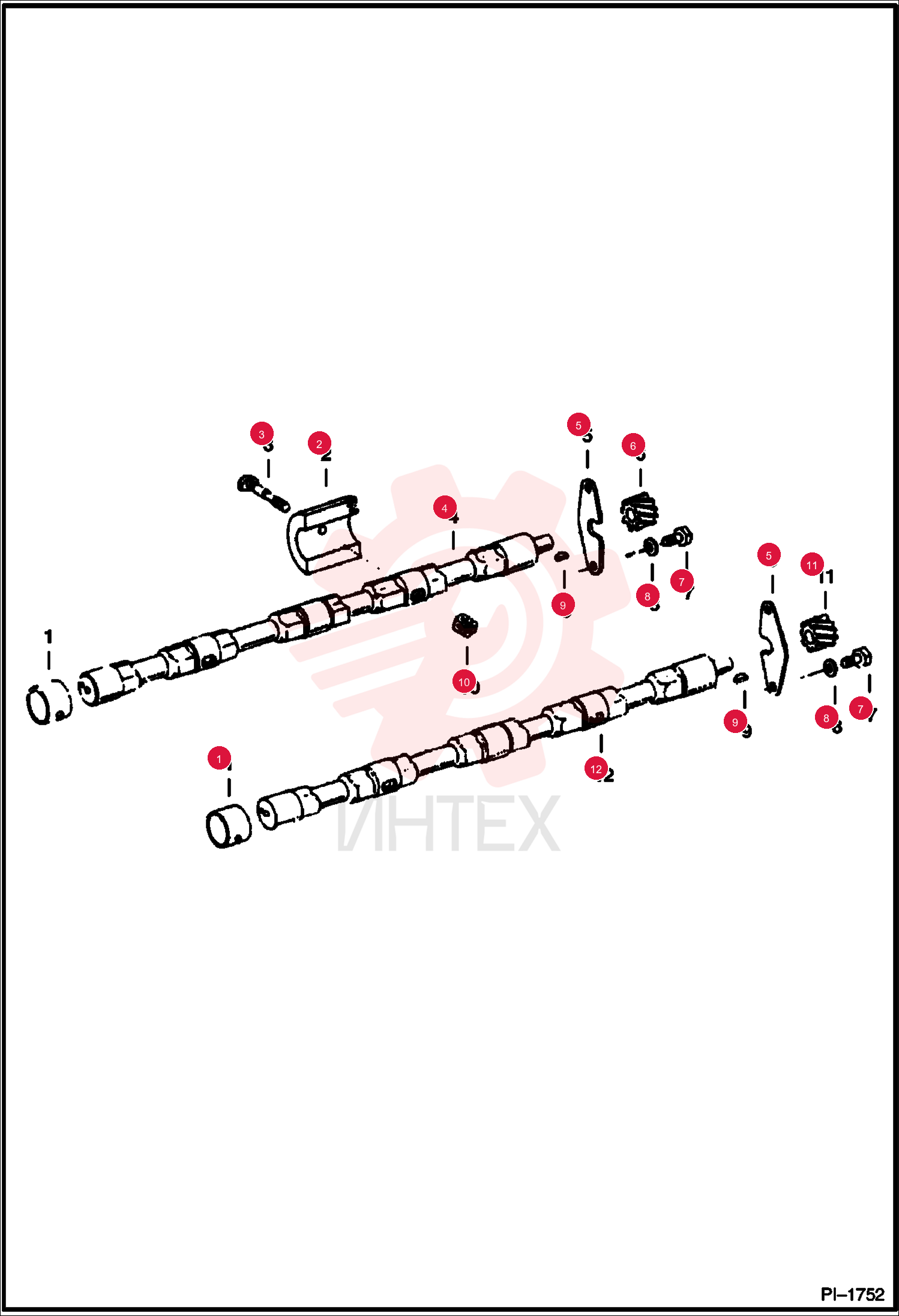

BUSHING 6511714

BUSHING 6511714

BUSHING 6511714

1 6511714

  • 6511714 - BUSHING

2 6511426

  • 6511426 - WEIGHT
  • balancer

3 6511429

  • 6511429 - SHAFT
  • balancer - W/Gear - L.H.

4 6511430

  • 6511430 - PLATE

5 6511428

  • 6511428 - GEAR
  • L.H.

6 17C610

  • 17C610 - BOLT

7 4E6

  • 4E6 - WASHER

8 6J405

  • 6J405 - KEY

9 86D6

  • 86D6 - NUT
  • special

10 6511431

  • 6511431 - GEAR
  • R.H.

11 6511432

  • 6511432 - SHAFT
  • balancer - W/Gear - R.H.
