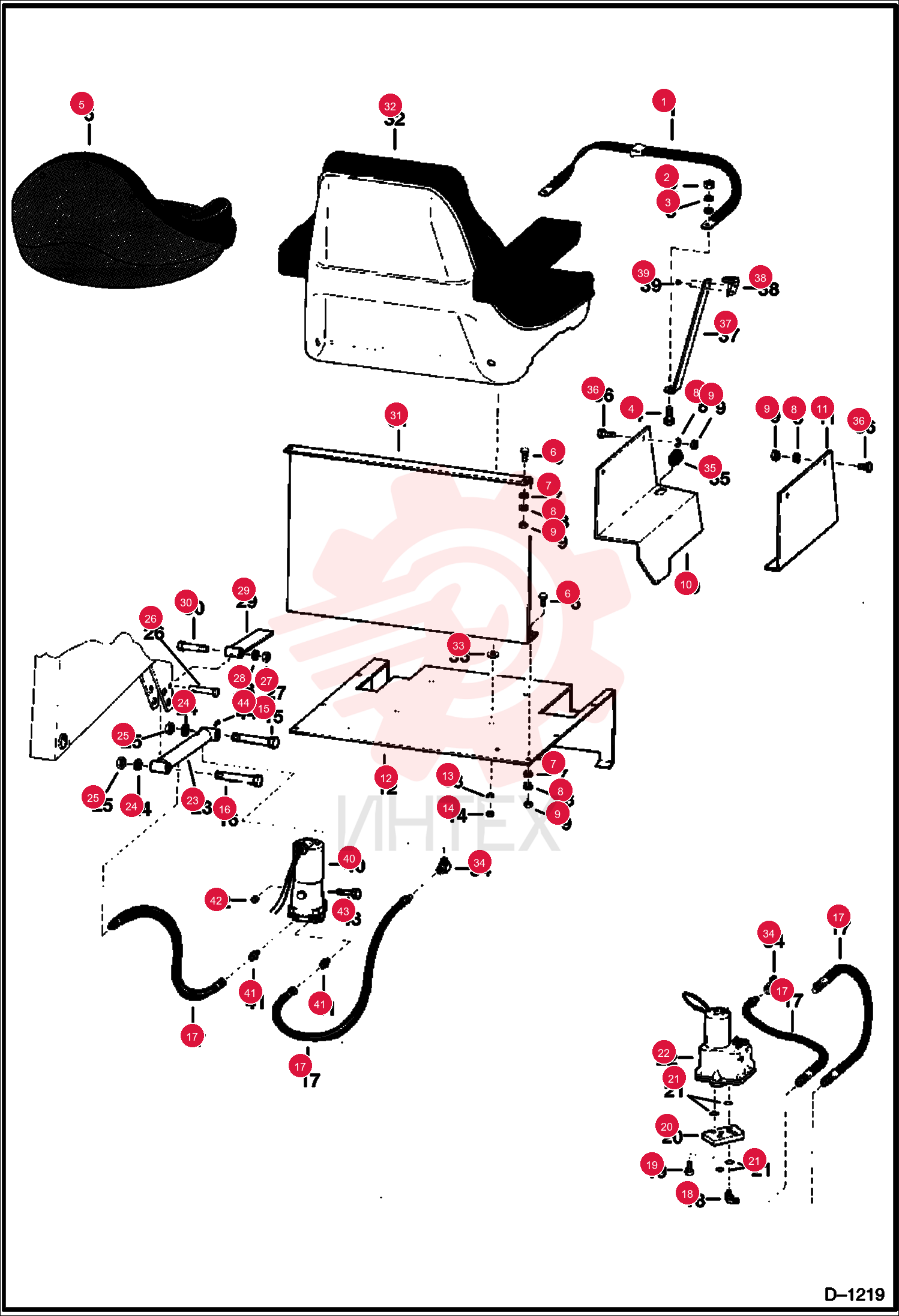

NUT 5 61D8
1 61D8
- 61D8 - NUT 5
2 4E8
- 4E8 - WASHER
3 17C816
- 17C816 - BOLT
4 6519476
- 6519476 - BK REST
- back rest - Black
5 17C620
- 17C620 - BOLT
6 25E17
- 25E17 - WASHER FLAT PLAIN
7 4E6
- 4E6 - WASHER
8 61D6
- 61D6 - NUT HEX FINISHED GR5
9 6544729
- 6544729 - STOPPANEL
- R.H.
10 6592424
- 6592424 - ANGLE
- L.H.
11 6544730
- 6544730 - SEAT PAN
12 4E8
- 4E8 - WASHER
13 17C1472
- 17C1472 - BOLT
14 17C1452
- 17C1452 - BOLT
15 2500673
- 2500673 - HOSE ASSY
- 24'' (609
- 6 mm) - Both ends Female
16 1549545
- 1549545 - HOSE
- 22'' (558
- 8 mm) - 1 Male & 1 Female End
17 6591237
- 6591237 - HOSES
- 22'' (558
- 8 mm) - Both ends Female
18 18C420
- 18C420 - BOLT
19 6503795
- 6503795 - BLOCK
20 25K20012
- 25K20012 - O RING 10
21 4E14
- 4E14 - LOCKWSHR
22 61D14
- 61D14 - NUT
23 1304861
- 1304861 - PIN
24 61D12
- 61D12 - NUT
25 23E12
- 23E12 - WASHER
- Was 4E12
26 6548630
- 6548630 - LATCH
27 17C1244
- 17C1244 - BOLT
28 616783
- 616783 - WASHER
29 29F1
- 29F1 - ELBOW
- Use W/1549545B Hose
30 552438
- 552438 - GROMMET
31 17C616
- 17C616 - BOLT 5
32 6592643
- 6592643 - GUIDE ASSEMBLY
- R.H. - W/Ref. 38 & 39
33 6592645
- 6592645 - GUIDE ASSEMBLY
- L.H. - W/Ref. 38 & 39
34 6630207
- 6630207 - RIVET POP
- Was 6512797
35 6640603
- 6640603 - ADAPTER
36 15K3
- 15K3 - CONNECTOR HYDRAULIC SHORT
- Use W/ Oildyne pump
37 6518382
- 6518382 - NUT
38 17C520
- 17C520 - BOLT 5
39 10H25
- 10H25 - FTG GREASE STRAIGHT
