975
/

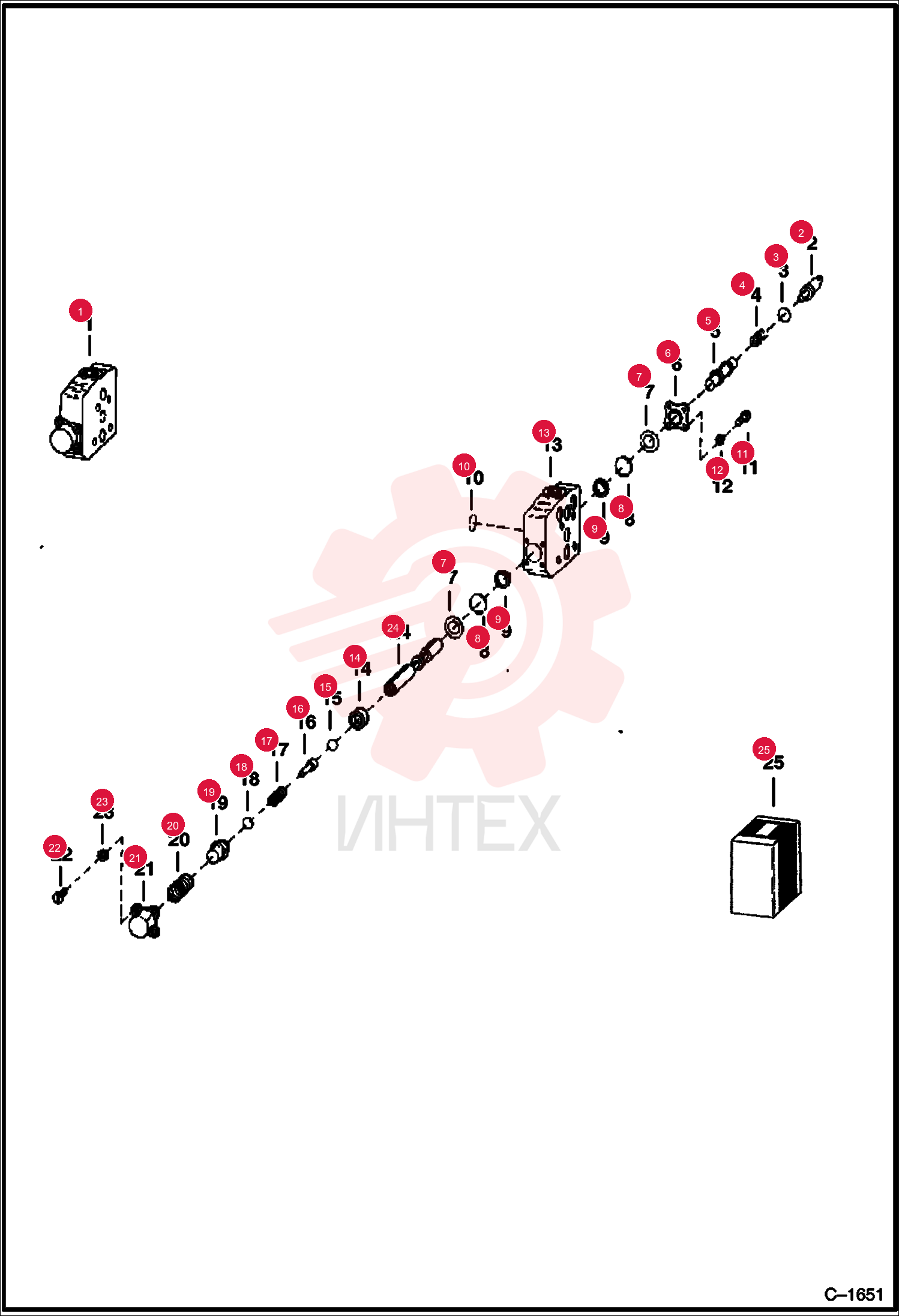

SECTION 6511602

SECTION 6511602

SECTION 6511602

1 6511602

  • 6511602 - SECTION
  • valve

2 6510779

  • 6510779 - ADAPTER
  • clevis

3 79K8

  • 79K8 - O RING 10

4 6510762

  • 6510762 - SPRING

5 6510778

  • 6510778 - CONTROL
  • control

6 6510751

  • 6510751 - PLATE
  • RETAINER
  • seal

7 945225

  • 945225 - SEAL
  • quad ring

8 25K20020

  • 25K20020 - O RING 10

9 89G408

  • 89G408 - BOLT

10 4E4

  • 4E4 - WASHER

11 6510776

  • 6510776 - SPACER
  • spool

12 10J12

  • 10J12 - BALL

13 6510777

  • 6510777 - FOLLOWER
  • ball

14 79K6

  • 79K6 - O RING 10

15 6510775

  • 6510775 - CAP

16 6510774

  • 6510774 - SPRING

17 6510765

  • 6510765 - BONNET

18 6647692

  • 6647692 - SCREW
  • W/Lock Washer - Was 5C000416B

19 6660105

  • 6660105 - SEAL KIT
  • complete for one section & includes Ref. 5 & 6 on Ill. C1649
