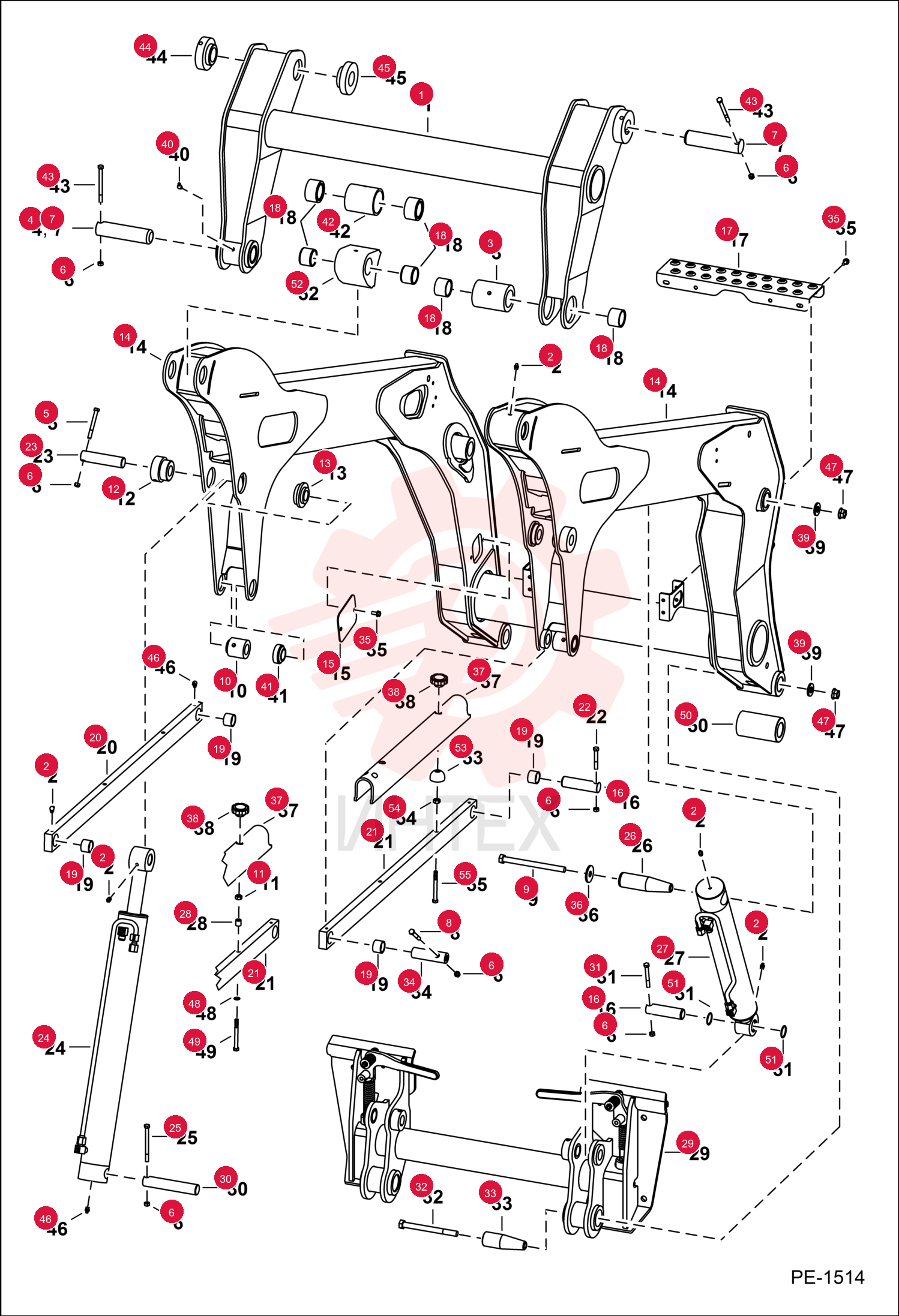

LINK FRAME 6726966

LINK FRAME 6726966

LINK FRAME 6726966

1 6726966

  • 6726966 - LINK FRAME
  • H-Frame

2 10H25

  • 10H25 - FTG GREASE STRAIGHT
  • straight

3 6728800

  • 6728800 - BUSHING
  • WELD-ON

4 6728820

  • 6728820 - PIN
  • 7.118" long

5 17C656

  • 17C656 - BOLT

6 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

7 6728819

  • 6728819 - PIN
  • 6.90" (175
  • 26 mm) long

8 17C644

  • 17C644 - BOLT

9 17C10136

  • 17C10136 - BOLT
  • Was 17C010128B

10 6729423

  • 6729423 - BUSHING
  • weld-on

11 6718942

  • 6718942 - NUT

12 7324832

  • 7324832 - BUSHING PIVOT
  • weld-on - Was 6729005

13 6729006

  • 6729006 - BUSHING
  • weld-on

14 7115857

  • 7115857 - LIFT ARM

15 6731179

  • 6731179 - COVER

16 6577954

  • 6577954 - PIN
  • PIVOT
  • 1.25" x 4.65" (31
  • 7 mm x 118 mm)

17 6729888

  • 6729888 - PLATE

18 6730995

  • 6730995 - BUSHING
  • WEAR

19 6731647

  • 6731647 - WEAR BUSHING
  • wear

20 6729468

  • 6729468 - LINK ASSEMBLY
  • LH - W/Ref. 19

21 6729468

  • 6729468 - LINK ASSEMBLY
  • RH - Also Order (2) each of Ref. 11
  • 28
  • 48 & 49 for mounting Ref. 37 lift arm stop - Was 6726969

22 17C640

  • 17C640 - BOLT

23 6729007

  • 6729007 - PIN
  • PIVOT

24 17C664

  • 17C664 - BOLT

25 6728971

  • 6728971 - PIN
  • PIVOT TAPERED

26 6532347

  • 6532347 - TUBE SPACER
  • Was 6718816

27 6730887

  • 6730887 - PIN

28 17C648

  • 17C648 - SCREW HEX CAP

29 17C10112

  • 17C10112 - BOLT

30 6729358

  • 6729358 - PIN
  • PIVOT TAPERED

31 6731139

  • 6731139 - PIN
  • PIVOT

32 84G3112

  • 84G3112 - SCREW THD ROLLING TT

33 6731160

  • 6731160 - WASHER

34 6731569

  • 6731569 - LIFT ARM STOP
  • lift arm

35 6684932

  • 6684932 - KNOB CLAMPING
  • Was 6679130

36 27E10

  • 27E10 - WASHER

37 11H15

  • 11H15 - FTG GREASE STRAIGHT
  • 45 degree

38 6731138

  • 6731138 - BUSHING

39 6728972

  • 6728972 - BUSHING
  • weld-on - Use W/Ref. 14 (NLA/ 6726965 lift arm)

40 17C672

  • 17C672 - BOLT

41 6727525

  • 6727525 - BUSHING
  • WELD-ON

42 6727832

  • 6727832 - BUSHING
  • WELD-ON

43 12H15

  • 12H15 - FTG GREASE 90
  • grease - 90 degree - Was 12H000025B

44 53D10

  • 53D10 - NUT
  • locking - Was 57D10

45 6E6

  • 6E6 - WASHER
  • Was 25E15

46 6731646

  • 6731646 - BOLT
  • stainless steel

47 6728999

  • 6728999 - BUSHING
  • WELD-ON
  • weld on

48 225855

  • 225855 - SEAL
  • OIL 10
  • 38 mm (1.5") OD

49 7201355

  • 7201355 - DAMPER

50 7D6

  • 7D6 - NUT

51 7197120

  • 7197120 - BOLT
