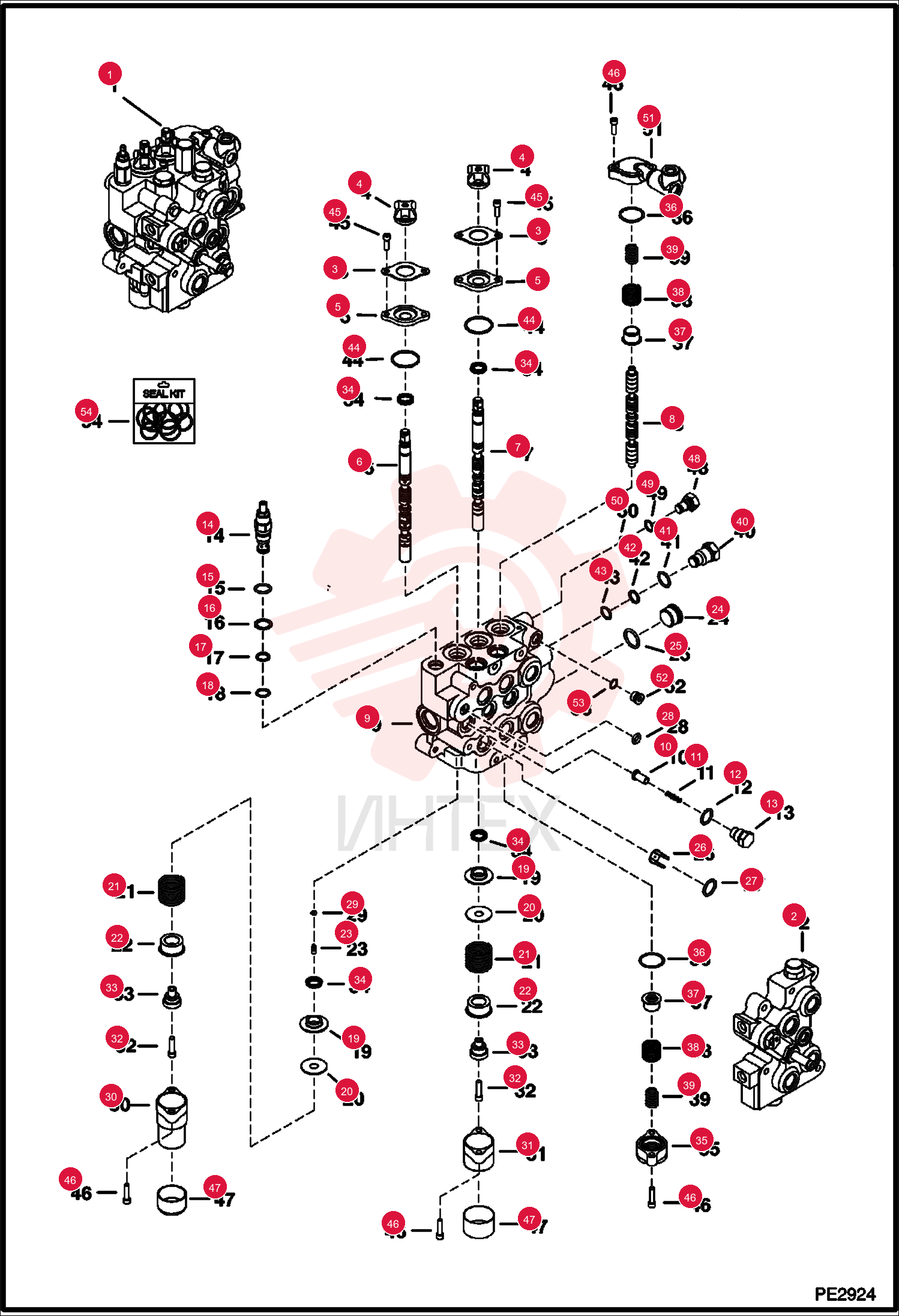

RETAINER 6589564 (1)

RETAINER 6589564 (1)

RETAINER 6589564 (1)

1 6589564

  • 6589564 - RETAINER

2 6587763

  • 6587763 - BOOT

3 6589565

  • 6589565 - SEAL

4 7108251

  • 7108251 - SPOOL
  • LIFT

5 7108242

  • 7108242 - SPOOL
  • TILT

6 7300937

  • 7300937 - SPOOL AUX
  • auxiliary -Was 6588074

7 6592115

  • 6592115 - SEAT
  • load check

8 6592117

  • 6592117 - SPRING
  • LOAD CHECK

9 79K8

  • 79K8 - O RING 10

10 6592116

  • 6592116 - NUT
  • load check - W/Ref. 12

11 7219324

  • 7219324 - VALVE
  • RELIEF
  • W/ O-rings - pressure to be set in field - Was 6686360

12 58K017

  • 58K017 - O-RING 10

13 6665569

  • 6665569 - RING
  • BACK-UP
  • back-up

14 25K20016

  • 25K20016 - O RING 10

15 6665570

  • 6665570 - CLYD RING
  • glide

16 6595663

  • 6595663 - BUSHING

17 7211397

  • 7211397 - WASHER
  • SPRING
  • Was 6587523

18 6587580

  • 6587580 - SPRING

19 6592100

  • 6592100 - COLLAR

20 6801167

  • 6801167 - SPOOLPLUG
  • plastic - 0.69" long

21 24K8

  • 24K8 - PLUG
  • W/Ref. 25 - socket head

22 95K12

  • 95K12 - O-RING

23 6800124

  • 6800124 - RESTRICTOR

24 55K212

  • 55K212 - O RING 10

25 55K204

  • 55K204 - O RING 10

26 54K20002

  • 54K20002 - O'RING 10

27 6803092

  • 6803092 - BONNET
  • .625 flange

28 7101345

  • 7101345 - BONNET
  • DETENT HYD VALVE

29 30G416

  • 30G416 - BOLT

30 6592109

  • 6592109 - ADAPTER

31 6683274

  • 6683274 - SEAL
  • SPOOL 10
  • - lip

32 6588781

  • 6588781 - END CAP
  • .87" thick

33 58K124

  • 58K124 - O RING 10

34 7108780

  • 7108780 - SLEEVE
  • Was 6595951

35 6596332

  • 6596332 - SPRING

36 6595131

  • 6595131 - SPRING
  • .72'' OD

37 6592720

  • 6592720 - PLUG
  • W/Ref. 41-43

38 79K10

  • 79K10 - O RING 10

39 80K14

  • 80K14 - BKUP WSH5
  • Was 73K000014B

40 6677106

  • 6677106 - O-RING

41 1K127

  • 1K127 - O-RING 10
  • Was 93K127

42 29G412

  • 29G412 - BOLT

43 29G416

  • 29G416 - BOLT
  • 1" long

44 6662848

  • 6662848 - CAP

45 6806561

  • 6806561 - PLUG W/SEALS
  • W/Ref. 49 & 50

46 79K7

  • 79K7 - O RING 10

47 25K20012

  • 25K20012 - O RING 10

48 6805651

  • 6805651 - AUX BLOCK
  • aux

49 6812171

  • 6812171 - PLUG
  • W/Ref. 53

50 95K6

  • 95K6 - O'RING

51 7123961

  • 7123961 - SEAL KIT
  • COMPLETE
  • Includes all seal kits

52 6673904

  • 6673904 - SEAL KIT
  • port relief - W/Ref. 41-43

53 7123962

  • 7123962 - SEAL KIT
  • 3 SPOOL
  • external fitting - W/Ref. 12
  • 25
  • 27
  • 28
  • 49
  • 50
  • & 53

54 7123963

  • 7123963 - SEAL KIT
  • EXTERNAL FITTING
  • 3 spool - W/Ref. 4
  • 23
  • 29
  • 34
  • 36
  • & 44

55 6632279

  • 6632279 - KIT
  • SEAL
  • main relief - W/Ref. 15-18

56 6669732

  • 6669732 - KIT
  • SEAL
  • solenoid valve

57 6690431

  • 6690431 - KIT
  • SEAL
  • Was 6669734
