Bobcat
/
A300
/

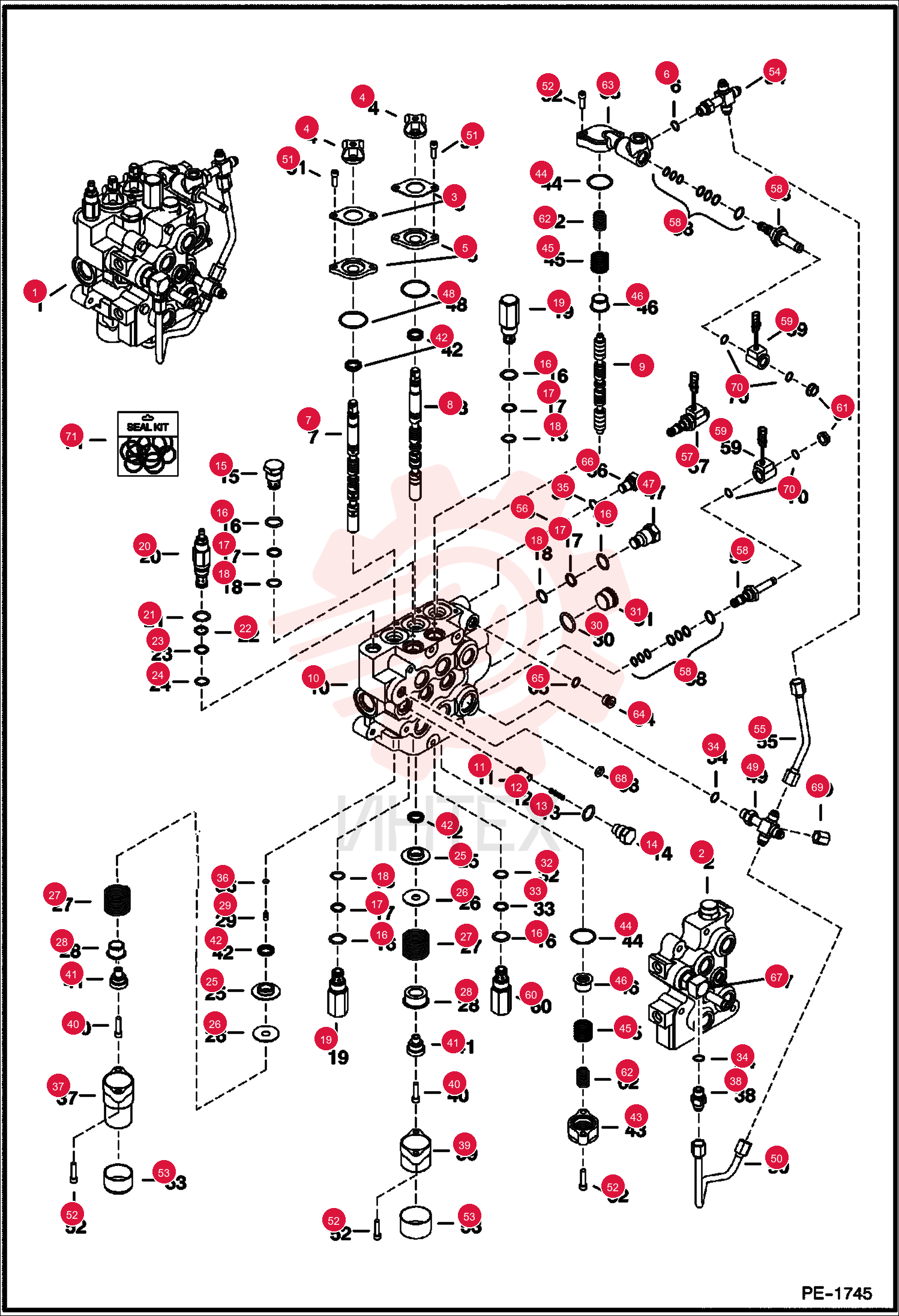

RETAINER 6589564 (3)

RETAINER 6589564 (3)

RETAINER 6589564 (3)

1 6589564

  • 6589564 - RETAINER

2 6587763

  • 6587763 - BOOT

3 6589565

  • 6589565 - SEAL

4 79K6

  • 79K6 - O RING 10

5 7108251

  • 7108251 - SPOOL
  • LIFT
  • Was 7101151

6 7108242

  • 7108242 - SPOOL
  • TILT

7 7300937

  • 7300937 - SPOOL AUX
  • auxiliary - Was 6588074

8 6592115

  • 6592115 - SEAT
  • load check

9 6592117

  • 6592117 - SPRING
  • LOAD CHECK

10 79K8

  • 79K8 - O RING 10

11 6592116

  • 6592116 - NUT
  • load check - W/Ref. 13

12 6667549

  • 6667549 - VALVE
  • CHECK
  • anti-cavity check - W/Ref. 16-18

13 79K10

  • 79K10 - O RING 10

14 80K14

  • 80K14 - BKUP WSH5
  • Was 73K000014B

15 6677106

  • 6677106 - O-RING
  • back-up washer not required

16 6679757

  • 6679757 - VALVE
  • RELIEF
  • port relief - W/Ref. 16-18 - 4000 PSI

17 7219324

  • 7219324 - VALVE
  • RELIEF
  • W/ O-rings - pressure to be set in field - Was 6686360

18 58K017

  • 58K017 - O-RING 10

19 6665569

  • 6665569 - RING
  • BACK-UP
  • back-up

20 25K20016

  • 25K20016 - O RING 10

21 6665570

  • 6665570 - CLYD RING
  • glide

22 6595663

  • 6595663 - BUSHING

23 7211397

  • 7211397 - WASHER
  • SPRING
  • Was 6587523

24 6587580

  • 6587580 - SPRING

25 6592100

  • 6592100 - COLLAR

26 6801167

  • 6801167 - SPOOLPLUG
  • plastic - 0.69" long

27 95K12

  • 95K12 - O-RING

28 90K8

  • 90K8 - PLUG
  • W/Ref. 30 - socket head - Was 90KV00008B

29 79K6

  • 79K6 - O RING 10

30 79K7

  • 79K7 - O RING 10

31 54K20002

  • 54K20002 - O'RING 10

32 6803092

  • 6803092 - BONNET
  • .625 flange

33 6681933

  • 6681933 - CHECK VALVE
  • 3000 PSI - W/screen - W/Ref. 34

34 7101345

  • 7101345 - BONNET
  • DETENT HYD VALVE
  • Was 6587633

35 30G416

  • 30G416 - BOLT

36 6592109

  • 6592109 - ADAPTER

37 6683274

  • 6683274 - SEAL
  • SPOOL 10
  • - lip

38 6588781

  • 6588781 - END CAP
  • .87" thick

39 58K124

  • 58K124 - O RING 10

40 6596332

  • 6596332 - SPRING

41 7108780

  • 7108780 - SLEEVE
  • Was 6595951

42 6592720

  • 6592720 - PLUG
  • W/Ref. 16-18

43 1K127

  • 1K127 - O-RING 10
  • Was 93K127

44 6817552

  • 6817552 - CROSS
  • W/Ref. 6 - Was 6805241

45 6734058

  • 6734058 - TUBELINE

46 29G412

  • 29G412 - BOLT

47 29G416

  • 29G416 - BOLT
  • 1" long

48 6662848

  • 6662848 - CAP

49 6805696

  • 6805696 - TEE
  • W/Ref. 6

50 6816350

  • 6816350 - TEE
  • W/Ref. 6

51 97K6

  • 97K6 - O-RING
  • flared end

52 6806496

  • 6806496 - TUBELINE

53 25K20012

  • 25K20012 - O RING 10

54 6677201

  • 6677201 - SOLENOID ASSEMBLY
  • W/Ref. 58 & 59

55 6676249

  • 6676249 - STEM
  • VALVE SOLENOID

56 6586459

  • 6586459 - SEAL KIT

57 6717706

  • 6717706 - COIL
  • 10 VOLT
  • W/Ref. 61 - pwm - 10 volt

58 6678552

  • 6678552 - RELIEF VLV ANTI-CAV
  • port relief & anti-cav. - W/Ref. 16
  • 32 & 33 - 2500 PSI - use in tilt cylinder base end port

59 6673904

  • 6673904 - SEAL KIT
  • W/Ref. 16
  • 32 & 33

60 6676566

  • 6676566 - NUT

61 6595131

  • 6595131 - SPRING
  • .72'' OD

62 6805651

  • 6805651 - AUX BLOCK
  • aux

63 24K5

  • 24K5 - PLUG
  • W/Ref. 65 - Was 90KV5

64 95K6

  • 95K6 - O'RING

65 6806561

  • 6806561 - PLUG W/SEALS
  • W/Ref. 35 & 56

66 6814247

  • 6814247 - FITTING ASSEMBLY

67 55K204

  • 55K204 - O RING 10

68 36K5

  • 36K5 - CAP

69 54K20028

  • 54K20028 - O RING 10

70 6816253

  • 6816253 - KIT
  • SEAL
  • complete - Ref. 4
  • 13
  • 16-18
  • 21-24
  • 34
  • 35
  • 42
  • 44
  • 48. 51
  • 52 & 68 - also Order 6816250 seal kit

71 6661328

  • 6661328 - SEAL KIT
  • main relief - Ref. 21-24

72 6809425

  • 6809425 - SEAL KIT
  • Ref. 13 & 16-18

73 6586459

  • 6586459 - SEAL KIT
  • W/Ref. 16
  • 32 & 33

74 6816250

  • 6816250 - KIT
  • SEAL
  • one spool - Ref. 4
  • 36
  • 42
  • 48
  • 51 & 52
