Bobcat
/
A300
/

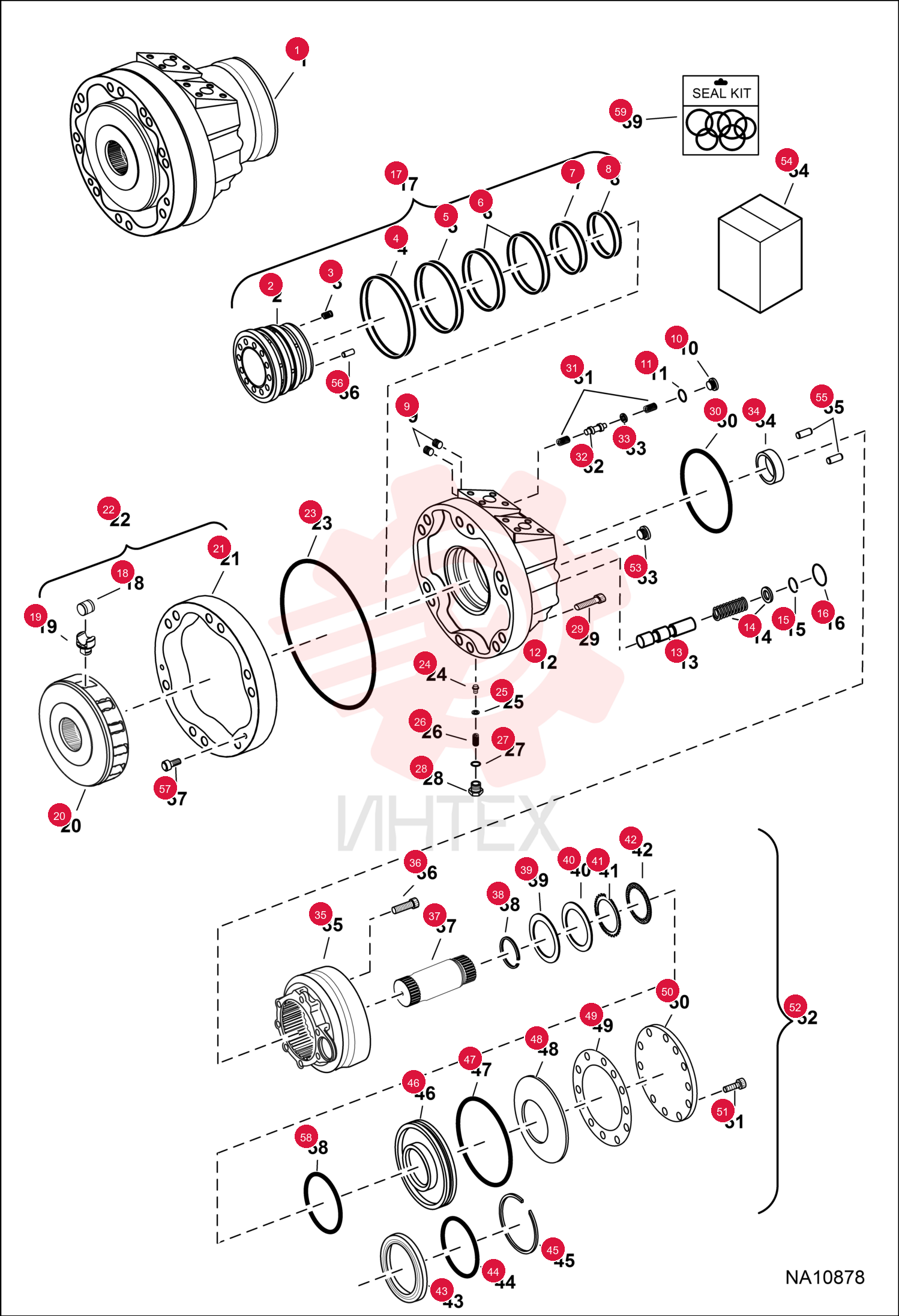

MOTOR, DRIVE HYD 2-SPD

MOTOR, DRIVE HYD 2-SPD

MOTOR, DRIVE HYD 2-SPD

1 7261334

  • 7261334 - MOTOR
  • DRIVE HYD 2-SPD
  • Ref. 2-57

2 7261334REM

  • 7261334REM - MOTOR DRIVE HYDR 2-SPD
  • Ref. 2-57

3 7257498

  • 7257498 - DISTRIBUTOR MOTOR

4 6674037

  • 6674037 - SPRING

5 6675877

  • 6675877 - SEAL
  • W/ O-ring

6 6675878

  • 6675878 - SEAL
  • W/ O-ring

7 6675879

  • 6675879 - SEAL
  • W/ O-ring

8 6675880

  • 6675880 - SEAL
  • W/ O-ring

9 6675881

  • 6675881 - SEAL
  • W/ O-ring

10 6967609

  • 6967609 - PIN
  • break-off plug M8 - set of (2)

11 6691227

  • 6691227 - PLUG

12 6689133

  • 6689133 - O-RING

13 7261713

  • 7261713 - HOUSING
  • rear

14 6690074

  • 6690074 - SPOOL
  • 2 speed - 2W/SO479C

15 6675883

  • 6675883 - KIT
  • WASHER

16 7012053

  • 7012053 - RING
  • SNAP

17 6690077

  • 6690077 - O-RING

18 7261713

  • 7261713 - HOUSING
  • Ref. 2-16

19 7318718

  • 7318718 - ROLLER DRUM

20 7318717

  • 7318717 - PISTON MOTOR

21 7357110

  • 7357110 - ROTARY GROUP

22 7261707

  • 7261707 - CAM ROTOR

23 6675864

  • 6675864 - QUAD RING

24 6675868

  • 6675868 - POPPET
  • 1
  • 5 mm orifice

25 6674343

  • 6674343 - SHIM
  • 0
  • 6 mm

26 6674344

  • 6674344 - SPRING

27 6676038

  • 6676038 - O-RING

28 6674345

  • 6674345 - PLUG

29 6687081

  • 6687081 - BOLT
  • holds rotary group to the brake

30 6675863

  • 6675863 - QUAD RING

31 6674841

  • 6674841 - SPRING

32 6675866

  • 6675866 - SPOOL

33 6675867

  • 6675867 - WASHER

34 6675898

  • 6675898 - BUSHING

35 7257500

  • 7257500 - HOUSING

36 7257502

  • 7257502 - SCREW

37 7257501

  • 7257501 - SHAFT

38 6690081

  • 6690081 - CLAMP

39 6690089

  • 6690089 - SHIM

40 6674191

  • 6674191 - SHIM

41 6674192

  • 6674192 - BRAKE
  • DISC
  • outer

42 6674193

  • 6674193 - BRAKE
  • DISC
  • inner

43 6689088

  • 6689088 - QUAD RING

44 6689089

  • 6689089 - O-RING

45 6690094

  • 6690094 - CLAMP

46 6675889

  • 6675889 - PISTON
  • BRAKE
  • brake

47 6675893

  • 6675893 - O-RING

48 6675897

  • 6675897 - DISC
  • SPRING

49 6675892

  • 6675892 - GASKET

50 6675890

  • 6675890 - COVER
  • END

51 6690095

  • 6690095 - SCREW

52 7257496

  • 7257496 - BRAKE
  • ASSY
  • Ref. 34-51

53 6689129

  • 6689129 - PLUG
  • W/ O-ring

54 6675883

  • 6675883 - KIT
  • WASHER

55 6691100

  • 6691100 - PIN

56 7257499

  • 7257499 - PIN

57 6688449

  • 6688449 - PIN ALIGNMENT

58 7350260

  • 7350260 - SEAL O-RING

59 7357364

  • 7357364 - KIT SEAL
  • Ref. 4-8
  • 16
  • 23
  • 27
  • 47 & 58
