Bobcat
/
A770
/

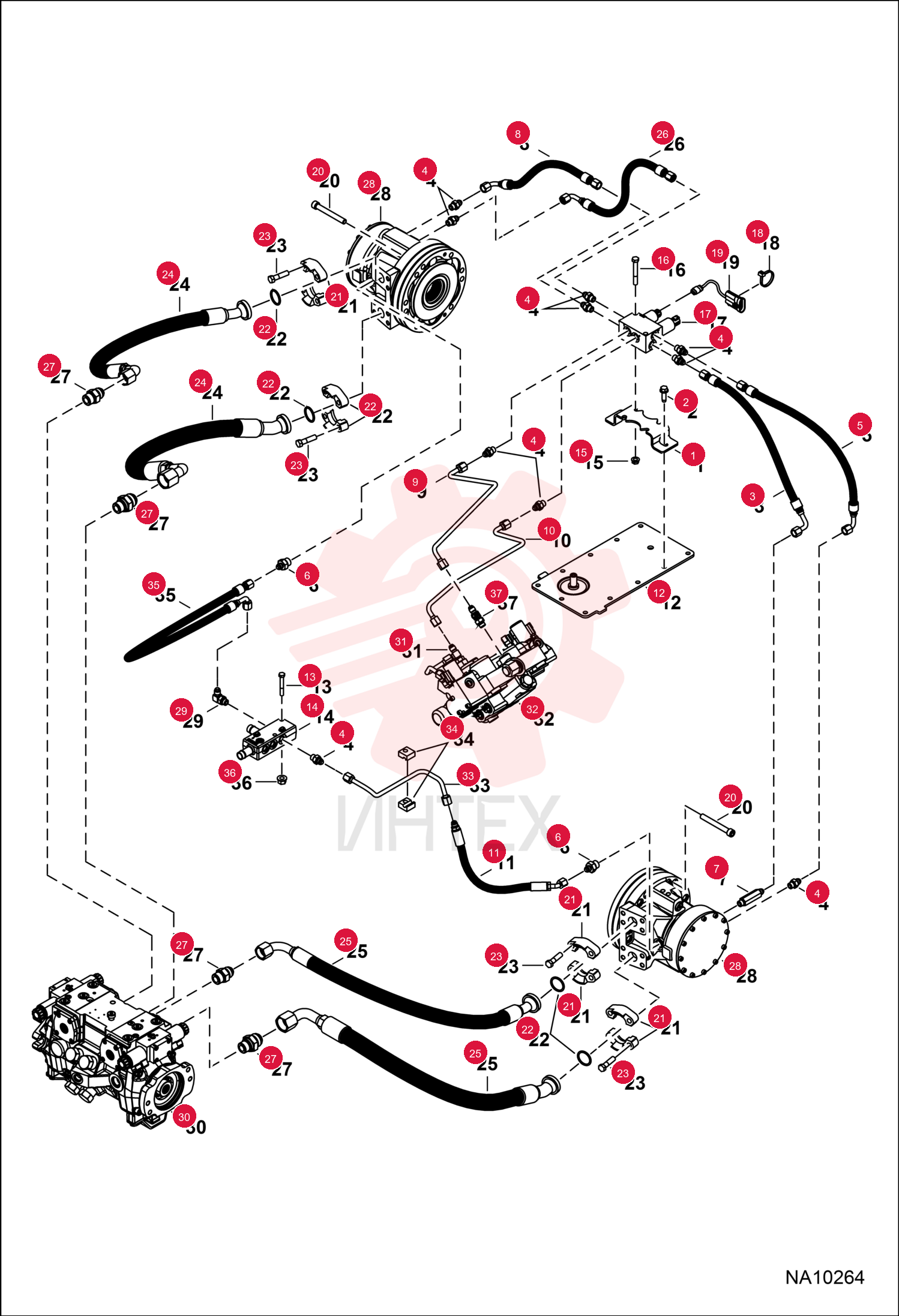

MOUNT 2 SPEED

MOUNT 2 SPEED

MOUNT 2 SPEED

1 7355442

  • 7355442 - MOUNT 2 SPEED
  • Was 7281438

2 84G3720

  • 84G3720 - SCREW THD ROLLING TT

3 7243053

  • 7243053 - HOSE
  • HYD

4 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR

5 79K6

  • 79K6 - O RING 10

6 7235470

  • 7235470 - HOSE
  • HYD
  • 552
  • 5 mm (21.75") long

7 15KB0608

  • 15KB0608 - FITTING
  • HYD CONNECTOR

8 79K8

  • 79K8 - O RING 10

9 7169116

  • 7169116 - ADAPTER

10 79K6

  • 79K6 - O RING 10

11 7124956

  • 7124956 - HOSE
  • HYD

12 7212580

  • 7212580 - TUBELINE
  • HYD

13 7212581

  • 7212581 - TUBELINE
  • HYD

14 7185253

  • 7185253 - HOSE
  • HYD

15 7213128

  • 7213128 - COVER
  • BRAKE

16 17C540

  • 17C540 - BOLT

17 55D6

  • 55D6 - NUT

18 17C644

  • 17C644 - BOLT

19 6624289

  • 6624289 - STRAP
  • TIE

20 7159366

  • 7159366 - HARNESS
  • 2 SPEED RETURN

21 6717806

  • 6717806 - SCREW

22 20J16

  • 20J16 - FLANGE

23 55K219

  • 55K219 - SEAL
  • O-RING

24 17C728

  • 17C728 - BOLT

25 7198721

  • 7198721 - HOSE
  • HYD
  • Was 7009002

26 7009003

  • 7009003 - HOSE
  • HYD
  • mega seal

27 79K12

  • 79K12 - O RING 10

28 15KB1212

  • 15KB1212 - FITTING
  • HYD CONNECTOR

29 17KB0606

  • 17KB0606 - FTG HYD 90 ELBOW

30 79K6

  • 79K6 - O RING 10

31 7180987

  • 7180987 - FITTING
  • CROSS

32 79K6

  • 79K6 - O RING 10

33 7187128

  • 7187128 - TUBELINE
  • HYD

34 6727707

  • 6727707 - CLAMP 2

35 7178547

  • 7178547 - HOSE
  • HYD ASSY

36 83D5

  • 83D5 - LKNUT HEX FLG GR8

37 21KB0606

  • 21KB0606 - FITTING
  • HYD TEE

38 79K6

  • 79K6 - O RING 10
