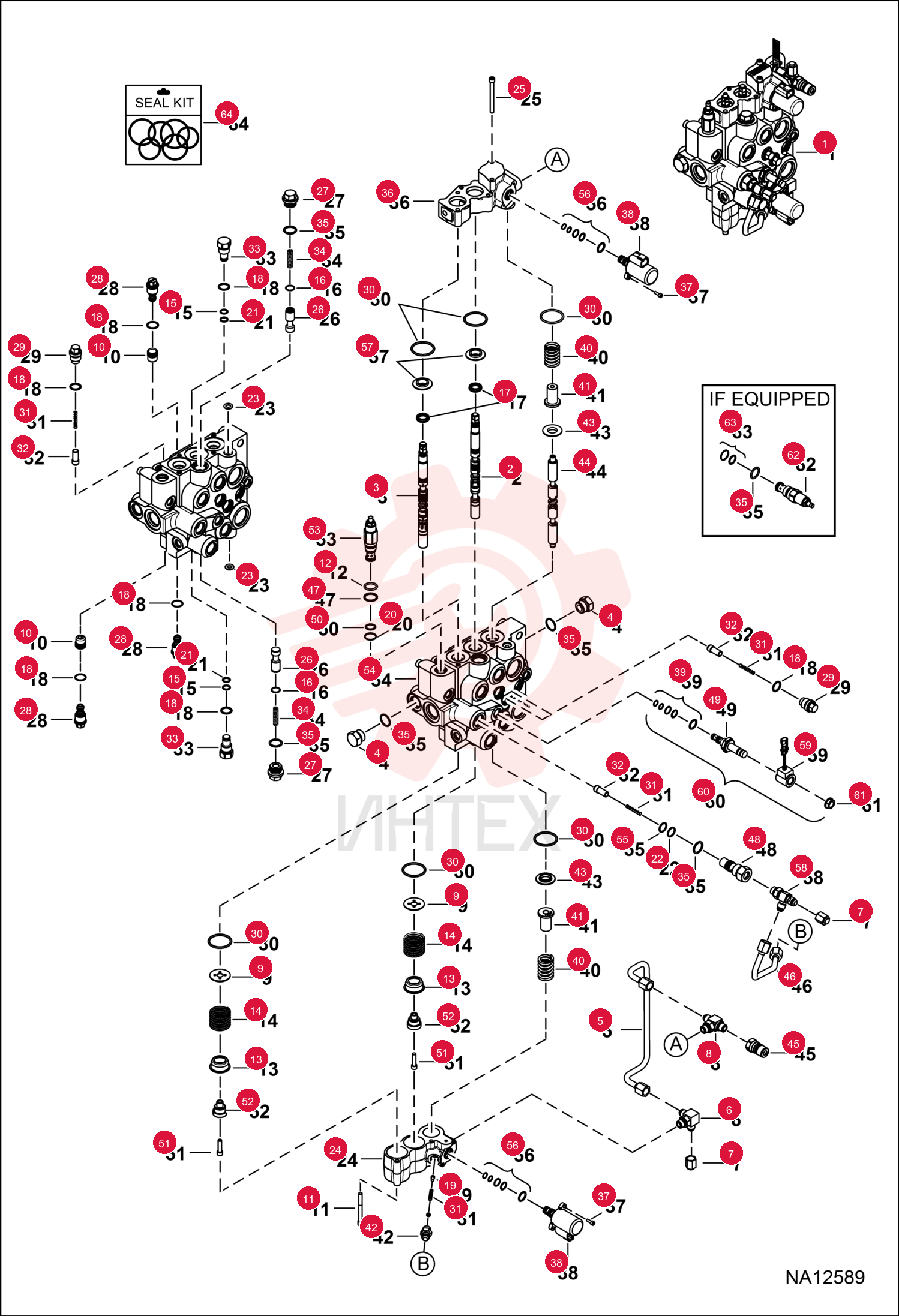

VALVE ASSEMBLY 7329266

VALVE ASSEMBLY 7329266

VALVE ASSEMBLY 7329266

1 7329266

  • 7329266 - VALVE ASSEMBLY
  • Ref. 2-58 - Was 7297080

2 7108242

  • 7108242 - SPOOL
  • TILT

3 7266560

  • 7266560 - SPOOL
  • LIFT
  • Was 7209496

4 24K7

  • 24K7 - PLUG
  • W/Ref. 35

5 7157291

  • 7157291 - TUBELINE

6 6725182

  • 6725182 - TEE
  • Was 7166338

7 36K5

  • 36K5 - CAP

8 7232515

  • 7232515 - FITTING
  • HYD TEE

9 79K6

  • 79K6 - O RING 10

10 7211397

  • 7211397 - WASHER
  • SPRING

11 7208227

  • 7208227 - SEAT
  • RELIEF PORT

12 29G444

  • 29G444 - BOLT
  • Was 6814022

13 58K017

  • 58K017 - O-RING 10

14 6592100

  • 6592100 - COLLAR

15 6587580

  • 6587580 - SPRING

16 58K013

  • 58K013 - O-RING 10

17 7214312

  • 7214312 - RING
  • RETAINING

18 7031367

  • 7031367 - SEAL
  • SPOOL
  • Was 6683274

19 79K8

  • 79K8 - O RING 10

20 7280785

  • 7280785 - VALVE
  • POPPET
  • Was 7214722

21 6665570

  • 6665570 - CLYD RING

22 73K013

  • 73K013 - RING
  • BACK-UP

23 73K016

  • 73K016 - RING
  • BACK-UP

24 55K204

  • 55K204 - O RING 10

25 7222562

  • 7222562 - BLOCK
  • VALVE CONTROL HYD
  • Was 7214959

26 29G444

  • 29G444 - BOLT

27 7217075

  • 7217075 - SPOOL
  • BICS

28 7219703

  • 7219703 - PLUG
  • BICS
  • W/Ref. 35

29 6684646

  • 6684646 - VALVE
  • ANTI-CAV
  • anti-cav - W/Ref. 18

30 7134520

  • 7134520 - PLUG
  • check valve - W/Ref. 18

31 7219080

  • 7219080 - O-RING

32 7166339

  • 7166339 - SPRING
  • LOAD CHECK
  • 44
  • 4 mm (1.75") long - Was 7239824

33 7166047

  • 7166047 - SEAT
  • CHECK VALVE

34 6816549

  • 6816549 - PLUG ASSY PORT RLF
  • W/Ref. 15
  • 18 & 21

35 7203643

  • 7203643 - SPRING
  • VALVE

36 79K10

  • 79K10 - O RING 10

37 7157293

  • 7157293 - BODY

38 7002716

  • 7002716 - SCREW

39 6698434

  • 6698434 - VALVE
  • PROPORTIONAL

40 6669732

  • 6669732 - KIT
  • SEAL

41 7121399

  • 7121399 - SPRING

42 6814694

  • 6814694 - RETAINER

43 7202329

  • 7202329 - FITTING
  • HYD CONNECTOR W/SCREEN

44 7138376

  • 7138376 - BUSHING

45 7112383

  • 7112383 - AUX SPOOL

46 6684125

  • 6684125 - COUPLER

47 6684125EF

  • 6684125EF - COUPLER ISO MALE B 3/8 BDY 3/8 SAE

48 7202325

  • 7202325 - TUBELINE
  • HYD VALVE CONTROL

49 6665569

  • 6665569 - RING
  • BACK-UP

50 7134522

  • 7134522 - PLUG
  • W/Ref. 22
  • 35 & 55

51 7272731

  • 7272731 - VALVE
  • SOLENOID
  • W/Ref. 39

52 25K20016

  • 25K20016 - O RING 10

53 7102652

  • 7102652 - SCREW

54 6592109

  • 6592109 - ADAPTER

55 7219324

  • 7219324 - VALVE
  • RELIEF
  • W/ O-rings - pressure to be set in field - Was 6686360

56 58K016

  • 58K016 - O-RING 10

57 7008771

  • 7008771 - KIT
  • SEAL

58 7211393

  • 7211393 - RETAINER
  • SEAL

59 7214512

  • 7214512 - FITTING
  • HYD TEE

60 7272732

  • 7272732 - COIL SOLENOID ASSEMBLY
  • W/Ref. 61 - E series - silver case - 208 mm (8.2") lead - metri pack connector - two red wires

61 7301672

  • 7301672 - COIL SOLENOID
  • W/Ref. 61 - E series - silver case - integrated Deutsch connector

62 7304852

  • 7304852 - VALVE
  • CARTRIDGE
  • Ref. 39
  • 49
  • 59 (7272732 coil ) & 61

63 7314079

  • 7314079 - VALVE CARTRIDGE
  • Ref. 39
  • 49
  • 59 (7301672 coil) & 61

64 7020647

  • 7020647 - NUT
  • Was 6668820

65 7025564

  • 7025564 - VALVE
  • RELIEF
  • - W/Ref. 35 & 67 - Was 7024940

66 6670634

  • 6670634 - SEAL KIT
  • For Ref. 62 - Was 7024825

67 7218923

  • 7218923 - KIT
  • SEAL COMPLETE

68 7218924

  • 7218924 - KIT
  • SEAL
  • Ref. 17
  • 18
  • 23 & 30

69 7123965

  • 7123965 - KIT
  • SEAL
  • external fitting - Ref. 15
  • 18
  • 21
  • 22 & 35
