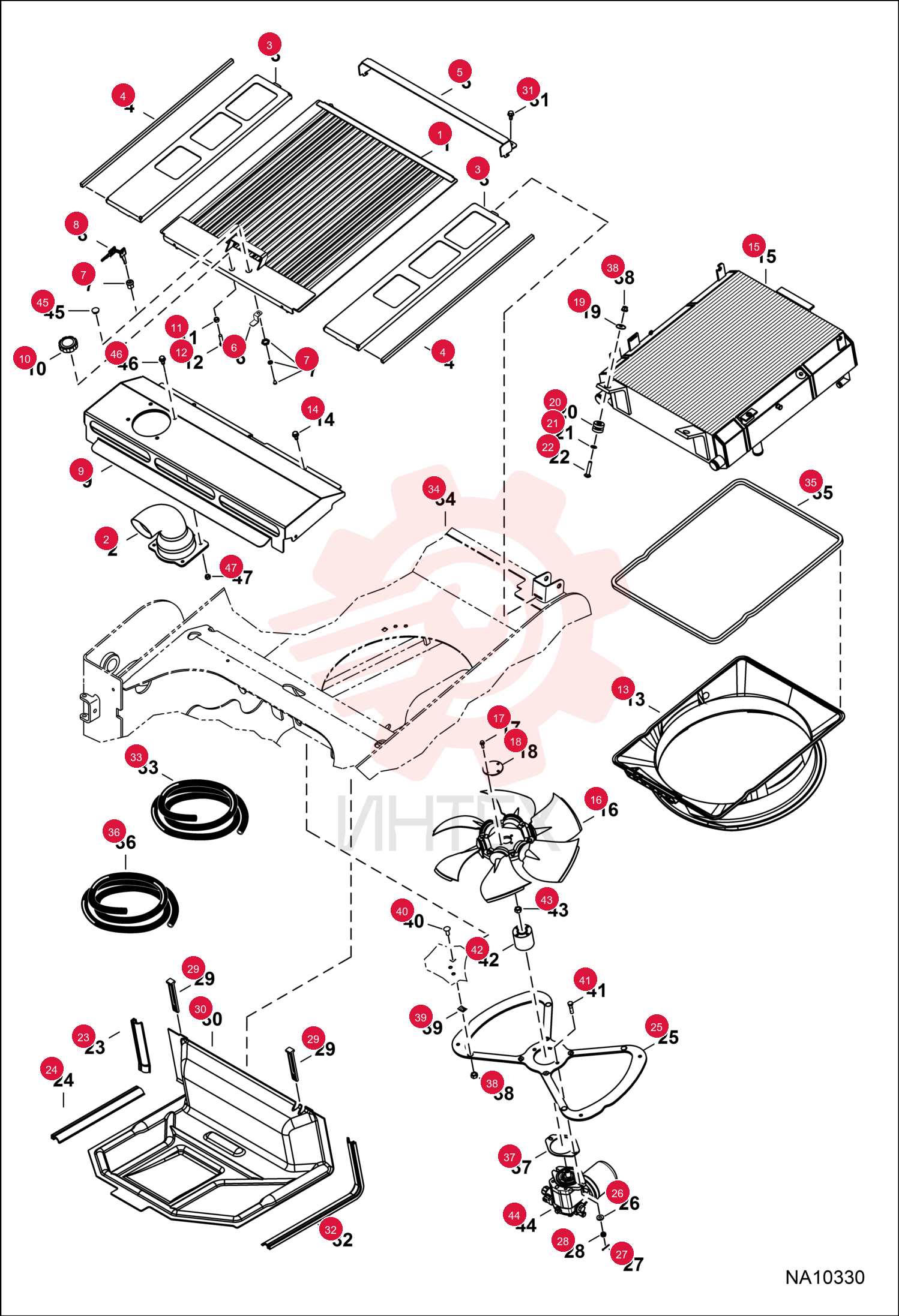

SCREEN, EXCHANGER 7227149

SCREEN, EXCHANGER 7227149

SCREEN, EXCHANGER 7227149

1 7227149

  • 7227149 - SCREEN
  • EXCHANGER

2 7334816

  • 7334816 - TUBE EXHAUST

3 7244125

  • 7244125 - COVER
  • HOOD ASSY

4 7248835

  • 7248835 - SHIELD
  • HOOD

5 7149056

  • 7149056 - LATCH
  • CAM
  • if equipped

6 6670726

  • 6670726 - LOCK ONLY
  • if equipped

7 6693241

  • 6693241 - KEY (2)
  • ignition - single key W/O ring

8 7265507

  • 7265507 - COVER
  • ENG

9 6684932

  • 6684932 - KNOB CLAMPING

10 61D6

  • 61D6 - NUT HEX FINISHED GR5

11 7213188

  • 7213188 - SCREW

12 7243138

  • 7243138 - SHROUD
  • FAN

13 84G3716

  • 84G3716 - SCREW THD ROLLING TT

14 7250831

  • 7250831 - FAN
  • COOLING

15 49C412

  • 49C412 - BOLT

16 7125948

  • 7125948 - PLATE

17 6737388

  • 6737388 - WASHER HARDENED

18 7244210

  • 7244210 - MOUNT
  • ISOLATOR

19 6674894

  • 6674894 - NUT
  • LOCK

20 7255609

  • 7255609 - BOLT

21 7313334

  • 7313334 - SEAL DUCT
  • Was bulk seal

22 7313335

  • 7313335 - SEAL DUCT
  • Was bulk seal

23 7244196

  • 7244196 - MOUNT

24 25E17

  • 25E17 - WASHER FLAT PLAIN

25 1F316

  • 1F316 - PIN

26 3D6

  • 3D6 - NUT

27 7316774

  • 7316774 - STRAP HOLD DOWN
  • Was 7141906

28 7227907

  • 7227907 - DUCT
  • AIR

29 84G3712

  • 84G3712 - SCREW THD ROLLING TT

30 7313333

  • 7313333 - SEAL DUCT
  • Was bulk seal

31 6511855

  • 6511855 - TAPE BULK/FT 25'
  • self adhesive - sold per foot

32 7243938

  • 7243938 - SEAL
  • BULK
  • sold per foot

33 7242068

  • 7242068 - GASKET

34 89D6

  • 89D6 - NUT

35 6684033

  • 6684033 - NUT

36 10C616

  • 10C616 - BOLT SHRT SQ NK RHD? 3/8-16X1 GRD 5

37 7249974

  • 7249974 - BOLT

38 7249438

  • 7249438 - HUB

39 7240968

  • 7240968 - NUT

40 7265577

  • 7265577 - MOTOR
  • FAN DRIVE

41 7025310

  • 7025310 - PLUG
  • NYLON

42 31C616

  • 31C616 - SCREW

43 85D6

  • 85D6 - NUT PRETRQ HEX LOCK
