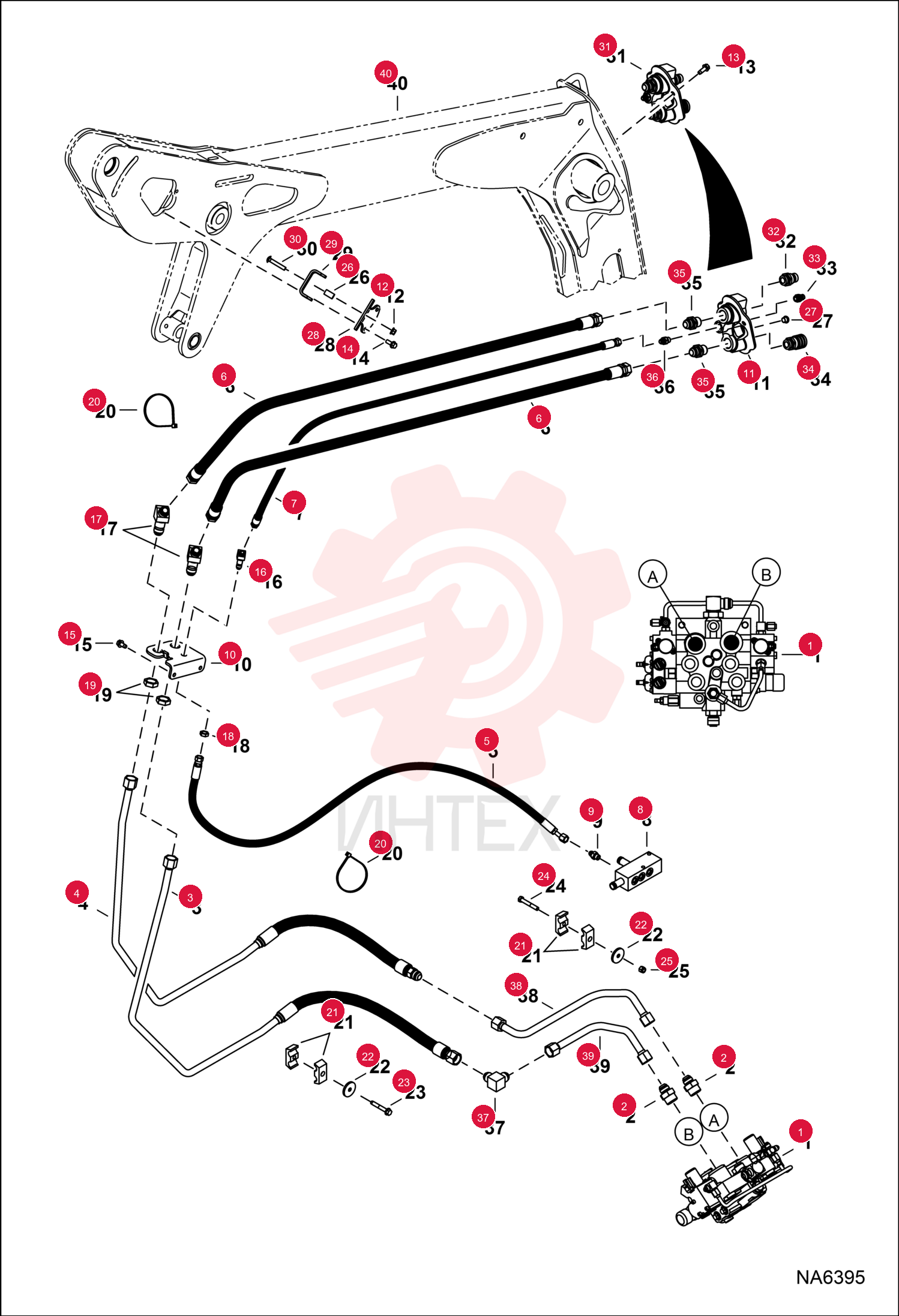

O RING 10 79K16

O RING 10 79K16

O RING 10 79K16

1 79K16

  • 79K16 - O RING 10

2 15KB1216

  • 15KB1216 - FITTING
  • HYD CONNECTOR

3 7225569

  • 7225569 - HOSE
  • HYD

4 7225570

  • 7225570 - HOSE
  • HYD

5 6732083

  • 6732083 - HOSE

6 7162864

  • 7162864 - HOSE
  • HYD ASSY

7 7213215

  • 7213215 - HOSE HYDRAULIC ASSY

8 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR

9 79K6

  • 79K6 - O RING 10

10 7156363

  • 7156363 - MOUNT
  • BLKHD

11 53D6

  • 53D6 - NUT
  • Was 89D6

12 84G3716

  • 84G3716 - SCREW THD ROLLING TT

13 37C636

  • 37C636 - BOLT

14 84G3712

  • 84G3712 - SCREW THD ROLLING TT

15 46K5

  • 46K5 - ELBOW

16 46K8

  • 46K8 - ELBOW

17 86F5

  • 86F5 - NUT

18 86F8

  • 86F8 - NUT 5

19 6624289

  • 6624289 - STRAP
  • TIE

20 6592506

  • 6592506 - CLAMP

21 872229

  • 872229 - WASHER

22 84G3740

  • 84G3740 - BOLT

23 17C640

  • 17C640 - BOLT

24 59D6

  • 59D6 - NUT LOCK HEX PT

25 7199872

  • 7199872 - SPACER
  • TUBE

26 6697942

  • 6697942 - PLUG
  • NYLON

27 7199814

  • 7199814 - CLAMP
  • HOSE

28 7199815

  • 7199815 - CLAMP
  • HOSE

29 37C636

  • 37C636 - BOLT

30 7246784

  • 7246784 - BLOCK
  • COUPLER ASSY
  • Ref. 11 & 32-36

31 7246799

  • 7246799 - COUPLER
  • FF MALE

32 7246798

  • 7246798 - COUPLER
  • FF MALE
  • casedrain - W/valve
  • spring
  • seal & O-ring

33 7246802

  • 7246802 - COUPLER
  • FF FEMALE

34 7246800

  • 7246800 - FITTING
  • HYD CONNECTOR
  • W/spring - Was 7246801

35 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR

36 79K6

  • 79K6 - O RING 10

37 77F8

  • 77F8 - ELBOW

38 7154522

  • 7154522 - TUBELINE

39 7154523

  • 7154523 - TUBELINE
