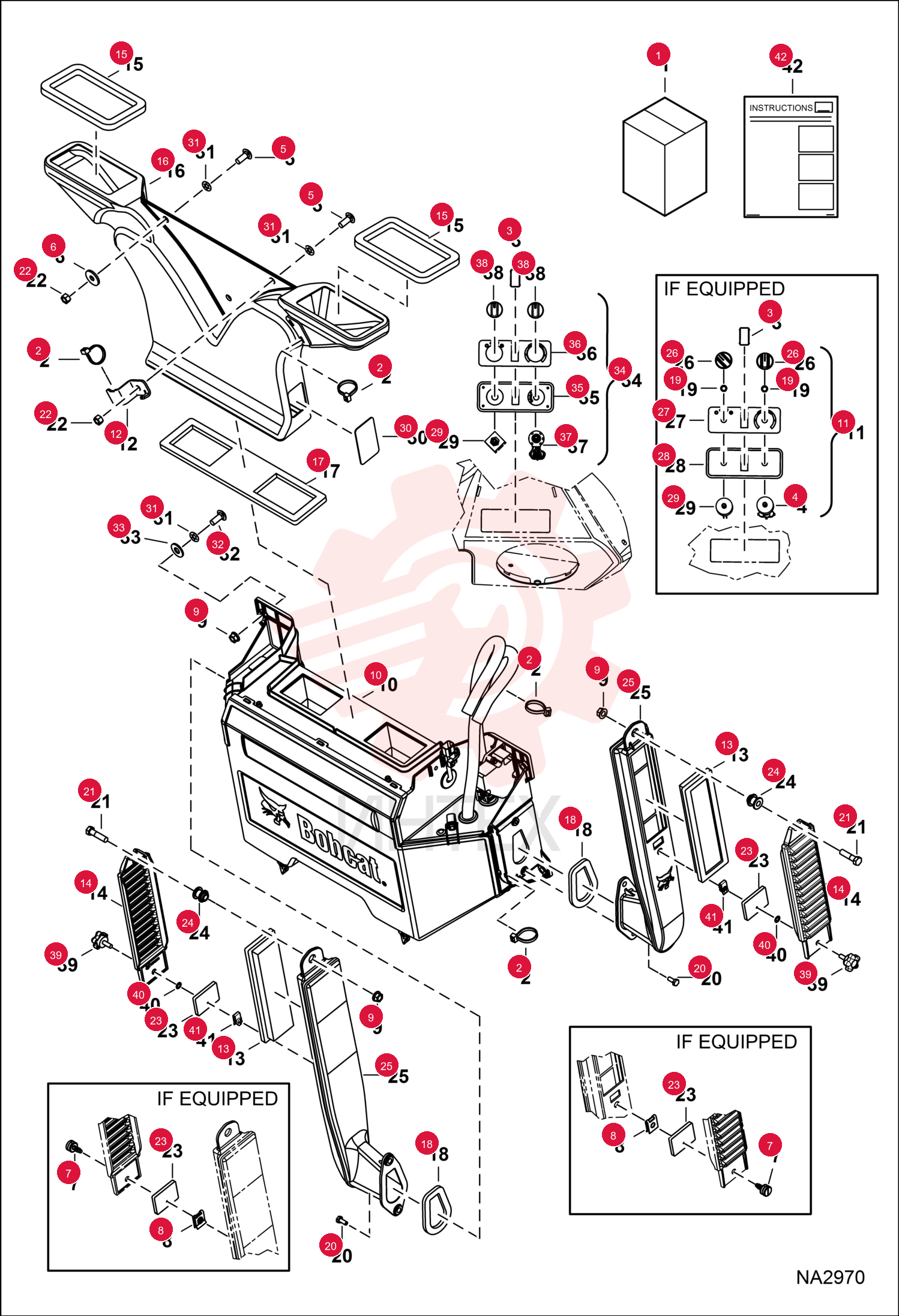

KIT, HEATER 7128484

KIT, HEATER 7128484

KIT, HEATER 7128484

1 7128484

  • 7128484 - KIT
  • HEATER
  • Ref
  • 2
  • 5-10
  • 13-18
  • 21-25 & 29-42 - Also order 7203232 jumper harness & 7203233 jumper harness

2 6624289

  • 6624289 - STRAP
  • TIE

3 6675181

  • 6675181 - PLUG SWITCH HOLE
  • not in kit

4 7168604

  • 7168604 - RESISTOR
  • temp control - W/Ref. 19 - not in kit

5 10C616

  • 10C616 - BOLT SHRT SQ NK RHD? 3/8-16X1 GRD 5

6 619021

  • 619021 - WASHER

7 7000983

  • 7000983 - SCREW
  • W/Ref. 8

8 7000984

  • 7000984 - CLIP

9 97D6

  • 97D6 - NUT 10

10 7240823

  • 7240823 - PANEL
  • CONTROL
  • W/Ref. 4 & 26-29 - Was 7176309

11 7192569

  • 7192569 - BRACKET
  • not in kit

12 7176099

  • 7176099 - FILTER
  • AIR FRESH 10

13 7176100

  • 7176100 - COVER

14 7165673

  • 7165673 - SEAL
  • CAB DUCT

15 7257309

  • 7257309 - DUCT
  • Was 7197262

16 7257310

  • 7257310 - SEAL
  • DUCT CENTER
  • Was 7167405

17 7176579

  • 7176579 - SEAL
  • FOAM

18 6702642

  • 6702642 - SCREW WSHRD PLASTITE

19 17C624

  • 17C624 - BOLT 5

20 95D6

  • 95D6 - NUT HEXAGON

21 7176943

  • 7176943 - SEAL
  • COVER

22 7176942

  • 7176942 - SPACER

23 7176101

  • 7176101 - DUCT
  • AIR

24 6675177

  • 6675177 - KNOB
  • not in kit

25 7011061

  • 7011061 - DECAL
  • not in kit

26 7011062

  • 7011062 - PANEL
  • CONTROL
  • not in kit

27 6675176

  • 6675176 - SWITCH
  • blower motor

28 7197973

  • 7197973 - COVER

29 6674894

  • 6674894 - NUT
  • LOCK

30 10C620

  • 10C620 - BOLT

31 25E18

  • 25E18 - WASHER FLAT PLAIN

32 7240823

  • 7240823 - PANEL
  • CONTROL
  • W/Ref. 35-38 & 29

33 7254992

  • 7254992 - PANEL
  • CONTROL

34 7254993

  • 7254993 - DECAL

35 7244206

  • 7244206 - POTENTIOMETER
  • HVAC

36 7244207

  • 7244207 - KNOB

37 7301022

  • 7301022 - SCREW KNOB
  • W/Ref. 40 & 41

38 6675212

  • 6675212 - RETAINER BOLT

39 7160765

  • 7160765 - NUT

40 6990847ENUS

  • 6990847ENUS - INSTRUCTIONS
  • Was 6990847
