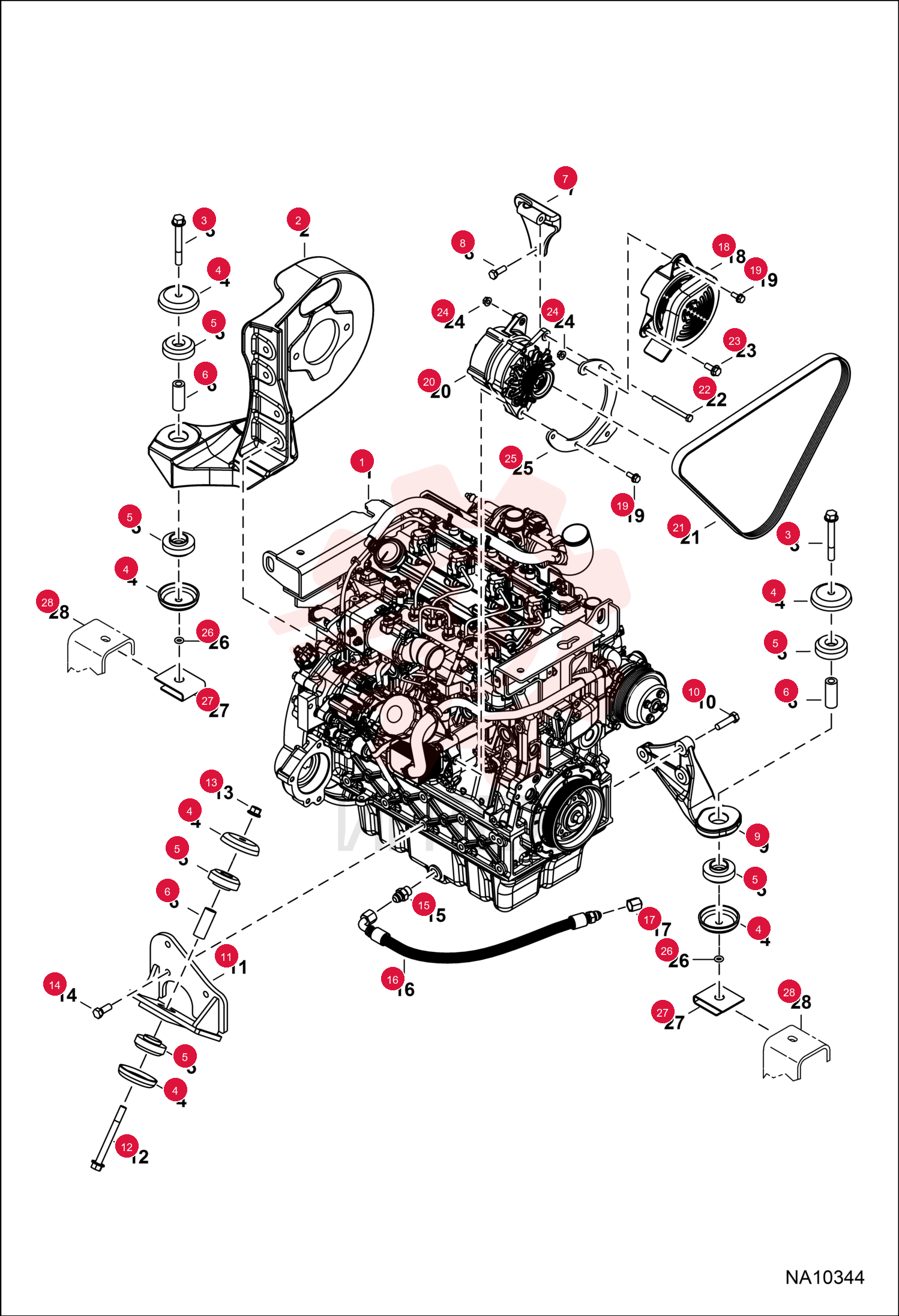

MOUNT, ENG/PUMP 7201041

MOUNT, ENG/PUMP 7201041

MOUNT, ENG/PUMP 7201041

1 7201041

  • 7201041 - MOUNT
  • ENG/PUMP

2 31C864

  • 31C864 - BOLT

3 7116851

  • 7116851 - CUP

4 7000489

  • 7000489 - DAMPER

5 7141405

  • 7141405 - BUSHING

6 7201363

  • 7201363 - MOUNT
  • ALT

7 1CM1030

  • 1CM1030 - BOLT

8 7201039

  • 7201039 - MOUNT
  • ENG

9 4CM1245

  • 4CM1245 - SCREW
  • Was 1CM1245

10 7211563

  • 7211563 - MOUNT
  • ENG

11 31C880

  • 31C880 - SCREW

12 83D8

  • 83D8 - LKNUT HEX FLG GR8

13 4CM1230

  • 4CM1230 - SCREW
  • Was 1CM1230

14 15KB0808

  • 15KB0808 - FTG HYD S CONNECTOR

15 7234109

  • 7234109 - HOSE
  • DRAIN

16 36K6

  • 36K6 - CAP

17 7238332

  • 7238332 - SHIELD
  • ALT

18 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

19 7185269

  • 7185269 - BELT
  • ACCESSORY
  • alternator

20 1CM8110

  • 1CM8110 - SCREW HEX HD 8.8

21 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

22 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

23 7243575

  • 7243575 - MOUNT
  • ALT

24 7120149

  • 7120149 - O-RING
  • RETAINING

25 7152037

  • 7152037 - NUT
  • RETAINING
