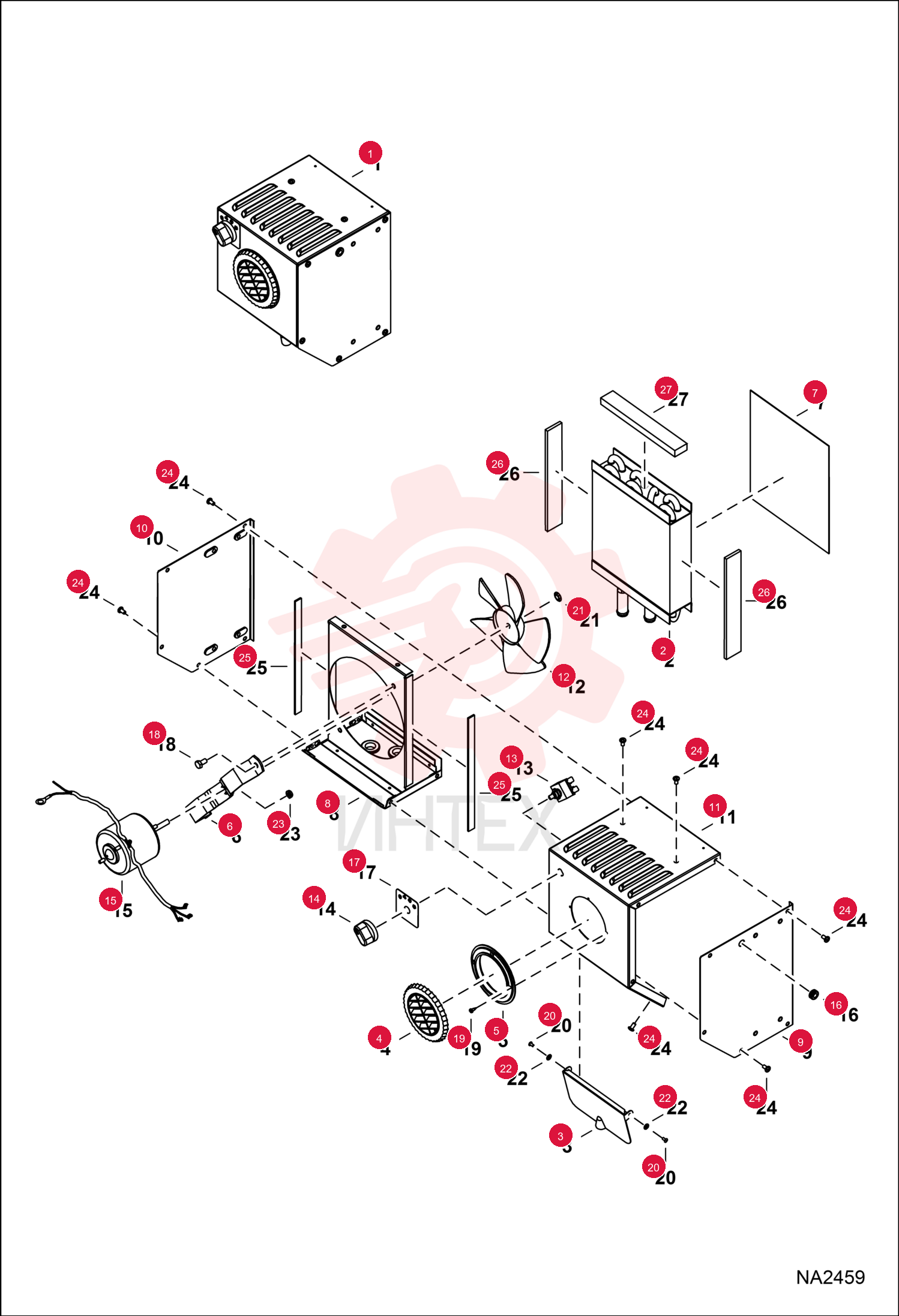

HVAC ASSEMBLY 7010530

HVAC ASSEMBLY 7010530

HVAC ASSEMBLY 7010530

1 7010530

  • 7010530 - HVAC ASSEMBLY
  • Ref. 2-27

2 7011926

  • 7011926 - COIL
  • HEATER

3 7011927

  • 7011927 - DOOR

4 7011928

  • 7011928 - LOUVER

5 6675179

  • 6675179 - FLANGE

6 7011929

  • 7011929 - BRACKET

7 7011930

  • 7011930 - SCREEN
  • EXCHANGER

8 7011931

  • 7011931 - BASE ASSY

9 7011932

  • 7011932 - COVER
  • RH

10 7011933

  • 7011933 - COVER
  • LH

11 7011934

  • 7011934 - COVER

12 7011935

  • 7011935 - FAN

13 6675176

  • 6675176 - SWITCH

14 6684940

  • 6684940 - KNOB

15 7011936

  • 7011936 - MOTOR
  • FAN

16 6684947

  • 6684947 - GROMMET

17 7011937

  • 7011937 - DECAL

18 7011938

  • 7011938 - SCREW
  • MACHINE

19 6684951

  • 6684951 - SCREW

20 7003466

  • 7003466 - RIVET
  • POP

21 6679674

  • 6679674 - SPRING
  • RETAINER

22 7011939

  • 7011939 - WASHER
  • SPRING

23 7011940

  • 7011940 - NUT
  • LOCK

24 7011941

  • 7011941 - SCREW
  • MACHINE
