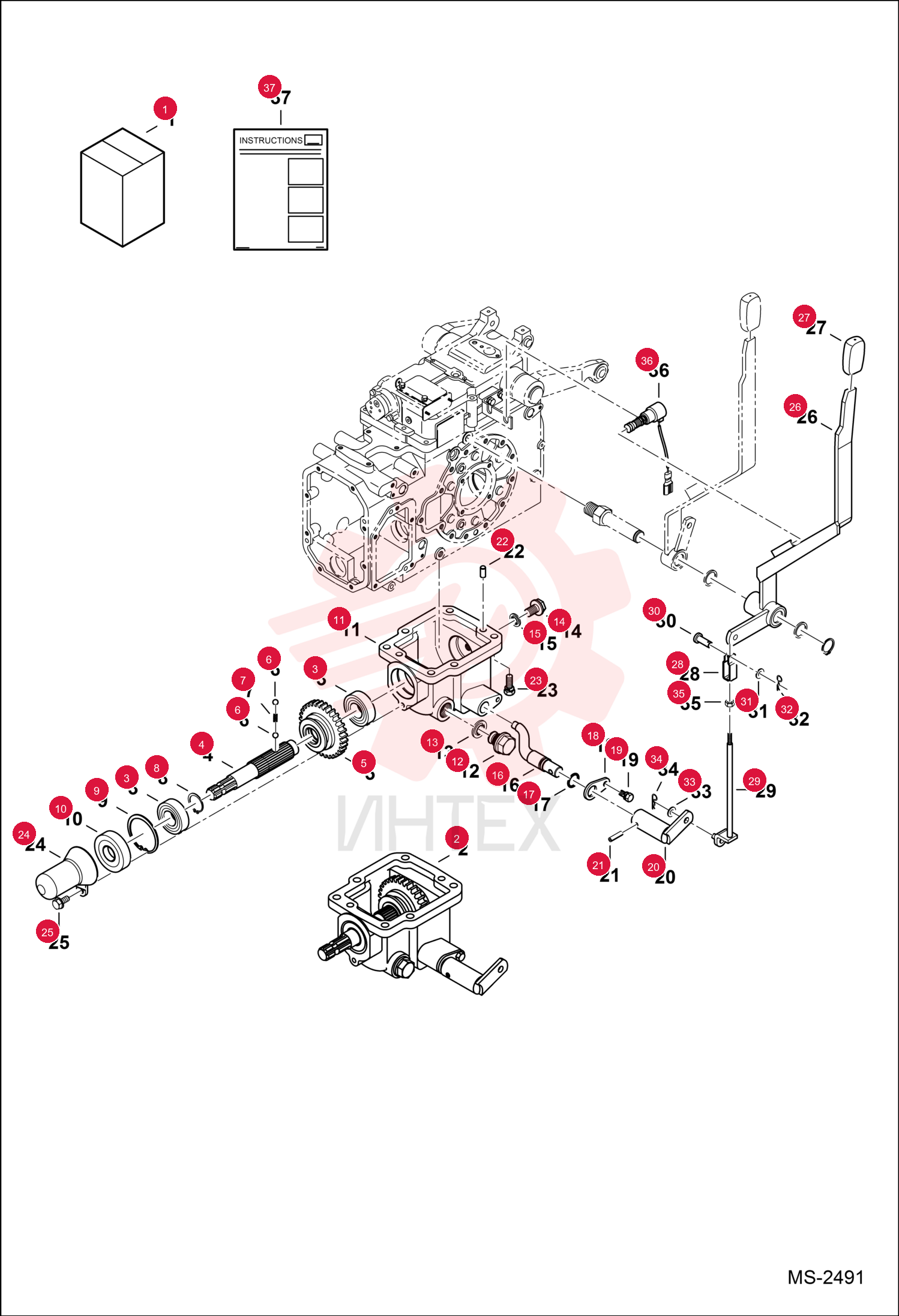

KIT, MID PTO 7150490

KIT, MID PTO 7150490

1 7150490

  • 7150490 - KIT
  • MID PTO
  • Ref. 2-37

2 6697018

  • 6697018 - TRANSMISSION
  • MID PTO ASSY

3 6694241

  • 6694241 - BEARING BALL

4 6697634

  • 6697634 - SHAFT
  • MID PTO

5 6697277

  • 6697277 - GEAR 32 MID PTO

6 6694231

  • 6694231 - BALL STEEL

7 6696739

  • 6696739 - SPRING

8 6694112

  • 6694112 - RING SNAP

9 6694100

  • 6694100 - RING SNAP

10 6696576

  • 6696576 - SEAL OIL

11 6695710

  • 6695710 - HOUSING MID PTO

12 6694223

  • 6694223 - PLUG

13 6694126

  • 6694126 - WASHER SEAL

14 6697538

  • 6697538 - PLUG

15 6694129

  • 6694129 - WASHER SEAL

16 6697012

  • 6697012 - ARM
  • SHIFT MID

17 6694146

  • 6694146 - O-RING

18 6696770

  • 6696770 - STOP

19 6697053

  • 6697053 - BOLT

20 6698003

  • 6698003 - LEVER

21 6694197

  • 6694197 - PIN SPRING

22 6694171

  • 6694171 - PIN STRAIGHT

23 6693982

  • 6693982 - BOLT

24 6698016

  • 6698016 - COVER

25 6694027

  • 6694027 - BOLT FLANGE

26 6697423

  • 6697423 - LEVER MID PTO

27 6694967

  • 6694967 - HANDLE
  • GRIP

28 6697578

  • 6697578 - ROD
  • MAIN CHANGE

29 6696520

  • 6696520 - ROD
  • PTO MID

30 6697492

  • 6697492 - PIN JOINT

31 6694079

  • 6694079 - WASHER PLAIN

32 6697496

  • 6697496 - PIN SNAP

33 6696406

  • 6696406 - WASHER

34 6696346

  • 6696346 - PIN SNAP

35 6694048

  • 6694048 - NUT

36 6697718

  • 6697718 - SWITCH SAFETY STARTER
  • PTO

37 6986729

  • 6986729 - INSTRUCTIONS
