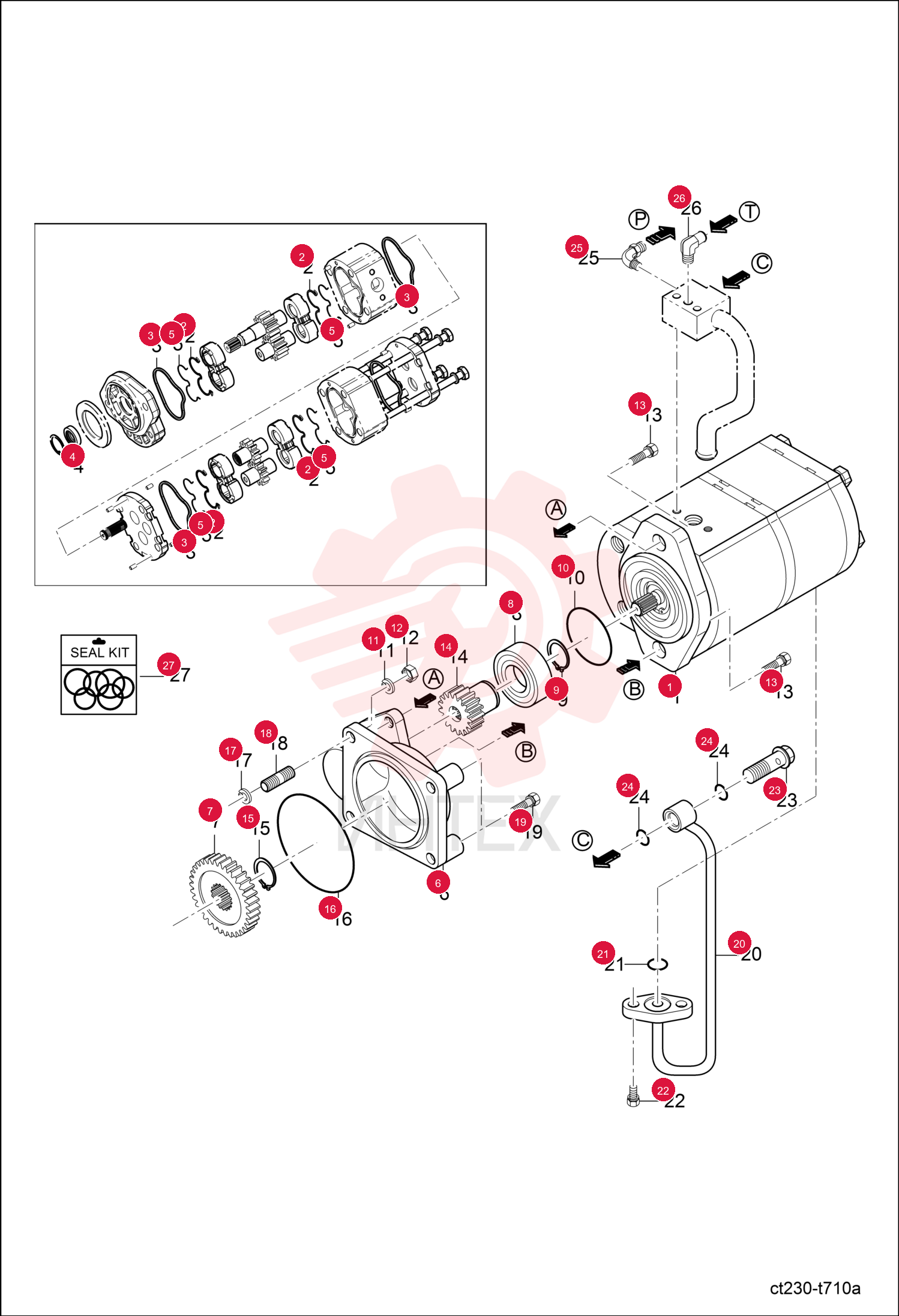

PUMP, HYD 7031630

PUMP, HYD 7031630

PUMP, HYD 7031630

1 7031630

  • 7031630 - PUMP
  • HYD
  • T2195-31501 - BREAKDOWN PARTS NSS

2 6696568

  • 6696568 - SEAL

3 6697852

  • 6697852 - SEAL

4 6695439

  • 6695439 - RING BACK

5 6696097

  • 6696097 - BRACKET
  • PUMP GEAR

6 6696023

  • 6696023 - GEAR 34

7 6695450

  • 6695450 - BEARING
  • BALL

8 6694110

  • 6694110 - RING SNAP

9 6696274

  • 6696274 - O-RING

10 6697775

  • 6697775 - WASHER SPRING

11 6652792

  • 6652792 - NUT
  • Was 6694053

12 6697060

  • 6697060 - BOLT

13 6695989

  • 6695989 - GEAR 17

14 6696496

  • 6696496 - RING SNAP

15 6696275

  • 6696275 - O-RING

16 6697775

  • 6697775 - WASHER SPRING

17 6694011

  • 6694011 - STUD

18 6695503

  • 6695503 - BOLT

19 6697757

  • 6697757 - TUBELINE
  • PUMP GEAR

20 6694136

  • 6694136 - O-RING

21 6697054

  • 6697054 - BOLT

22 6696164

  • 6696164 - BOLT JOINT

23 6694136

  • 6694136 - O-RING

24 6695270

  • 6695270 - FITTING
  • ELBOW

25 6695891

  • 6695891 - ELBOW (RETURN)

26 7314007

  • 7314007 - KIT SEAL
  • PUMP
  • HYD 7031630

27 7023594

  • 7023594 - KIT
  • SEAL
  • Ref. 2-5 - Use for pump 6697551
