CT230
/

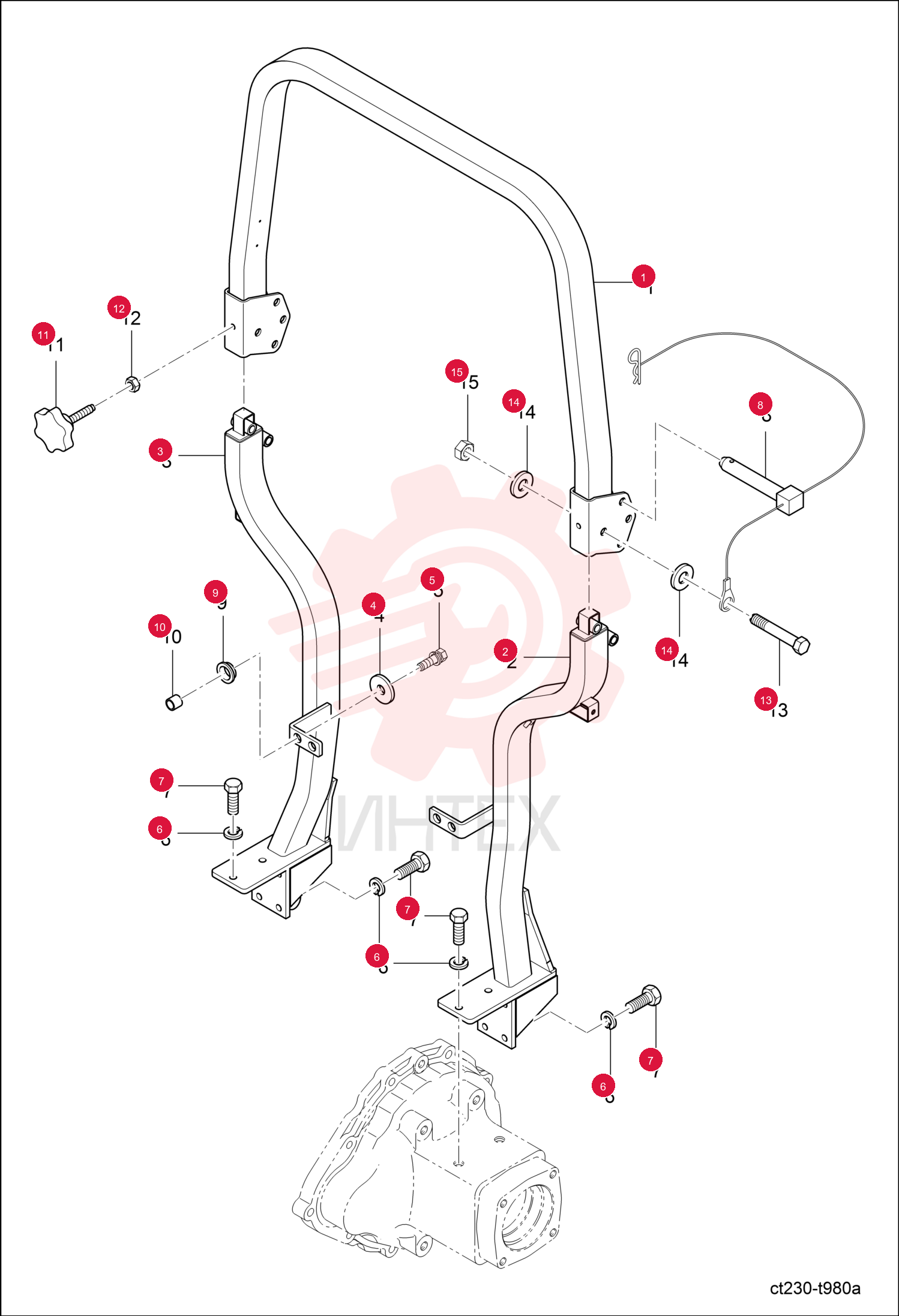

ROPS 6697587

ROPS 6697587

ROPS 6697587

1 6697587

  • 6697587 - ROPS

2 6697710

  • 6697710 - SUPPORT
  • ROPS LH

3 6697711

  • 6697711 - SUPPORT
  • ROPS RH

4 6696911

  • 6696911 - WASHER
  • PLAIN

5 6695514

  • 6695514 - BOLT

6 6694094

  • 6694094 - WASHER SPRING

7 6695549

  • 6695549 - BOLT

8 6697486

  • 6697486 - PIN
  • SET ROPS

9 6696059

  • 6696059 - GROMMET

10 6695741

  • 6695741 - BUSHING

11 6694840

  • 6694840 - BOLT

12 6697458

  • 6697458 - NUT

13 6695533

  • 6695533 - BOLT

14 6696914

  • 6696914 - WASHER PLAIN

15 6696252

  • 6696252 - NUT
