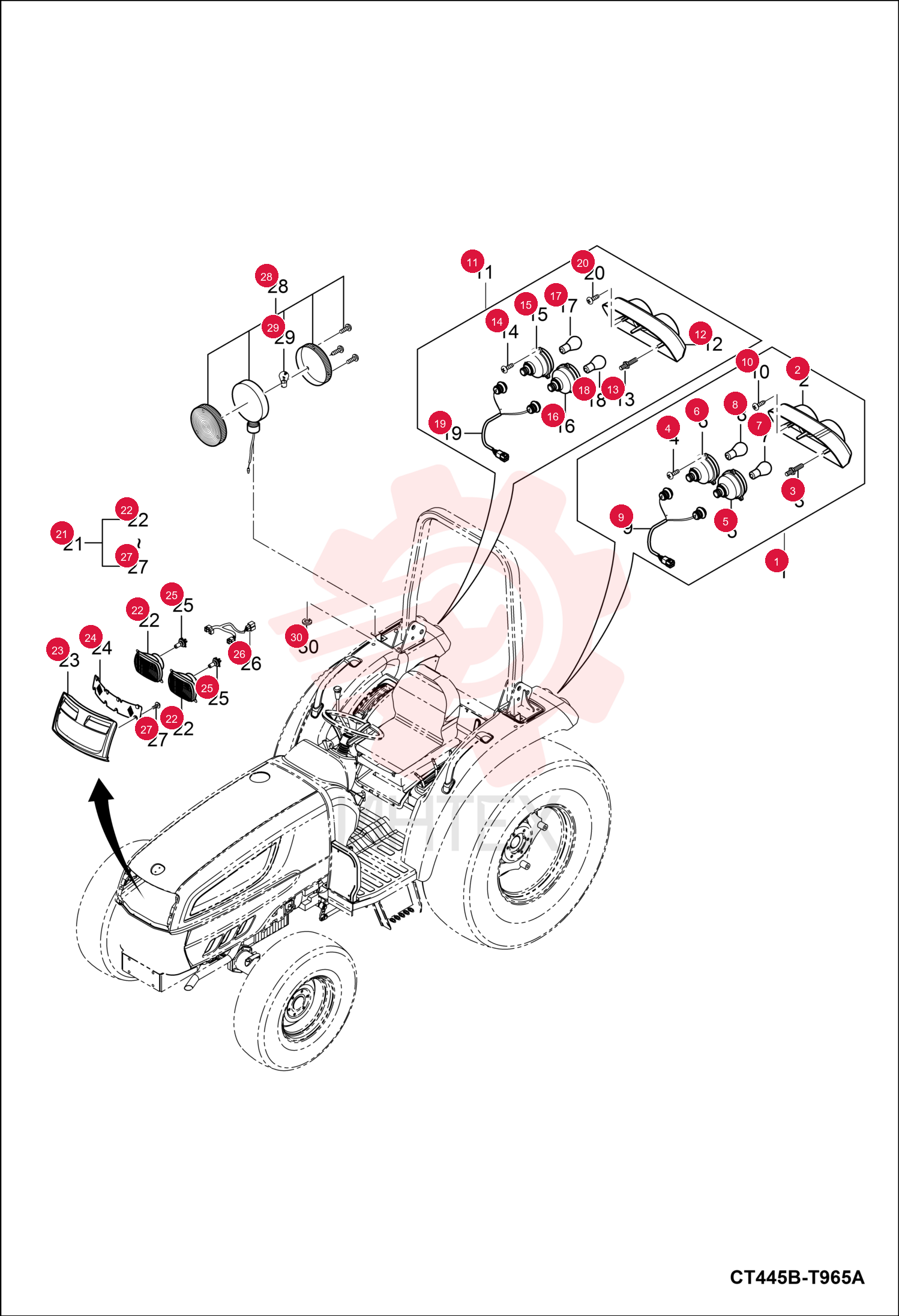

LAMP, TAIL LH 7002010 (1)

LAMP, TAIL LH 7002010 (1)

LAMP, TAIL LH 7002010 (1)

1 7002010

  • 7002010 - LAMP
  • TAIL LH
  • assy - Ref. 2-10

2 7002335

  • 7002335 - LAMP
  • REAR LH

3 7002494

  • 7002494 - BOLT

4 6694386

  • 6694386 - SCREW

5 6696471

  • 6696471 - LIGHT
  • REAR TURN SIGNAL
  • yellow

6 6697437

  • 6697437 - LIGHT
  • STOP TAIL
  • red

7 6695646

  • 6695646 - LIGHT
  • BULB 12V P21W

8 6695645

  • 6695645 - LIGHT
  • BULB 12V P21/5W

9 7002261

  • 7002261 - HARNESS
  • LIGHT

10 7002646

  • 7002646 - SCREW

11 7002025

  • 7002025 - LAMP
  • TAIL RH
  • assy - Ref. 12-20

12 7002336

  • 7002336 - LAMP
  • REAR RH

13 7002494

  • 7002494 - BOLT

14 6694386

  • 6694386 - SCREW

15 6696471

  • 6696471 - LIGHT
  • REAR TURN SIGNAL
  • yellow

16 6697437

  • 6697437 - LIGHT
  • STOP TAIL
  • red

17 6695646

  • 6695646 - LIGHT
  • BULB 12V P21W

18 6695645

  • 6695645 - LIGHT
  • BULB 12V P21/5W

19 7002261

  • 7002261 - HARNESS
  • LIGHT

20 7002646

  • 7002646 - SCREW

21 7001969

  • 7001969 - LIGHT
  • FRONT ASSY
  • Ref. 22-27

22 7002213

  • 7002213 - LIGHT
  • HEAD

23 7002215

  • 7002215 - HOUSING
  • HEAD LAMP

24 7001996

  • 7001996 - SCREEN
  • GRILL FRONT

25 6695651

  • 6695651 - LIGHT
  • BULB 12V35/35W

26 7002214

  • 7002214 - HARNESS
  • HEAD LAMP

27 6697611

  • 6697611 - SCREW

28 7002031

  • 7002031 - LIGHT
  • INDICATOR TURN SIGNALS
  • W/Ref. 29

29 6697431

  • 6697431 - LIGHT
  • BULB 12V 21W

30 6694093

  • 6694093 - WASHER SPRING
