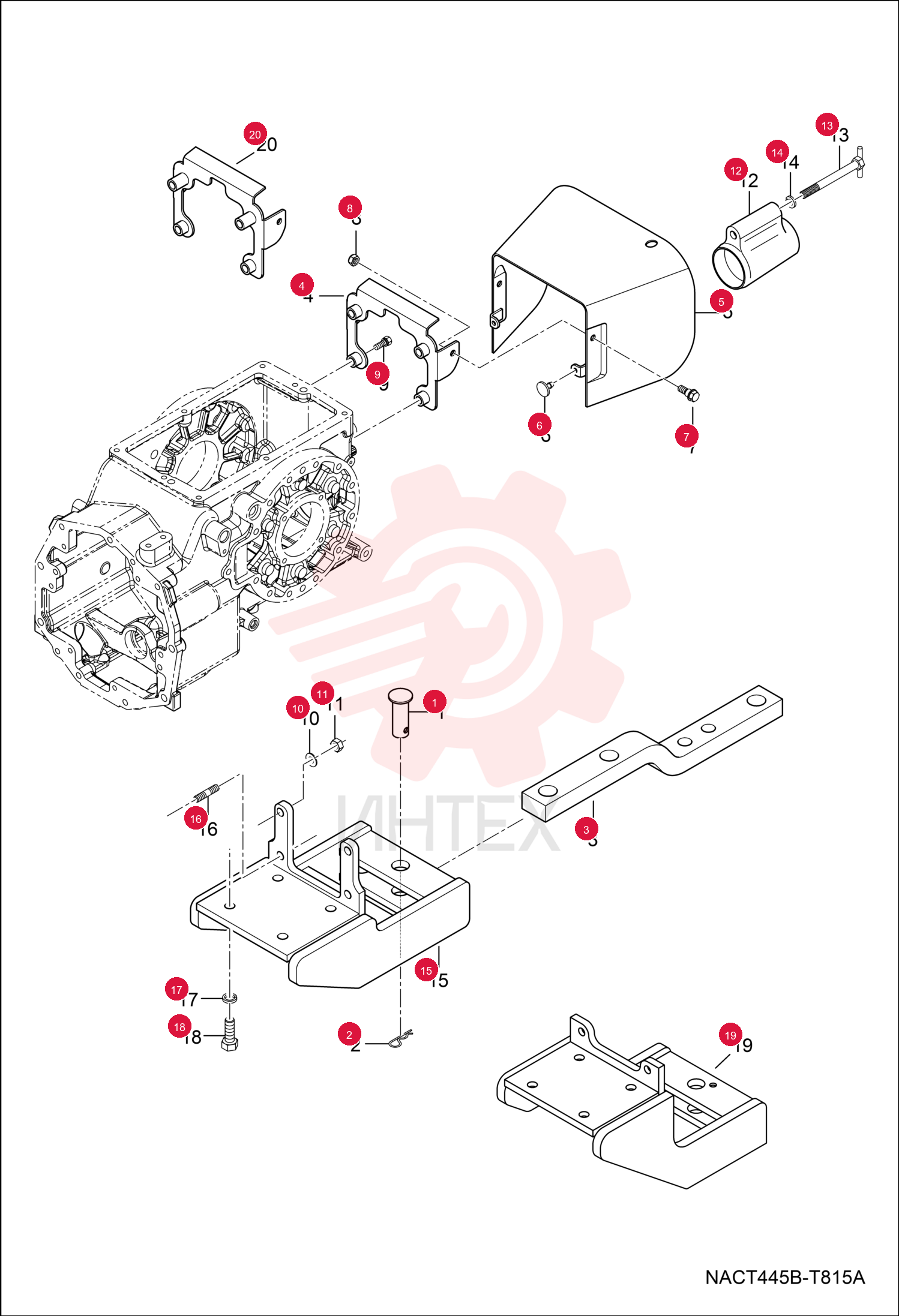

PIN JOINT 6696366 (2)

PIN JOINT 6696366 (2)

PIN JOINT 6696366 (2)

1 6696366

  • 6696366 - PIN JOINT

2 6696376

  • 6696376 - PIN SNAP

3 7002853

  • 7002853 - DRAWBAR

4 7002931

  • 7002931 - BRACKET
  • COVER PTO SHIELD
  • Use W/Ref. 15

5 6697173

  • 6697173 - COVER
  • PTO SHIELD

6 6697137

  • 6697137 - HOUSING CASEING

7 6697612

  • 6697612 - SCREW

8 6697860

  • 6697860 - NUT

9 6693989

  • 6693989 - BOLT

10 6697776

  • 6697776 - WASHER SPRING

11 6694060

  • 6694060 - NUT

12 6694362

  • 6694362 - COVER

13 6694361

  • 6694361 - BOLT

14 6697780

  • 6697780 - WASHER

15 7002883

  • 7002883 - FRAME
  • SWING DRAWBAR
  • Use W/Ref. 4

16 7002685

  • 7002685 - STUD

17 6694094

  • 6694094 - WASHER SPRING

18 6694001

  • 6694001 - BOLT

19 7002138

  • 7002138 - FRAME
  • DRAWBAR
  • Use W/Ref. 20

20 7002018

  • 7002018 - BRACKET
  • SHIELD PTO
  • Use W/Ref. 19
