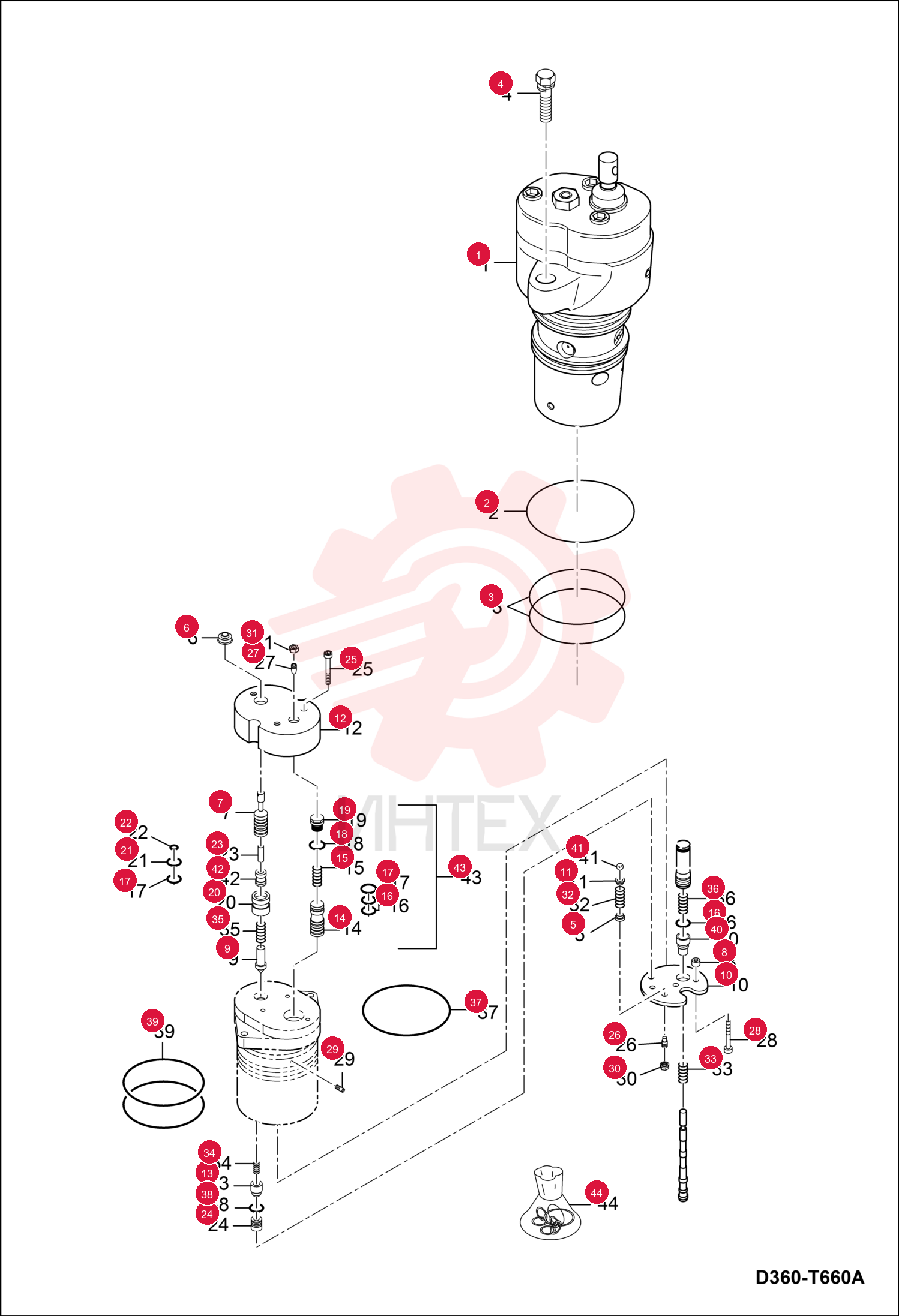

VALVE, MLS (MORE STEPS) 7000303 (3)

VALVE, MLS (MORE STEPS) 7000303 (3)

VALVE, MLS (MORE STEPS) 7000303 (3)

1 7000303

  • 7000303 - VALVE
  • MLS (MORE STEPS)

2 7002598

  • 7002598 - ORING

3 7002599

  • 7002599 - ORING

4 6693967

  • 6693967 - BOLT

5 6694281

  • 6694281 - SPACER

6 6694282

  • 6694282 - GUIDE
  • RUBBER

7 6697826

  • 6697826 - KIT
  • LEVER

8 6694283

  • 6694283 - SPACER

9 6694284

  • 6694284 - VALVE

10 6694285

  • 6694285 - PLATE

11 6694287

  • 6694287 - SPACER

12 6694288

  • 6694288 - COVER

13 6694289

  • 6694289 - VALVE

14 6694290

  • 6694290 - VALVE

15 6694367

  • 6694367 - SPRING

16 6694375

  • 6694375 - O-RING

17 6694376

  • 6694376 - O-RING

18 6694378

  • 6694378 - O-RING

19 6696442

  • 6696442 - PLUG

20 6694291

  • 6694291 - VALVE
  • SEAT

21 6694373

  • 6694373 - O-RING

22 6694374

  • 6694374 - O-RING

23 6694393

  • 6694393 - PIN

24 6694292

  • 6694292 - VALVE SEAT

25 6694343

  • 6694343 - SCREW
  • ADJUSTING

26 6694344

  • 6694344 - SCREW ADJUSTING

27 6694345

  • 6694345 - SCREW

28 6694346

  • 6694346 - SCREW ADJUSTING

29 6696554

  • 6696554 - SCREW

30 6694348

  • 6694348 - NUT

31 6694349

  • 6694349 - NUT

32 6694363

  • 6694363 - SPRING

33 6694364

  • 6694364 - SPRING

34 6694365

  • 6694365 - SPRING

35 6694366

  • 6694366 - SPRING

36 6694368

  • 6694368 - SPRING

37 6694372

  • 6694372 - PIN 10X65 DIN1481

38 6694377

  • 6694377 - O-RING

39 6694379

  • 6694379 - O-RING

40 6694390

  • 6694390 - PLUG

41 6694392

  • 6694392 - BALL

42 6694286

  • 6694286 - VALVE

43 6697820

  • 6697820 - VALVE

44 7002360

  • 7002360 - KIT
  • SEAL
