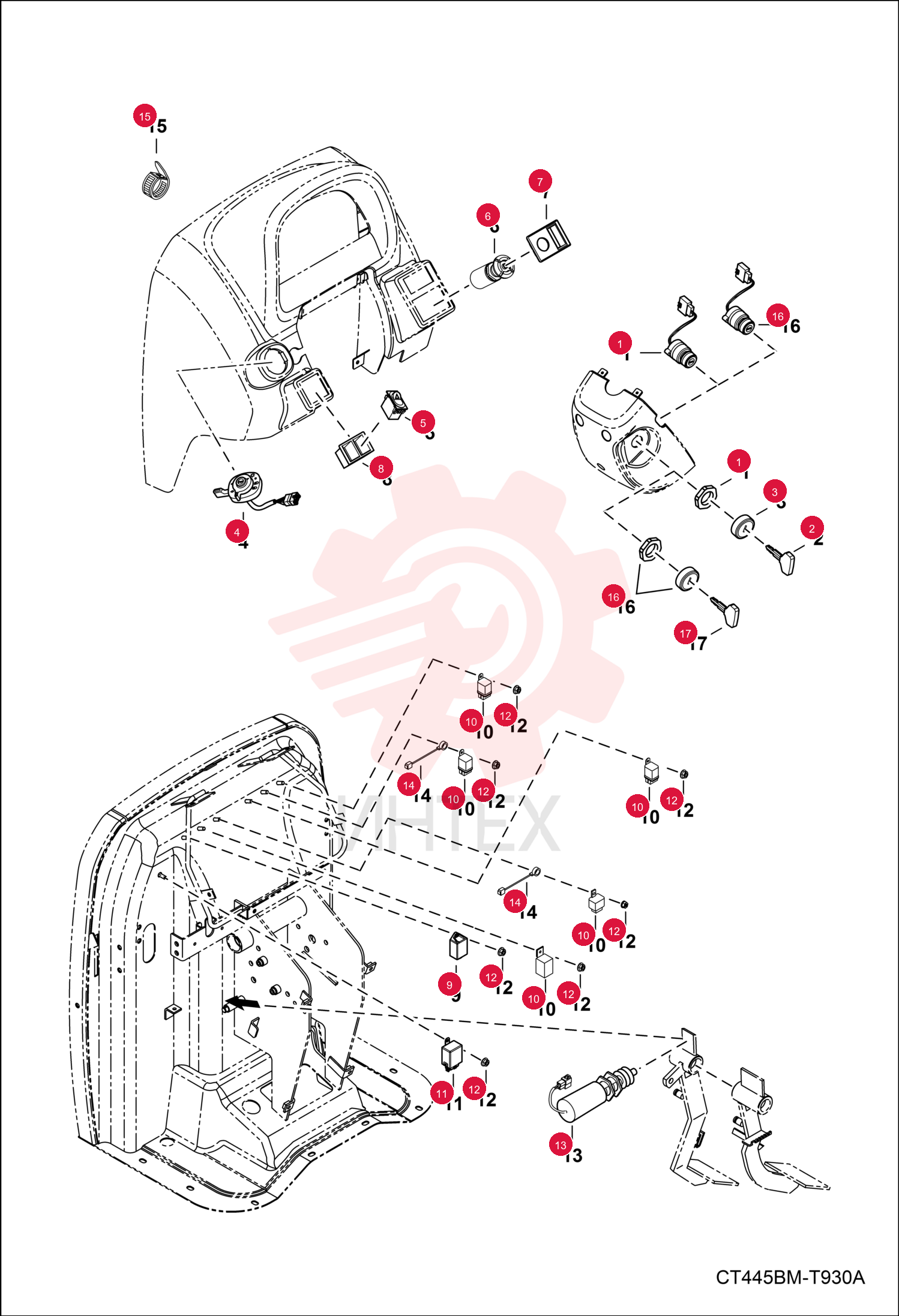

SWITCH STARTER 6697720 (3)

SWITCH STARTER 6697720 (3)

SWITCH STARTER 6697720 (3)

1 6697720

  • 6697720 - SWITCH STARTER
  • W/Ref. 2

2 6697386

  • 6697386 - 2 KEYS

3 7010199

  • 7010199 - COVER
  • SWITCH
  • optional

4 7250061

  • 7250061 - SWITCH
  • COMBINATION
  • Was 7002103

5 7002347

  • 7002347 - SWITCH
  • ROCKER

6 7002321

  • 7002321 - SWITCH
  • PTO

7 7002019

  • 7002019 - COVER
  • SWITCH PTO

8 7002421

  • 7002421 - FRAME
  • SWITCH

9 6697980

  • 6697980 - FLASHER

10 6697557

  • 6697557 - RELAY

11 6697546

  • 6697546 - RELAY
  • PREHEATER

12 6696258

  • 6696258 - NUT FLANGE

13 7000912

  • 7000912 - SWITCH
  • BRAKE SAFETY

14 6697324

  • 6697324 - HARNESS WIRE

15 6697027

  • 6697027 - BAND CORD

16 6697720

  • 6697720 - SWITCH STARTER
  • W/Ref. 17 - Was 7025591

17 7025594

  • 7025594 - KEY
  • IGN
  • use W/Ref. 16
