Bobcat
/
CT450
/

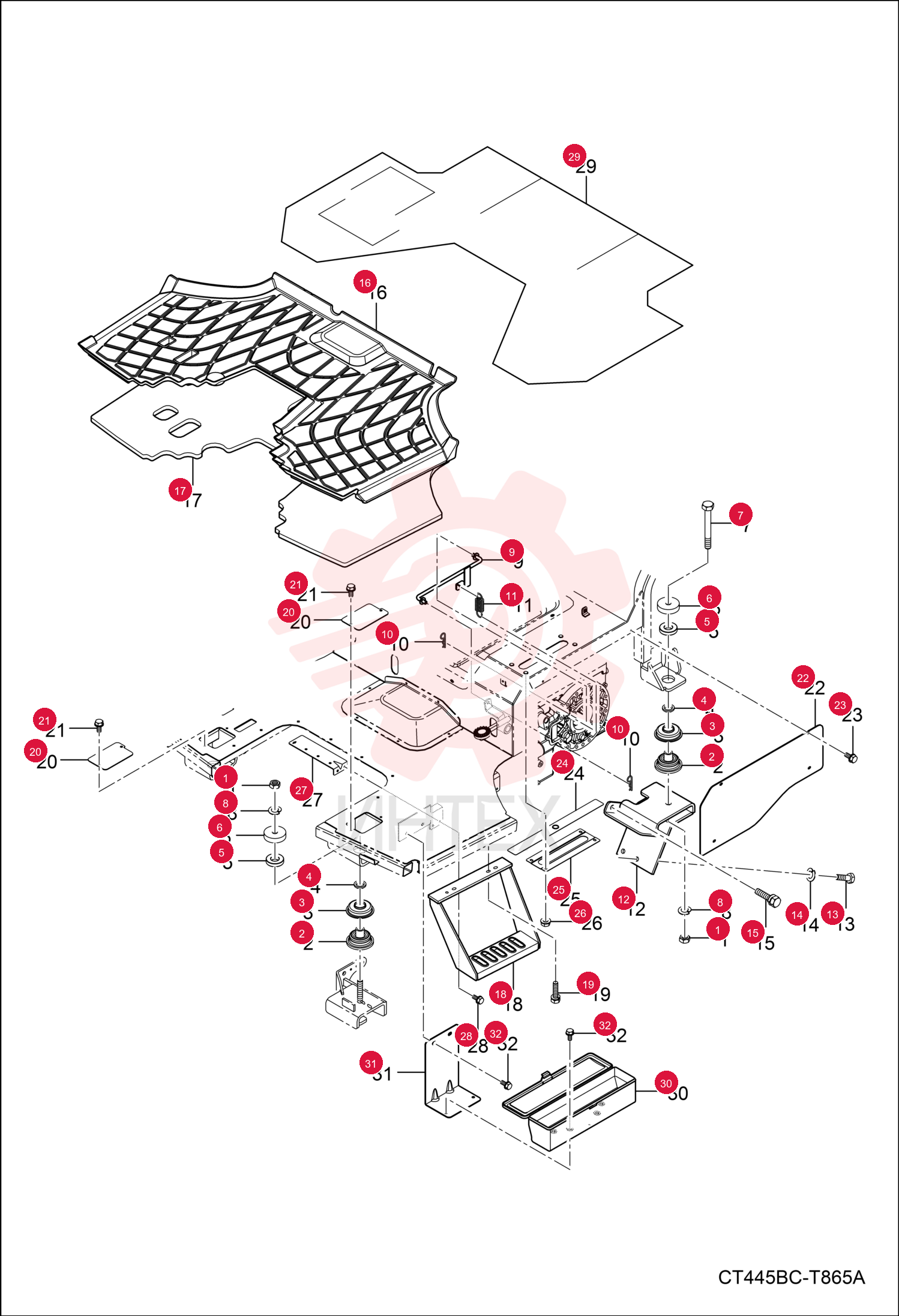

NUT 6694061

NUT 6694061

NUT 6694061

1 6694061

  • 6694061 - NUT

2 7003248

  • 7003248 - MOUNT
  • RUBBER

3 7003249

  • 7003249 - MOUNT
  • RUBBER

4 7003250

  • 7003250 - MOUNT
  • RUBBER

5 7003251

  • 7003251 - MOUNT
  • RUBBER

6 7003252

  • 7003252 - WASHER
  • CUSHION

7 7003430

  • 7003430 - BOLT

8 6694095

  • 6694095 - WASHER SPRING

9 7003114

  • 7003114 - ROD
  • DIFF SET

10 6694211

  • 6694211 - PIN
  • SNAP

11 7002307

  • 7002307 - SPRING
  • RETURN PEDAL

12 7003401

  • 7003401 - HOLDER
  • CHECK CHAIN

13 6695549

  • 6695549 - BOLT

14 6694094

  • 6694094 - WASHER SPRING

15 7003393

  • 7003393 - BOLT

16 7003196

  • 7003196 - MAT
  • STEP

17 7003130

  • 7003130 - INSULATION
  • FLOOR

18 7003129

  • 7003129 - STEP
  • CAB

19 6693982

  • 6693982 - BOLT

20 7003210

  • 7003210 - COVER

21 6695586

  • 6695586 - BOLT FLANGE

22 7003214

  • 7003214 - COVER

23 6695586

  • 6695586 - BOLT FLANGE

24 7003102

  • 7003102 - PLATE
  • GUIDE

25 7003103

  • 7003103 - PLATE
  • SLIDE

26 6696258

  • 6696258 - NUT FLANGE

27 7003131

  • 7003131 - BRACKET
  • HARNESS

28 6694024

  • 6694024 - BOLT FLANGE

29 7002176

  • 7002176 - PAD

30 7002437

  • 7002437 - BOX
  • TOOL

31 7003132

  • 7003132 - BRACKET

32 6694027

  • 6694027 - BOLT FLANGE
