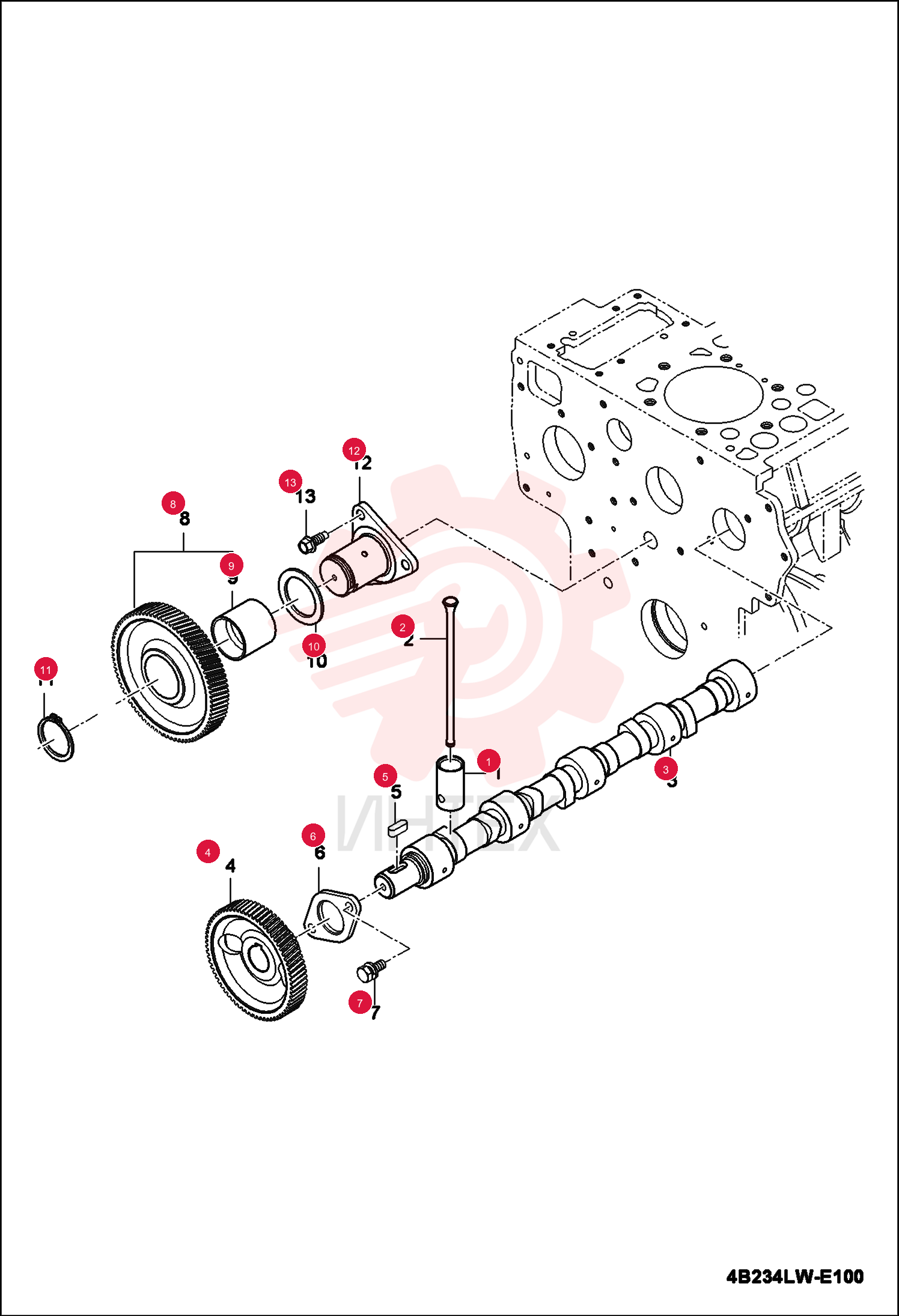

TAPPET 6696828 (3)

TAPPET 6696828 (3)

TAPPET 6696828 (3)

1 6696828

  • 6696828 - TAPPET

2 7002327

  • 7002327 - ROD
  • PUSH

3 7002830

  • 7002830 - CAMSHAFT
  • VALVE

4 6695681

  • 6695681 - GEAR CAMSHAFT

5 6696169

  • 6696169 - KEY

6 6695683

  • 6695683 - STOP CAMSHAFT

7 6695501

  • 6695501 - BOLT

8 6695377

  • 6695377 - GEAR ASSY IDLE
  • W/Ref. 9

9 6695659

  • 6695659 - BUSHING IDLE GEAR

10 6695750

  • 6695750 - WASHER

11 6695722

  • 6695722 - RING
  • SNAP

12 7000226

  • 7000226 - SHAFT
  • GEAR IDLE

13 6695569

  • 6695569 - BOLT FLANGE
