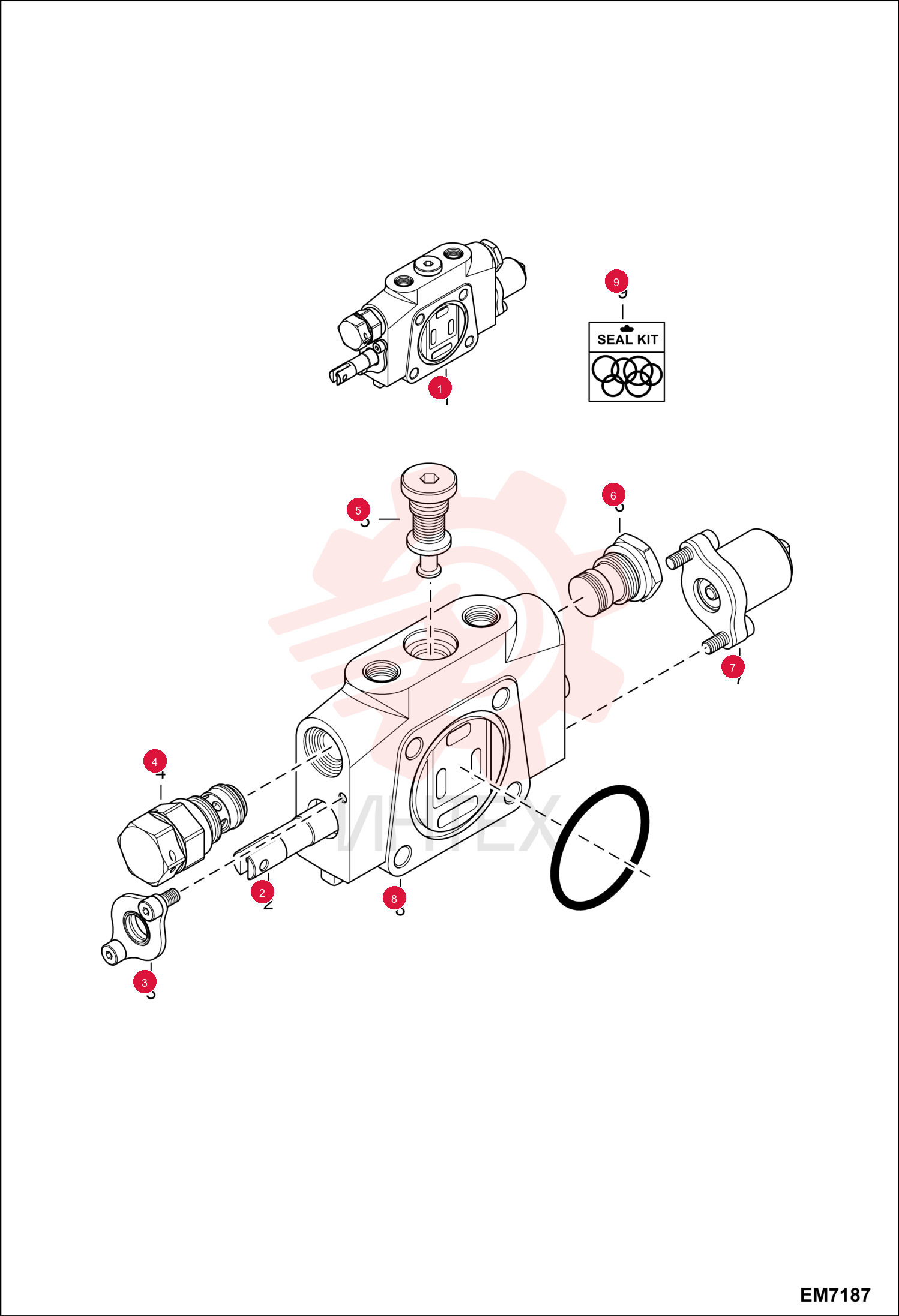

VALVE SECTION 7010907

VALVE SECTION 7010907

VALVE SECTION 7010907

1 7010907

  • 7010907 - VALVE SECTION
  • W/Ref. 2-8 - Was 7000527

2 7000522

  • 7000522 - SPOOL PLUG

3 7000518

  • 7000518 - CONTROL

4 7000510

  • 7000510 - VALVE COMBINED

5 7000517

  • 7000517 - VALVE CHECK
  • Was 7000515

6 6969770

  • 6969770 - PLUG KIT

7 7010906

  • 7010906 - SPOOL
  • RETURN ACTION
  • Was 7000521

8 7010908

  • 7010908 - KIT
  • SEAL
  • Was 7000547
