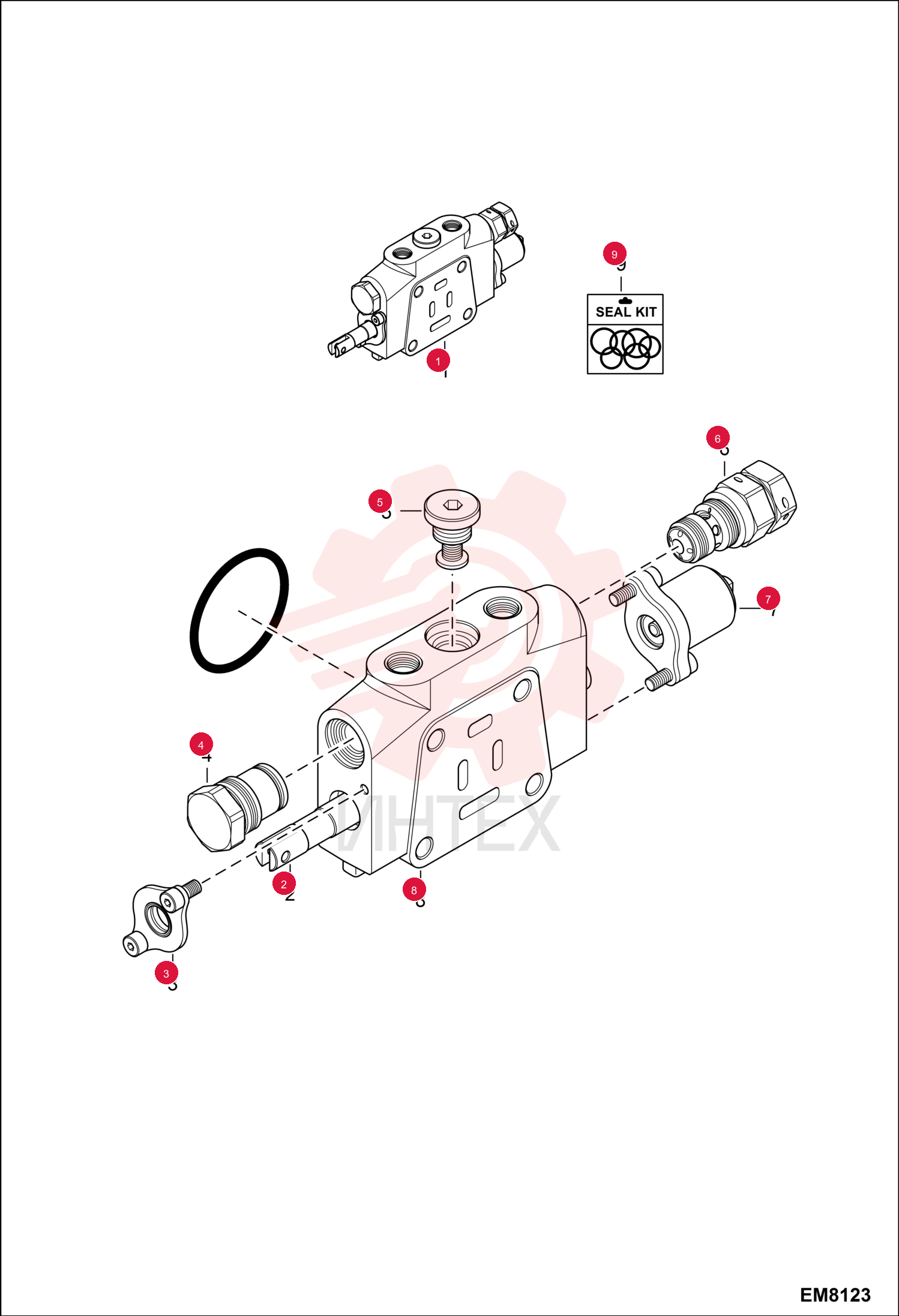

VALVE, SECTION 7022011 (1)

VALVE, SECTION 7022011 (1)

VALVE, SECTION 7022011 (1)

1 7022011

  • 7022011 - VALVE
  • SECTION
  • W/Ref. 2-8

2 7000522

  • 7000522 - SPOOL PLUG

3 7000518

  • 7000518 - CONTROL

4 6969770

  • 6969770 - PLUG KIT
  • Was 7011976

5 7000515

  • 7000515 - VALVE CHECK

6 7000511

  • 7000511 - VALVE

7 7010906

  • 7010906 - SPOOL
  • RETURN ACTION

8 7022022

  • 7022022 - KIT
  • SEALS
