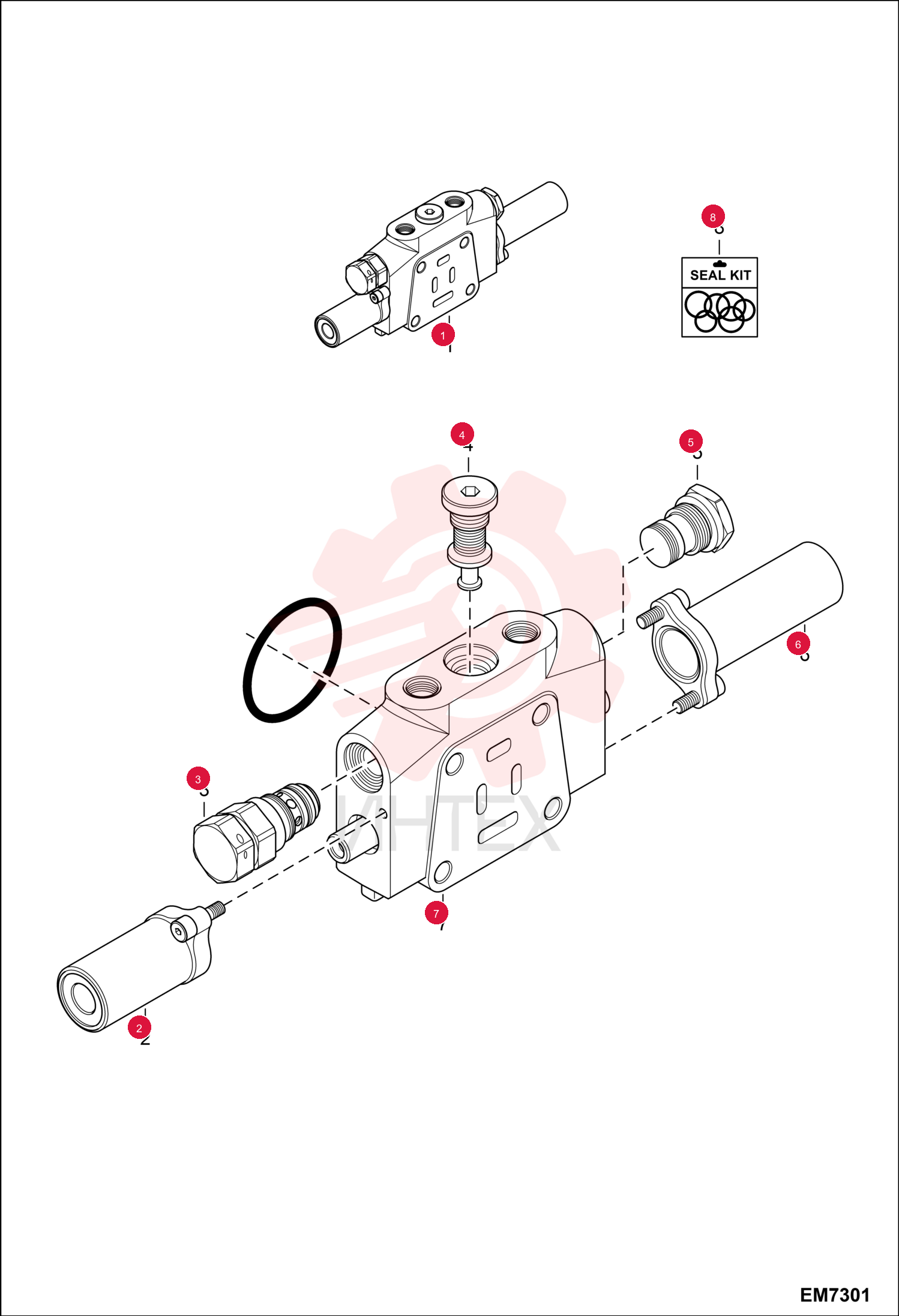

BUCKET SECTION 7189617

BUCKET SECTION 7189617

BUCKET SECTION 7189617

1 7189617

  • 7189617 - BUCKET SECTION
  • Ref. 2-7 - Was 7010912

2 7000519

  • 7000519 - CONTROL

3 7000511

  • 7000511 - VALVE

4 6653455

  • 6653455 - O RING

5 6969770

  • 6969770 - PLUG KIT

6 7000517

  • 7000517 - VALVE CHECK

7 7000520

  • 7000520 - CONTROL

8 7010911

  • 7010911 - SEAL KIT
