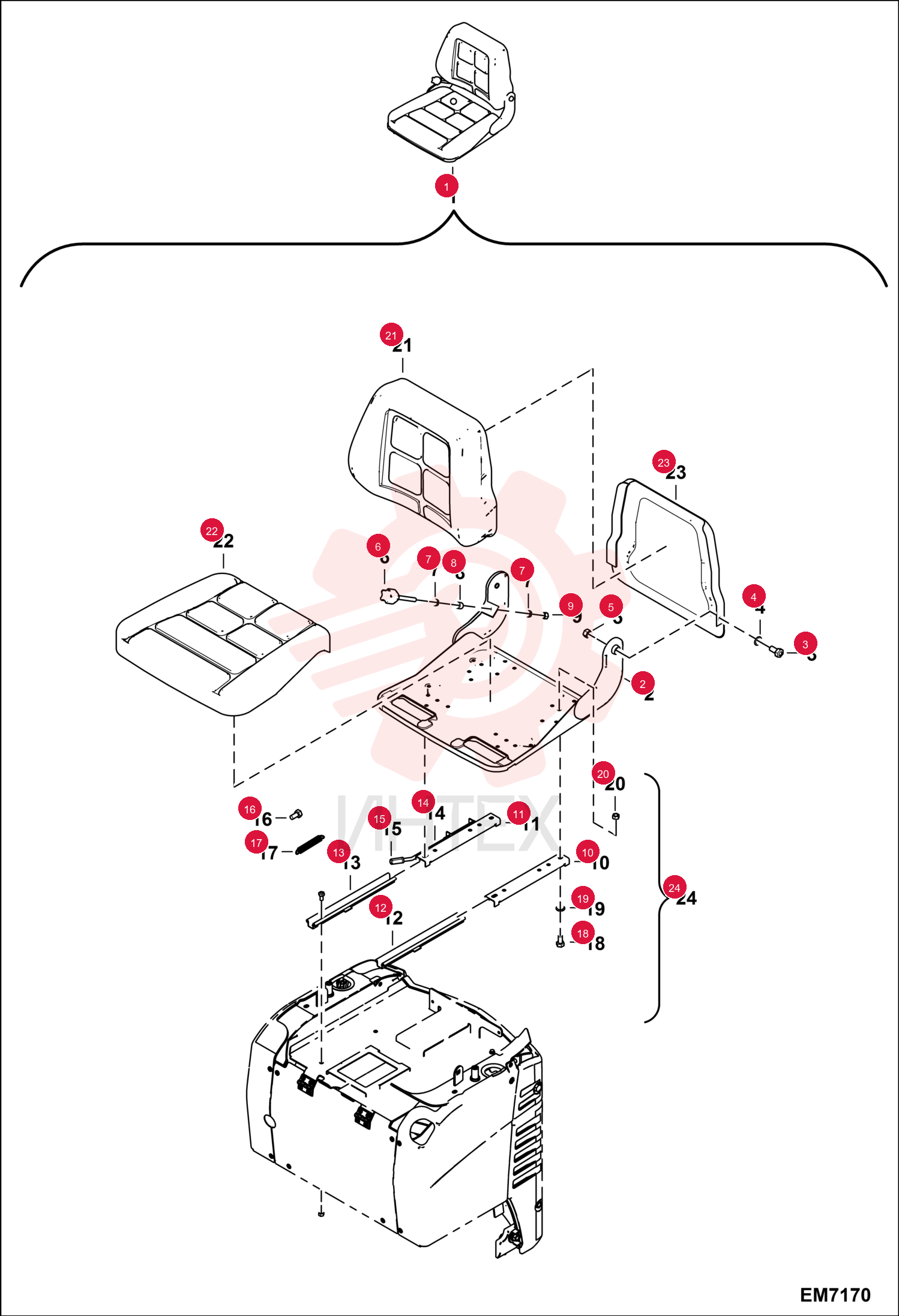

SEAT OPERATOR 7180305

SEAT OPERATOR 7180305

SEAT OPERATOR 7180305

1 7180305

  • 7180305 - SEAT OPERATOR
  • Ref. 2-24

2 7361807

  • 7361807 - SEAL VINYL
  • Ref. 2-24

3 7000789

  • 7000789 - HANDLE

4 7000804

  • 7000804 - SEAT
  • BACK

5 7000805

  • 7000805 - SEAT
  • BOTTOM

6 7000806

  • 7000806 - SLIDE MECHANISM
  • Ref. 10-20
