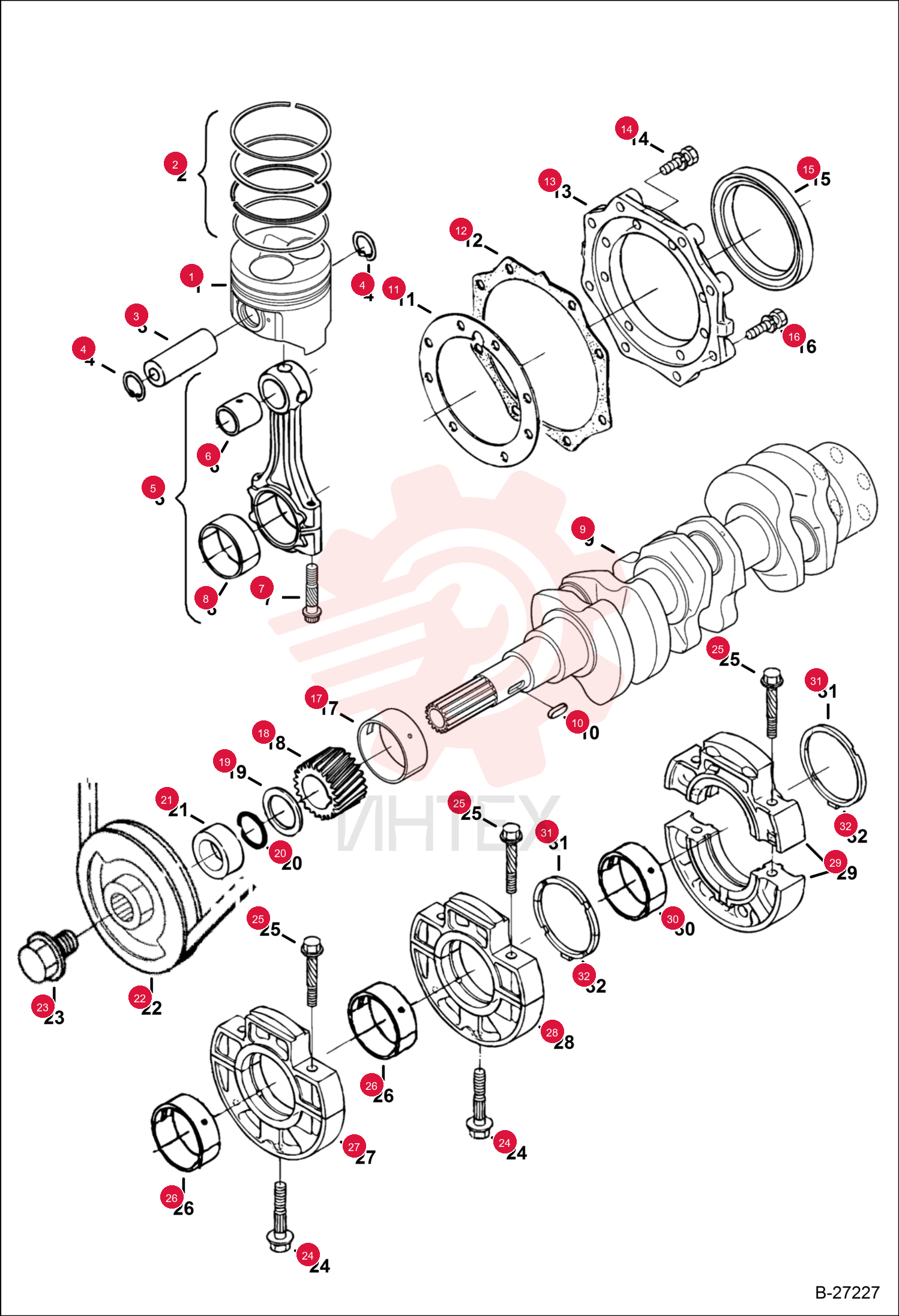

PISTON 7246749

PISTON 7246749

PISTON 7246749

1 7246749

  • 7246749 - PISTON
  • std - piston only

2 7246750

  • 7246750 - PISTON
  • +0.25 mm

3 7246752

  • 7246752 - RING PISTON ASSEMBLY
  • +0.25 mm - for 1 piston

4 7246751

  • 7246751 - LINKAGE ASSEMBLY
  • std - for 1 piston

5 6670397

  • 6670397 - PIN
  • Was 6687676

6 3974216

  • 3974216 - RING
  • Was 7246753

7 6690166

  • 6690166 - ШАТУН
  • Was 7246754

8 1685122010

  • 1685122010 - ШАТУН
  • KUBOTA

9 1685122012

  • 1685122012 - ШАТУН
  • KUBOTA

10 1685122015

  • 1685122015 - ШАТУН
  • KUBOTA

11 1685122017

  • 1685122017 - ШАТУН
  • KUBOTA

12 253438300

  • 253438300 - ШАТУН
  • CARRIER

13 6670399

  • 6670399 - BUSHING
  • Was 7246755

14 6670400

  • 6670400 - BOLT

15 6670402

  • 6670402 - ВКЛАДЫШИ ШАТУННЫЕ (-0.20mm)
  • Was 7246757

16 1586122970

  • 1586122970 - ВКЛАДЫШИ ШАТУННЫЕ (-0.20mm)
  • KUBOTA

17 1586122973

  • 1586122973 - ВКЛАДЫШИ ШАТУННЫЕ (-0.20mm)
  • KUBOTA

18 BE60061

  • BE60061 - ВКЛАДЫШИ ШАТУННЫЕ (-0.20mm)
  • AUTOWELT

19 6670403

  • 6670403 - ВКЛАДЫШИ ШАТУННЫЕ (-0.40mm)
  • Was 7246758

20 1586122980

  • 1586122980 - ВКЛАДЫШИ ШАТУННЫЕ (-0.40mm)
  • KUBOTA

21 1586122983

  • 1586122983 - ВКЛАДЫШИ ШАТУННЫЕ (-0.40mm)
  • KUBOTA

22 BE60062

  • BE60062 - ВКЛАДЫШИ ШАТУННЫЕ (-0.40mm)
  • AUTOWELT

23 6660331

  • 6660331 - BEARING
  • rod - std - Was 3974221

24 7000500

  • 7000500 - CRANKSHAFT

25 3974226

  • 3974226 - KEY

26 6670377

  • 6670377 - GASKET
  • Was 7245958

27 7000494

  • 7000494 - GASKET
  • case cover - Was 6670379

28 7000493

  • 7000493 - COVER
  • Was 6670378

29 6653584

  • 6653584 - BOLT
  • Was 4CM620

30 6687691

  • 6687691 - SEAL
  • oil

31 6653584

  • 6653584 - BOLT

32 6670406

  • 6670406 - ВКЛАДЫШИ КОРЕННЫЕ ВТУЛКА (STD)
  • BOBCAT

33 MB60050

  • MB60050 - ВКЛАДЫШИ КОРЕННЫЕ ВТУЛКА (STD)
  • AUTOWELT

34 6670407

  • 6670407 - ВКЛАДЫШИ КОРЕННЫЕ ВТУЛКА (-0.20mm)
  • BOBCAT

35 MB60051

  • MB60051 - ВКЛАДЫШИ КОРЕННЫЕ ВТУЛКА (-0.20mm)
  • AUTOWELT

36 6670408

  • 6670408 - ВКЛАДЫШИ КОРЕННЫЕ ВТУЛКА (-0.40mm) 7246761
  • BOBCAT

37 7246761

  • 7246761 - ВКЛАДЫШИ КОРЕННЫЕ ВТУЛКА (-0.40mm)
  • BOBCAT

38 MB60052

  • MB60052 - ВКЛАДЫШИ КОРЕННЫЕ ВТУЛКА (-0.40mm)
  • AUTOWELT

39 6670405

  • 6670405 - GEAR

40 6670414

  • 6670414 - SLINGER OIL

41 6683014

  • 6683014 - SEAL

42 6670413

  • 6670413 - COLLAR

43 6687739

  • 6687739 - PULLEY
  • fan drive

44 6670784

  • 6670784 - BOLT

45 6670382

  • 6670382 - BOLT
  • flange head

46 6689192

  • 6689192 - BOLT
  • bearing case

47 7247371

  • 7247371 - ВКЛАДЫШИ КОРЕННЫЕ (-0.40mm) 6670411
  • BOBCAT

48 6670411

  • 6670411 - ВКЛАДЫШИ КОРЕННЫЕ (-0.40mm)
  • BOBCAT

49 MS60102

  • MS60102 - ВКЛАДЫШИ КОРЕННЫЕ (-0.40mm)
  • AUTOWELT

50 6670410

  • 6670410 - ВКЛАДЫШИ КОРЕННЫЕ (-0.20mm)
  • BOBCAT

51 MS60101

  • MS60101 - ВКЛАДЫШИ КОРЕННЫЕ (-0.20mm)
  • AUTOWELT

52 6670409

  • 6670409 - ВКЛАДЫШИ КОРЕННЫЕ (STD)
  • BOBCAT

53 MS60100

  • MS60100 - ВКЛАДЫШИ КОРЕННЫЕ (STD)
  • AUTOWELT

54 7000472

  • 7000472 - CASE
  • BEARING ASSY
  • main brg - case halves only - Was 6687688

55 7000472

  • 7000472 - CASE
  • BEARING ASSY
  • W/Ref. 25 & 26

56 7000478

  • 7000478 - CASE
  • BEARING ASSY
  • W/Ref. 25 & 26

57 6687689

  • 6687689 - CASE
  • main brg - case halves only

58 7023260

  • 7023260 - ВКЛАДЫШИ КОРЕННЫЕ (STD) 6670412
  • BOBCAT

59 6670412

  • 6670412 - ВКЛАДЫШИ КОРЕННЫЕ (STD)
  • BOBCAT

60 1526123480

  • 1526123480 - ВКЛАДЫШИ КОРЕННЫЕ (STD)
  • KUBOTA

61 1527423480

  • 1527423480 - ВКЛАДЫШИ КОРЕННЫЕ (STD)
  • KUBOTA

62 1569423480

  • 1569423480 - ВКЛАДЫШИ КОРЕННЫЕ (STD)
  • KUBOTA

63 1686123480

  • 1686123480 - ВКЛАДЫШИ КОРЕННЫЕ (STD)
  • KUBOTA

64 MS60010

  • MS60010 - ВКЛАДЫШИ КОРЕННЫЕ (STD)
  • AUTOWELT

65 7247458

  • 7247458 - BEARING
  • ENG CRANKSHAFT
  • main (-0
  • 2mm) - Was 6687703

66 6687705

  • 6687705 - BEARING
  • main (-0
  • 4mm)

67 6513613

  • 6513613 - BEARING
  • thrust (+0.2 mm) - 1/2 thrust washer

68 6513615

  • 6513615 - BEARING
  • thrust (+0.4 mm) - 1/2 thrust washer

69 6652636

  • 6652636 - ПОЛУКОЛЬЦА УПОРНЫЕ ВЕРХНИЕ (STD)
  • BOBCAT

70 1526123530

  • 1526123530 - ПОЛУКОЛЬЦА УПОРНЫЕ ВЕРХНИЕ (STD)
  • KUBOTA

71 1526123533

  • 1526123533 - ПОЛУКОЛЬЦА УПОРНЫЕ ВЕРХНИЕ (STD)
  • KUBOTA

72 TW60040

  • TW60040 - ПОЛУКОЛЬЦА УПОРНЫЕ ВЕРХНИЕ (STD)
  • AUTOWELT

73 7000492

  • 7000492 - ПОЛУКОЛЬЦА УПОРНЫЕ НИЖНИЕ (STD) 6652637
  • BOBCAT

74 1526123540

  • 1526123540 - ПОЛУКОЛЬЦА УПОРНЫЕ НИЖНИЕ (STD)
  • KUBOTA

75 1526123543

  • 1526123543 - ПОЛУКОЛЬЦА УПОРНЫЕ НИЖНИЕ (STD)
  • KUBOTA

76 1526123544

  • 1526123544 - ПОЛУКОЛЬЦА УПОРНЫЕ НИЖНИЕ (STD)
  • KUBOTA

77 TW60050

  • TW60050 - ПОЛУКОЛЬЦА УПОРНЫЕ НИЖНИЕ (STD)
  • AUTOWELT

78 6698149

  • 6698149 - WASHER
  • THRUST SIDE
  • thrust (+0.2 mm) - 1/2 thrust washer

79 6698150

  • 6698150 - WASHER
  • THRUST SIDE
  • thrust (+0.4 mm) - 1/2 thrust washer
