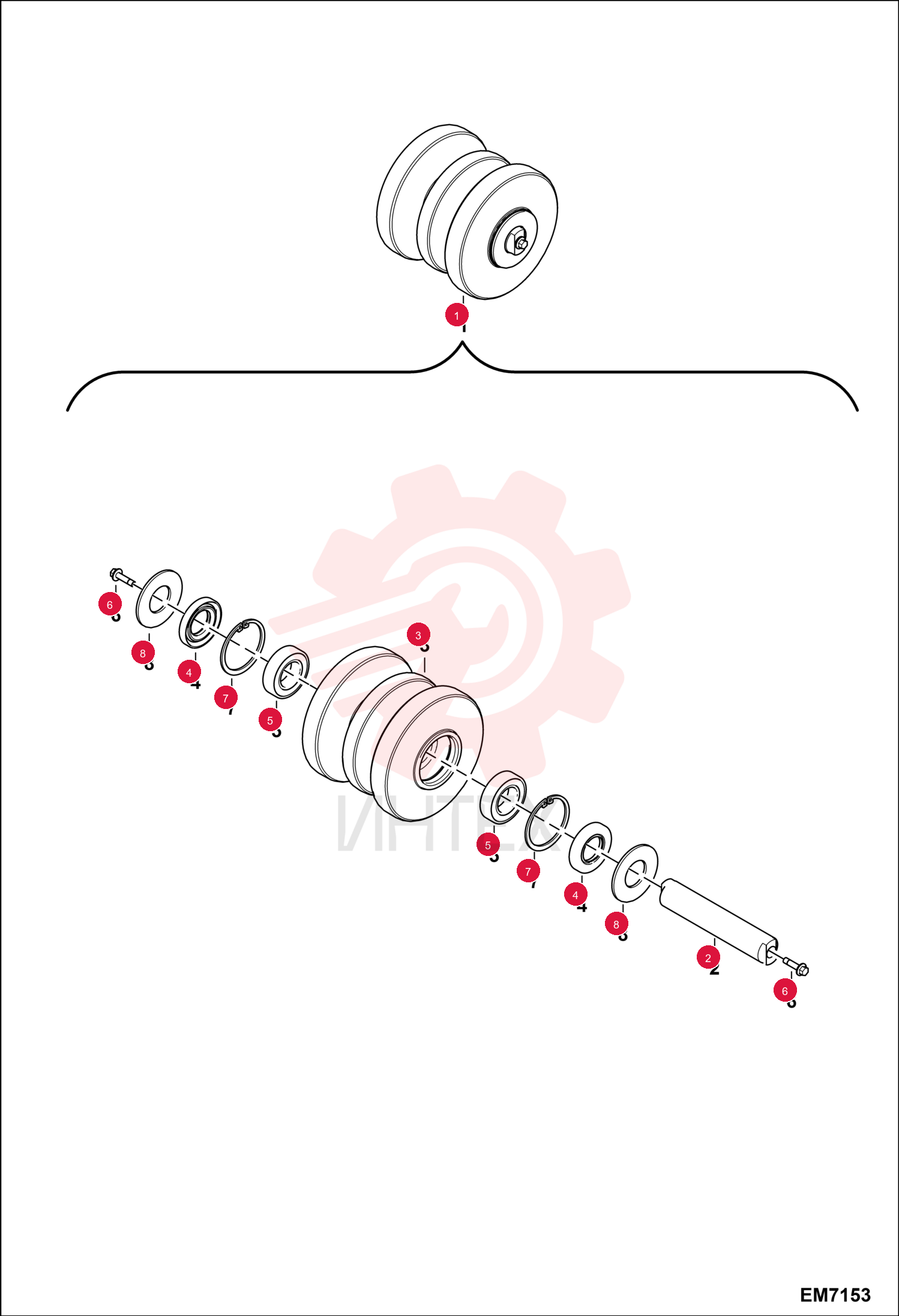

ROLLER ASSEMBLY 7165324 (2)

ROLLER ASSEMBLY 7165324 (2)

ROLLER ASSEMBLY 7165324 (2)

1 7165324

  • 7165324 - ROLLER ASSEMBLY
  • Ref. 2-8

2 7145233

  • 7145233 - SHAFT

3 7145234

  • 7145234 - ROLLER
  • MACH

4 7145235

  • 7145235 - SEAL

5 7145236

  • 7145236 - BEARING

6 59CM1040

  • 59CM1040 - SCREW HX FLNG W/T8.8

7 7JM47

  • 7JM47 - CLIP

8 6732013

  • 6732013 - WASHER THRUST
