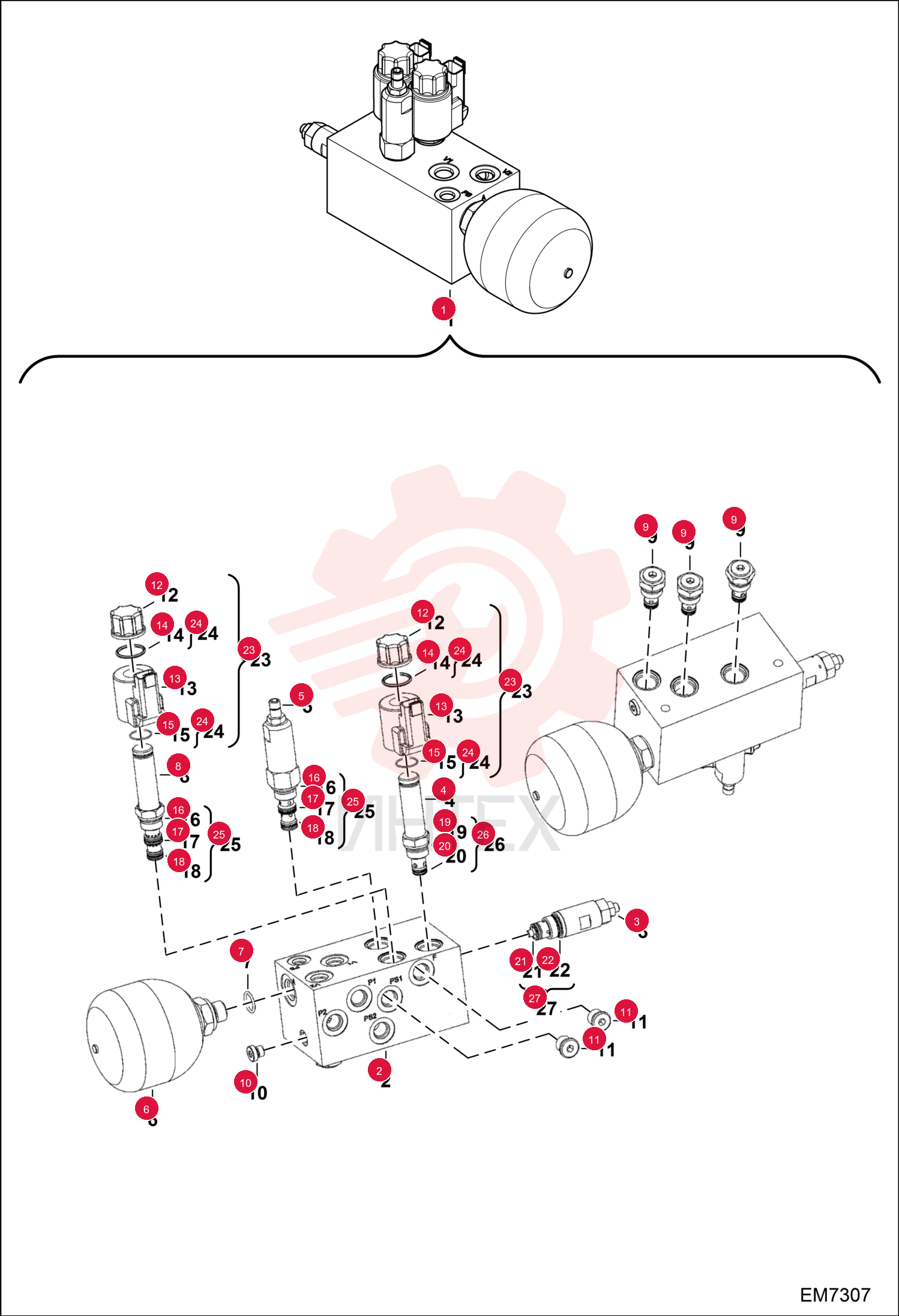

MANIFOLD 6691511

MANIFOLD 6691511

MANIFOLD 6691511

1 6691511

  • 6691511 - MANIFOLD
  • W/Ref. 2-22

2 7000556

  • 7000556 - VALVE

3 7010981

  • 7010981 - VALVE MANIFOLD
  • Was 7000557

4 7232748

  • 7232748 - VALVE
  • Was 7000559

5 7000560

  • 7000560 - ACCUMULATOR

6 7010983

  • 7010983 - VALVE
  • Was 7000561

7 7000562

  • 7000562 - VALVE

8 7000558

  • 7000558 - SOLENOID
  • W/Ref. 12-15

9 7000563

  • 7000563 - KIT
  • SEAL
  • Ref. 14-15

10 7000564

  • 7000564 - KIT
  • SEAL
  • Ref. 16-18

11 7000565

  • 7000565 - KIT
  • SEAL
  • Ref. 19-20

12 7000566

  • 7000566 - KIT
  • SEAL
  • Ref. 21-22
