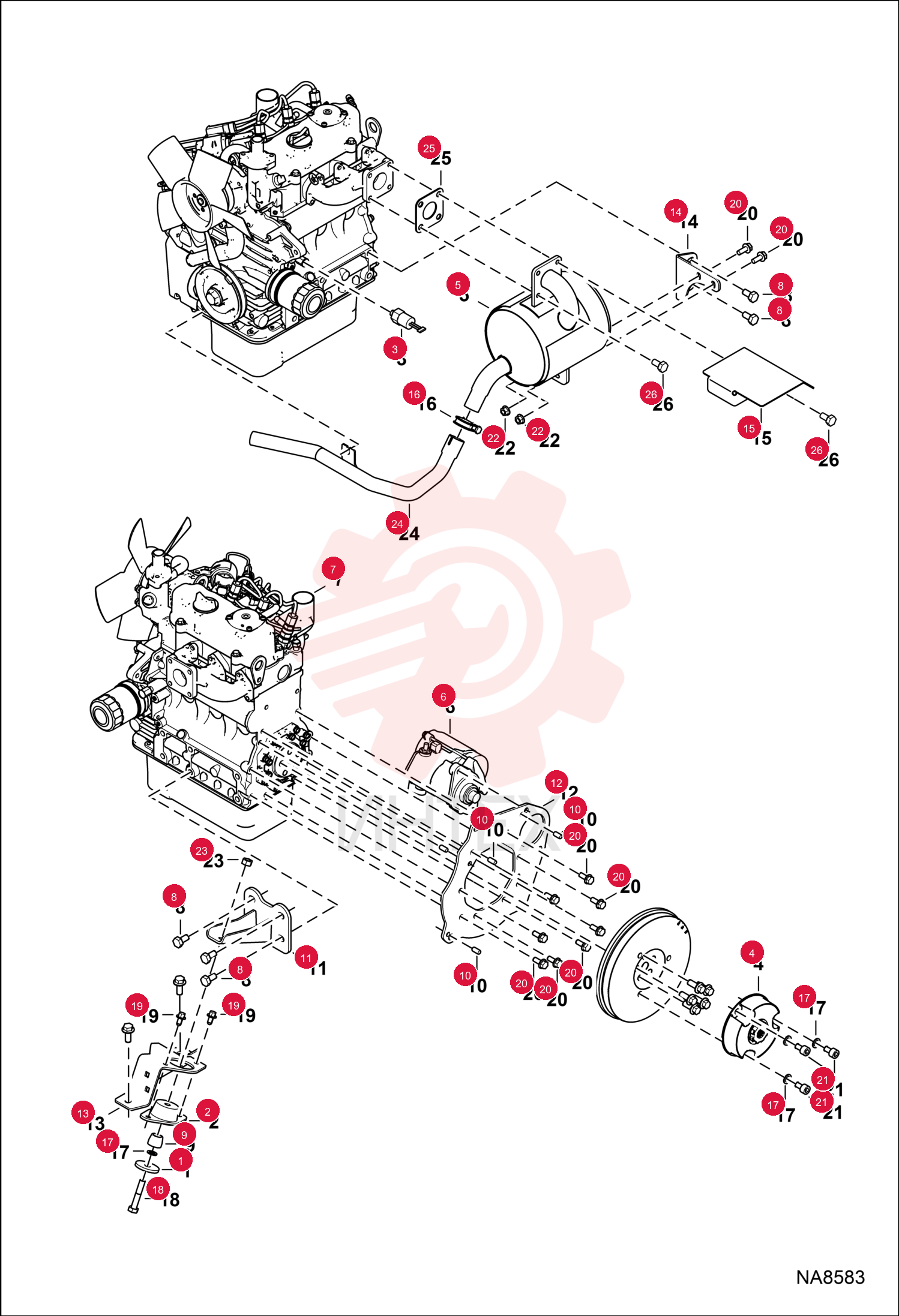

WASHER 872229 (2)

WASHER 872229 (2)

WASHER 872229 (2)

1 872229

  • 872229 - WASHER
  • - Was 0872229

2 6653764

  • 6653764 - MOUNT

3 6676053

  • 6676053 - SWITCH

4 6691068

  • 6691068 - COUPLER PUMP

5 6691283

  • 6691283 - MUFFLER SPARK ARSR

6 6691621

  • 6691621 - STARTER

7 7341580

  • 7341580 - ENGINE D722 10.2 HP EPA T4 / EU STG V

8 6733378

  • 6733378 - SCREW FL THD CAP

9 6804522

  • 6804522 - SPACER

10 7101341

  • 7101341 - PIN

11 7116317

  • 7116317 - MOUNT ASSY
  • ENGINE
  • - Was 71163117

12 7133178

  • 7133178 - BASE HOUSING

13 7134687

  • 7134687 - BRACKET ENGINE

14 7135293

  • 7135293 - SUPPORT MUFFLER

15 7148327

  • 7148327 - SHIELD

16 7152905

  • 7152905 - CLAMP EXHAUST

17 15EM100

  • 15EM100 - WASHER

18 1CM1055

  • 1CM1055 - BOLT

19 26GM8016

  • 26GM8016 - SCREW SELF TAPPING

20 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

21 3GM1016

  • 3GM1016 - SCREW HEX SOCKT 12.9

22 43DM8

  • 43DM8 - NUT FLANGED HEX

23 53DM10

  • 53DM10 - NUT HX THDLK PREAPPL

24 6693359

  • 6693359 - PIPE TAIL

25 6960259

  • 6960259 - SEAL

26 4CM822

  • 4CM822 - BOLT
