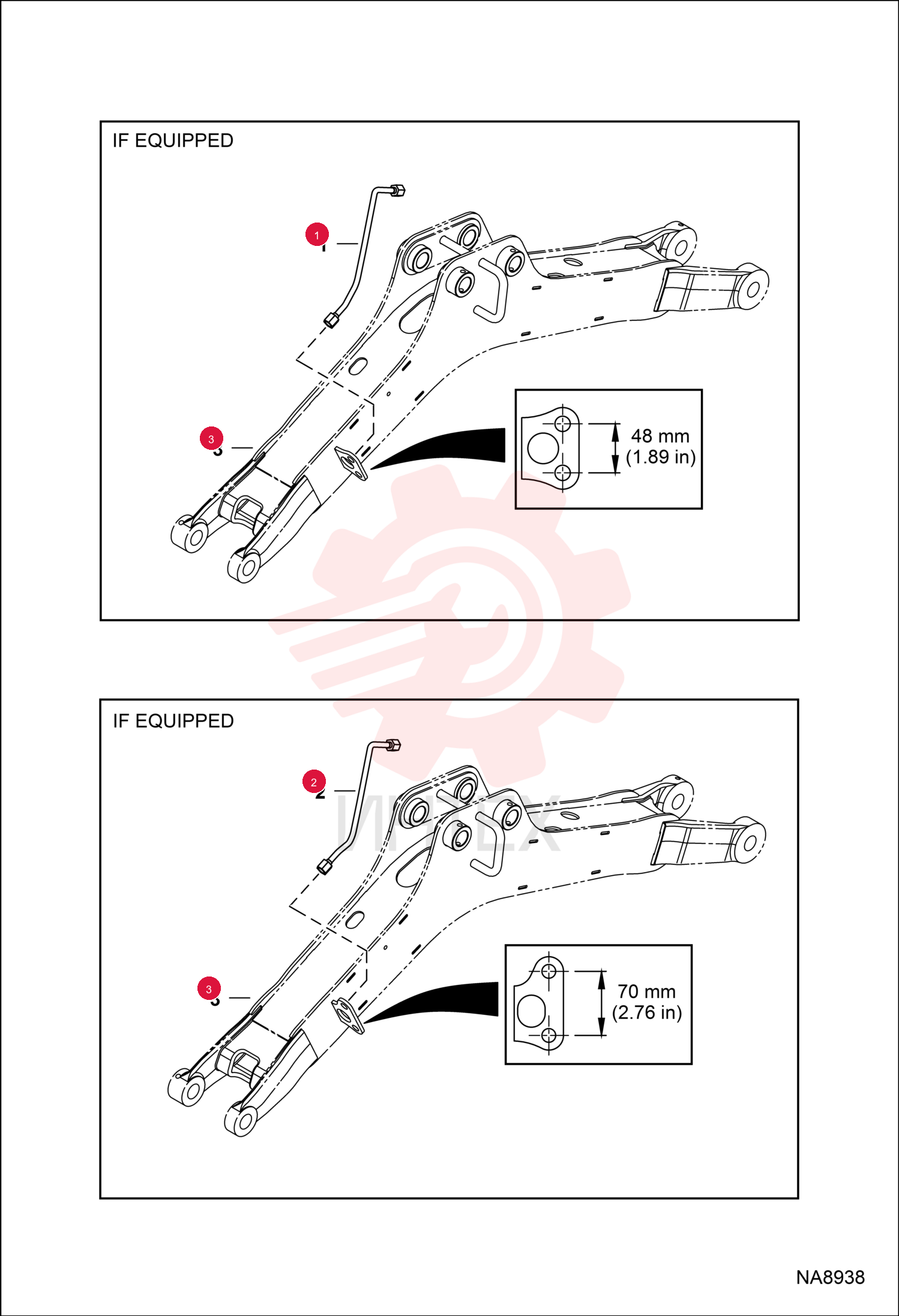

TUBELINE 7144760

TUBELINE 7144760

TUBELINE 7144760

1 7144760

  • 7144760 - TUBELINE
  • SEE DETAIL - 48
  • 0 mm (1.89") coupler spacing on boom

2 7228369

  • 7228369 - TUBELINE
  • SEE DETAIL - 70
  • 0 mm (2.76") coupler spacing on boom
