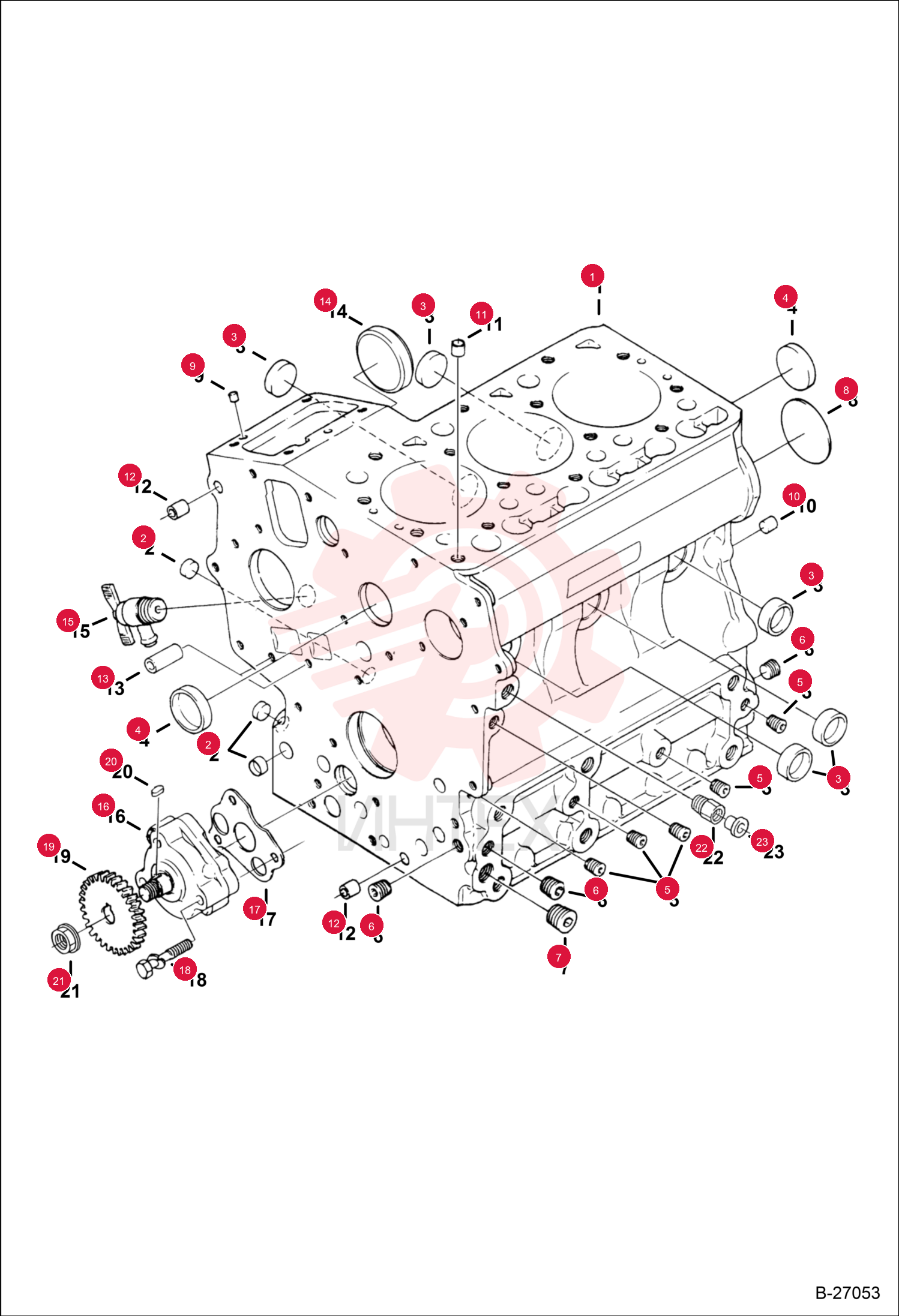

BLOCK ENGINE 7247363 (3)

BLOCK ENGINE 7247363 (3)

BLOCK ENGINE 7247363 (3)

1 7247363

  • 7247363 - BLOCK ENGINE
  • Ref. 2-13

2 6670337

  • 6670337 - PLUG

3 6670338

  • 6670338 - PLUG

4 6657431

  • 6657431 - CAP

5 6598116

  • 6598116 - PLUG

6 6652574

  • 6652574 - PLUG

7 6652575

  • 6652575 - PLUG

8 6652573

  • 6652573 - PLUG

9 6657423

  • 6657423 - PIN

10 21JM814

  • 21JM814 - PIN
  • dowel

11 3974037

  • 3974037 - PIN

12 3974039

  • 3974039 - PIN

13 6670344

  • 6670344 - PIN

14 6670339

  • 6670339 - PLUG

15 7022680

  • 7022680 - FITTING
  • DRAIN
  • Was 6657456

16 6688078

  • 6688078 - PUMP
  • Was 6670340

17 6688079

  • 6688079 - GASKET
  • Was 6670341

18 6683010

  • 6683010 - BOLT

19 7247365

  • 7247365 - GEAR
  • OIL PUMP DRIVE
  • Was 6670342

20 15JM48

  • 15JM48 - KEY

21 6670343

  • 6670343 - NUT

22 6671058

  • 6671058 - ADAPTER

23 3974399

  • 3974399 - PLUG
