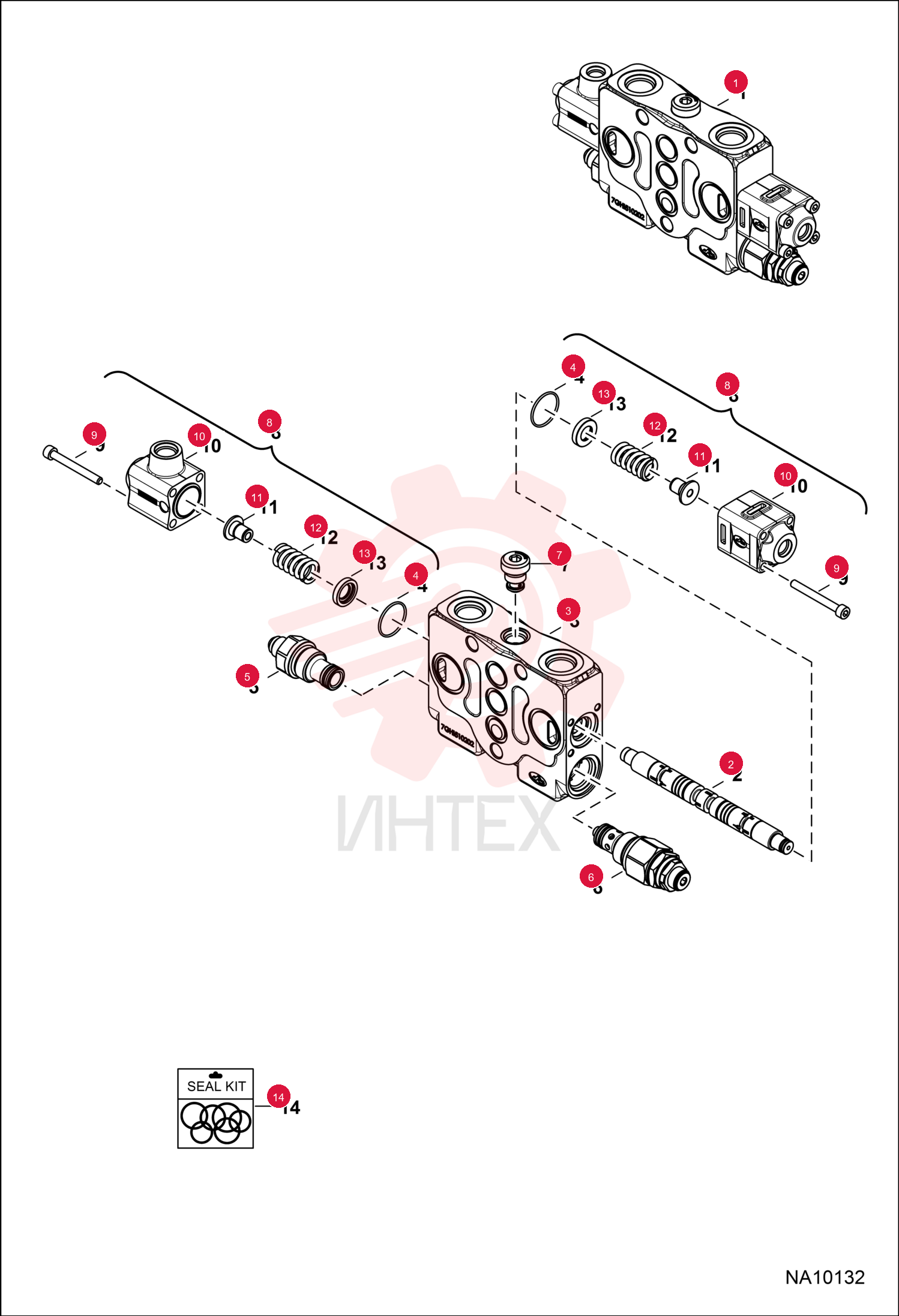

SECTION, VALVE 7259699 (1)

SECTION, VALVE 7259699 (1)

SECTION, VALVE 7259699 (1)

1 7259699

  • 7259699 - SECTION
  • VALVE
  • Ref. 2-13

2 7259684

  • 7259684 - SPOOL

3 6693130

  • 6693130 - KIT
  • W/Ref. 7

4 7259659

  • 7259659 - VALVE
  • RELIEF PORT

5 7259660

  • 7259660 - VALVE
  • RELIEF MAIN

6 6680093

  • 6680093 - PLUG ASSEMBLY
  • Was 6693130

7 6688427

  • 6688427 - KIT
  • Ref. 4
  • 9-13

8 7259661

  • 7259661 - SCREW

9 7259691

  • 7259691 - CAP
  • END

10 7015361

  • 7015361 - BUSHING

11 7015362

  • 7015362 - SPRING

12 7015363

  • 7015363 - BUSHING

13 7259708

  • 7259708 - KIT
  • SEAL
