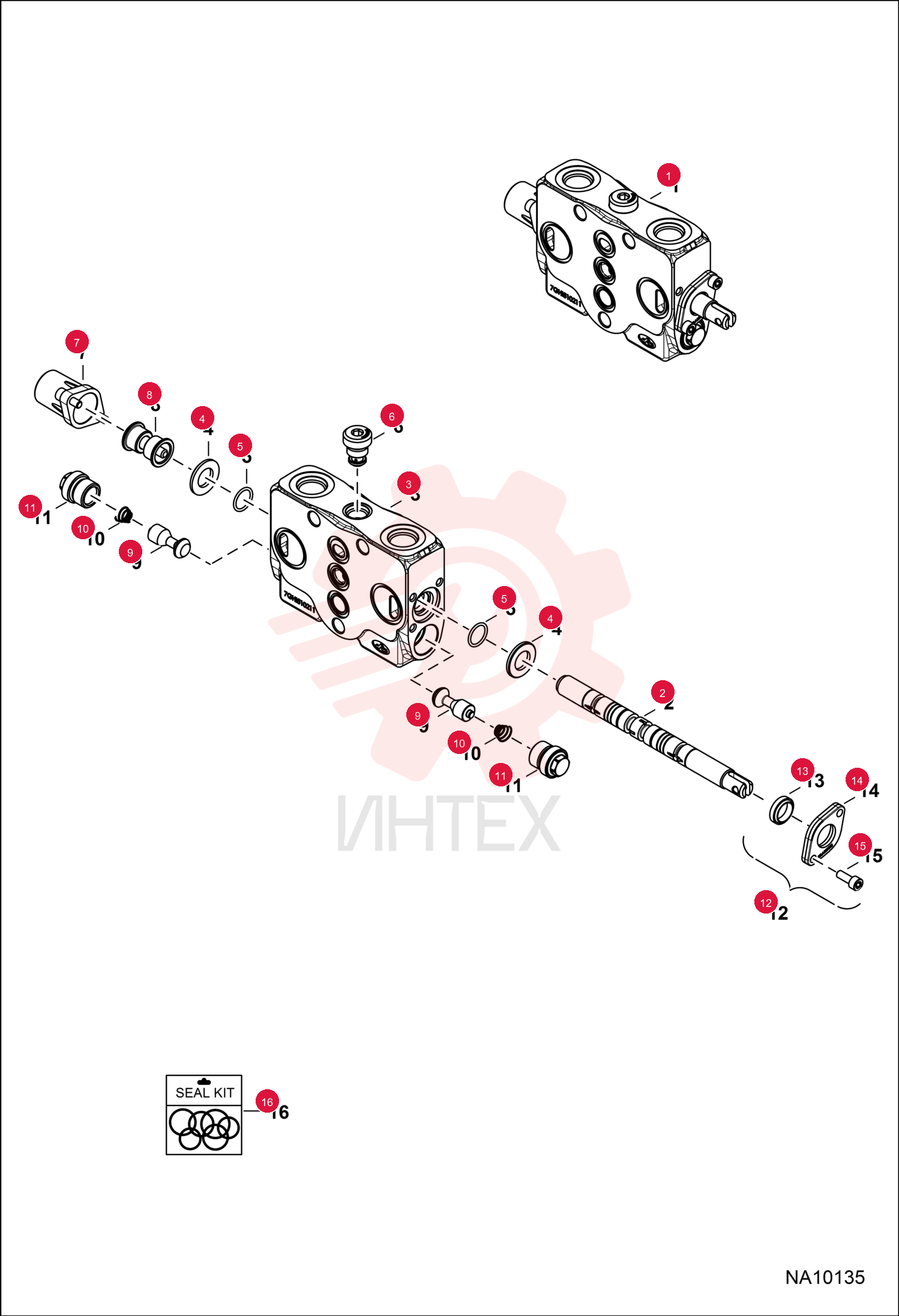

SECTION, VALVE 7259694 (2)

SECTION, VALVE 7259694 (2)

SECTION, VALVE 7259694 (2)

1 7259694

  • 7259694 - SECTION
  • VALVE
  • Ref. 2-15

2 7259688

  • 7259688 - SPOOL

3 6693128

  • 6693128 - KIT
  • Was 7259682

4 6680095

  • 6680095 - WASHER

5 6680094

  • 6680094 - O-RING

6 6680092

  • 6680092 - VALVE
  • LOCK LOAD

7 6679496

  • 6679496 - END CAP

8 7015356

  • 7015356 - SPRING ASSEMBLY

9 7015358

  • 7015358 - SPOOL

10 7015357

  • 7015357 - SPRING

11 6686241

  • 6686241 - PLUG

12 6680097

  • 6680097 - COVER
  • END
  • Ref. 13-15

13 6679912

  • 6679912 - SEAL

14 6679911

  • 6679911 - FLANGE

15 6680071

  • 6680071 - SCREW

16 7259703

  • 7259703 - KIT
  • SEAL
