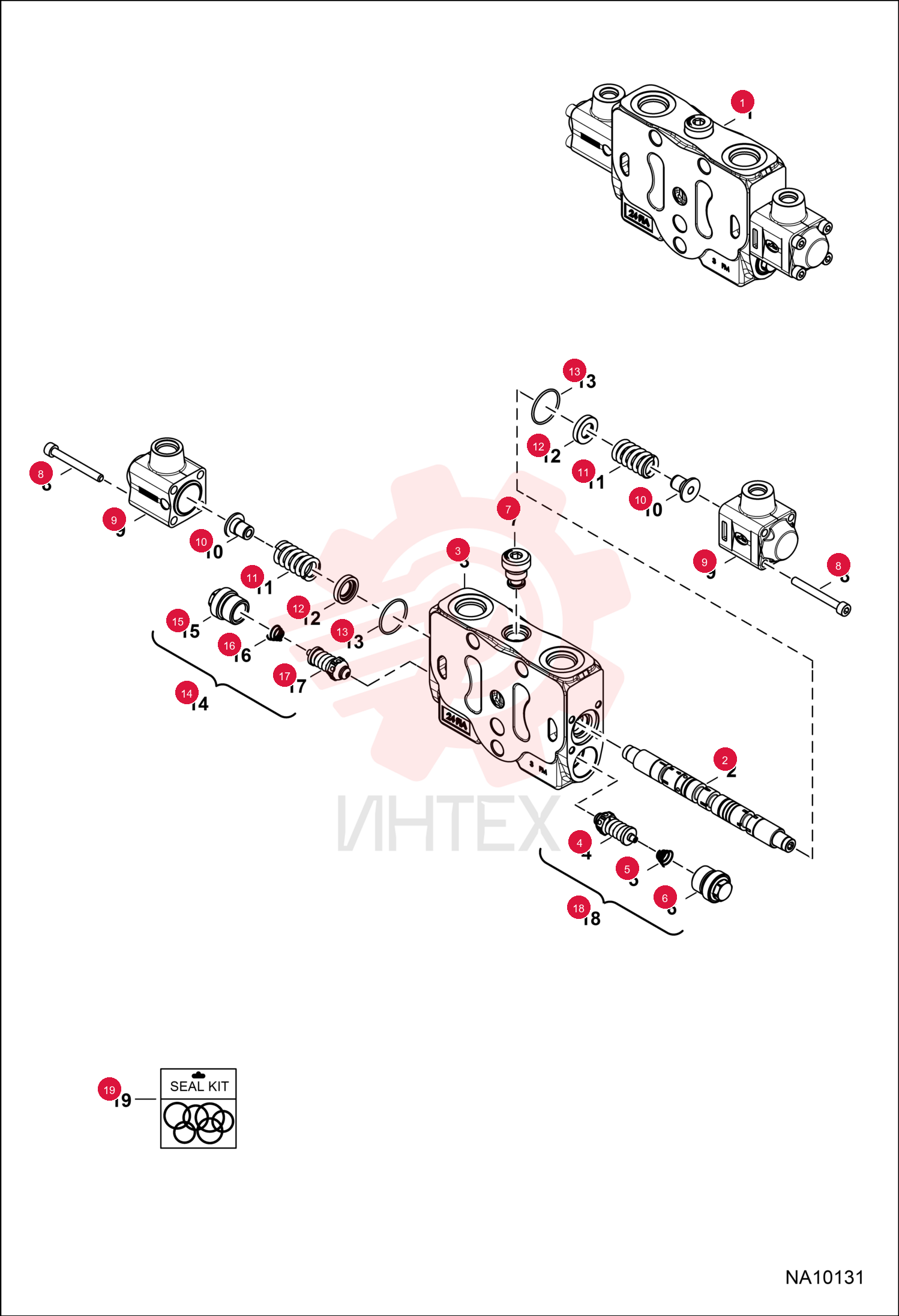

SECTION, VALVE 7259697

SECTION, VALVE 7259697

SECTION, VALVE 7259697

1 7259697

  • 7259697 - SECTION
  • VALVE
  • Ref. 2-17

2 7259683

  • 7259683 - SPOOL

3 6693132

  • 6693132 - KIT
  • Was 7259677

4 7015369

  • 7015369 - SPOOL

5 7015357

  • 7015357 - SPRING

6 6686241

  • 6686241 - PLUG

7 6680092

  • 6680092 - VALVE
  • LOCK LOAD

8 7259661

  • 7259661 - SCREW

9 7259690

  • 7259690 - CAP
  • END

10 7015361

  • 7015361 - BUSHING

11 7015362

  • 7015362 - SPRING

12 7015363

  • 7015363 - BUSHING

13 6693137

  • 6693137 - KIT
  • VALVE
  • Ref. 15-17

14 6686241

  • 6686241 - PLUG

15 7015357

  • 7015357 - SPRING

16 7015364

  • 7015364 - SPOOL

17 6693136

  • 6693136 - KIT
  • VALVE
  • Ref. 4-6

18 7015370

  • 7015370 - KIT
  • SEAL
