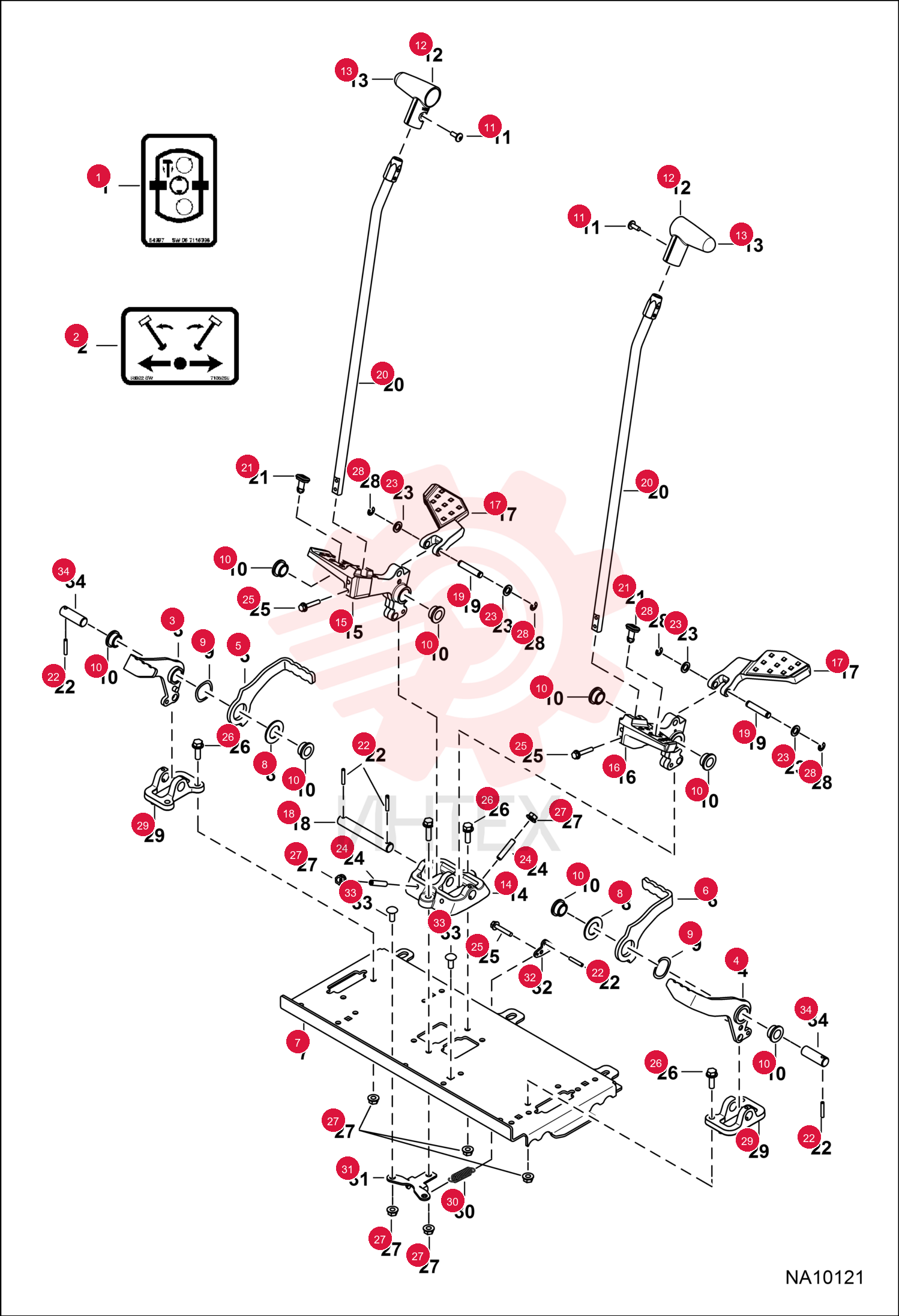

DECAL VALVE 7115386 (1)

DECAL VALVE 7115386 (1)

DECAL VALVE 7115386 (1)

1 7115386

  • 7115386 - DECAL VALVE

2 7135250

  • 7135250 - DECAL

3 7217931

  • 7217931 - PEDAL ASSEMBLY

4 7217936

  • 7217936 - PEDAL
  • AUX

5 7217941

  • 7217941 - PEDAL
  • OFFSET

6 7217942

  • 7217942 - PEDAL
  • AUX

7 7276849

  • 7276849 - PLATE
  • FLOOR
  • manual controls - Was 7217950

8 7234359

  • 7234359 - WASHER

9 7234360

  • 7234360 - WASHER
  • WAVE

10 7241974

  • 7241974 - BUSHING

11 6803202

  • 6803202 - SCREW

12 7163788

  • 7163788 - HANDLE
  • LEVER CONTROL
  • W/Ref. 13 - Was 7153776

13 7163787

  • 7163787 - PLUG

14 7228829

  • 7228829 - MOUNT

15 7233974

  • 7233974 - PEDAL
  • RH

16 7233976

  • 7233976 - PEDAL
  • LH

17 7233978

  • 7233978 - PEDAL
  • BACK

18 7240975

  • 7240975 - SHAFT
  • PEDAL

19 7240977

  • 7240977 - SHAFT
  • PEDAL

20 7240978

  • 7240978 - LEVER
  • CONTROL

21 7243677

  • 7243677 - GROMMET

22 7274126

  • 7274126 - PIN
  • ROLL
  • Was 7248060

23 15EM100

  • 15EM100 - WASHER

24 15GM840

  • 15GM840 - SCREW
  • SET

25 29CM635

  • 29CM635 - BOLT

26 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

27 43DM8

  • 43DM8 - NUT FLANGED HEX

28 9JM70

  • 9JM70 - RETAINER SHAFT

29 7243673

  • 7243673 - MOUNT
  • PEDAL

30 7217943

  • 7217943 - SPRING

31 7217947

  • 7217947 - HOLDER
  • SPRING

32 7260123

  • 7260123 - BRACKET

33 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8

34 7240976

  • 7240976 - SHAFT
  • PEDAL
